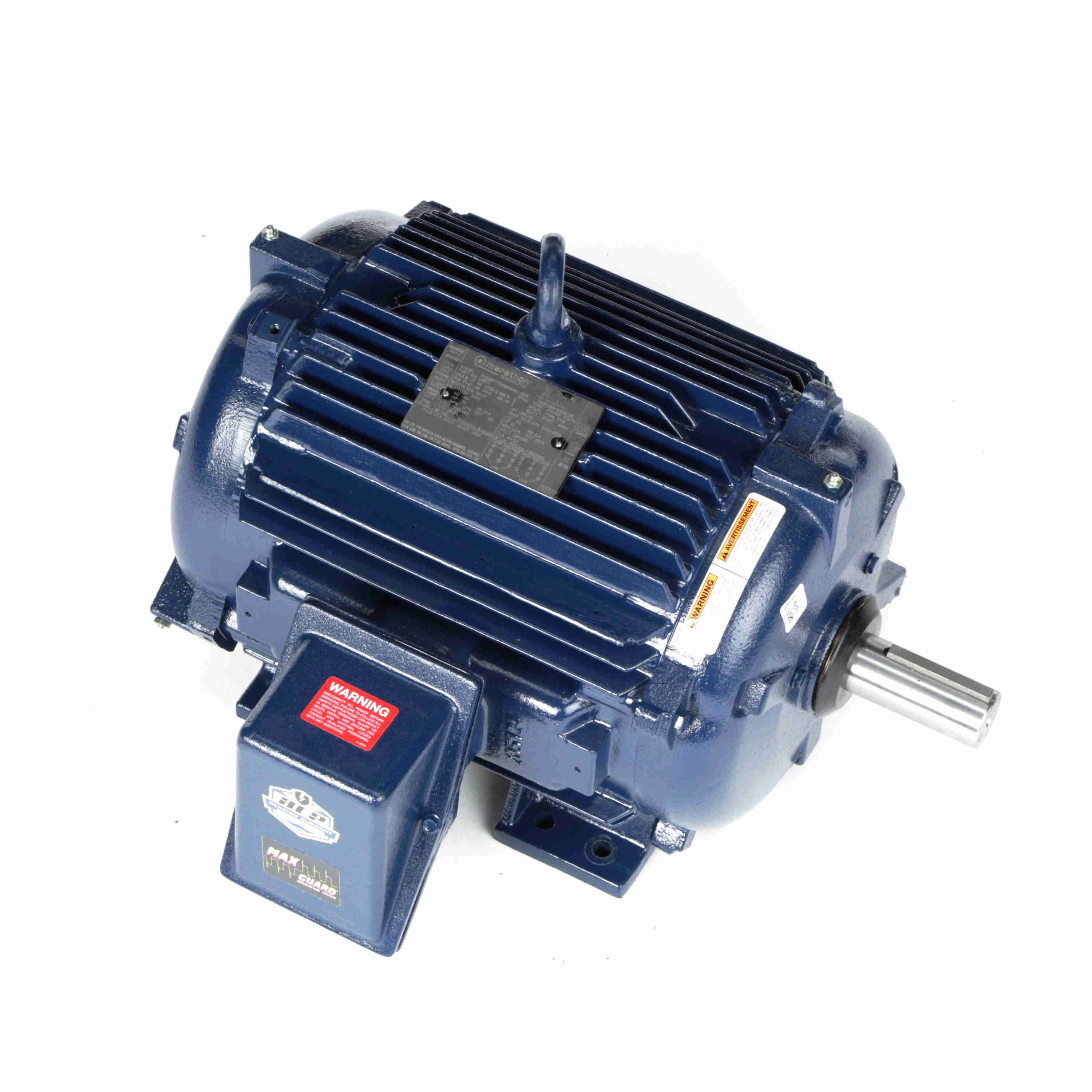

MARATHON MOTORS 256TTTCD16544 Cooling Tower Motor, F1 Conduit Box Position, 20 Hp, 1, 775 Nameplate Rpm | CT2FPR 49WN26

MARATHON MOTORS 256TTTCD16544 U1872A / 256TTTCD16544AA Cooling Tower Motor, 20/15 HP, 3 Phase, 60/50 Hz, 230/460 and 190/380V, 1800 and 1500 RPM

Item: CT2FPRModel: 256TTTCD16544Cross Ref: 49WN26 / U1872A / 256TTTCD16544AA
Check Availability
In Stock

Get it by Friday, Aug 28

€6,640.32 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Cooling Tower Motor
Ambient Temp. 40°C
Amps 22.3/24.2/44.5/48.5A
Assembly/box Mounting F1, F2
Bearing Type Ball
Bearings Ball
Cc Number CC003A
Conduit Box Position F1
Design Code B
Drive End Bearing Size 6309
Drive End Bearing Type Ball
Duty Continuous Duty
Efficiency 93%, 92.7%
Electrical Type Squirrel Cage Inverter Rated
Enclosure Type Teao
Finish Epoxy Coating
Frame 256TV
Frame Material Cast Iron
Frame Size 256TV
Frequency 50/60 Hz , 60 Hz
Full Load Amps 48/24.1A
Hp 20 hp, 20 hp, 15 hp
Ins. Class Class F
Insulation Class Class H
Inverter Load 1
Ip Rating IP56
Kva Code G
Length Less Shaft 18 3/8"
Max. Ambient Temp. 40°C
Motor Application Cooling Tower
Motor Bearings Ball
Motor Design 3-Phase
Motor Enclosure Design Totally Enclosed Air Over
Motor Frame Material Cast Iron
Motor Mounting Position All Angle
Motor Mounting Type Rigid Base
Motor Orientation Horizontal, Up, Down
Motor Service Factor 1.15
Motor Shaft Design Keyed
Motor Shaft Rotation Clockwise, Counter Clockwise
Motor Shaft Rotation CW, CCW
Motor Thermal Protection None
Motor Type Three Phase
Mounting Type Rigid Base
Nameplate Speed 1775 RPM
No. Of Poles 4
No. Of Speed 1
No. Of Speeds 1
Nominal Efficiency 94.5%
Opp Drive End Bearing Ball
Opp Drive End Bearing Size 6209
Output Kw 14.9/11.2 kW
Overall Length 22 3/8"
Phase 3
Power Factor 83.5
Resistance 0.513 ohms
Rotation Reversible
Service Factor 1.15
Shaft Dia. 1.625"
Shaft Length 4"
Shaft Type T
Speed 1768/1472 RPM
Starting Method Line, Inverter
Thermal Protection None
Usable @ 200v No
Usable @ 208v No
Voltage 190/230/380/460V

Shipping Info:

Ship weight (kg) 160.65
Ship height (cm)50.8
Ship length (cm)71.12
Ship width (cm)60.96
Country of OriginMX

Product Variants

ProductModelVoltageHpFrequencyFull Load AmpsFrameShaft Dia.Shaft LengthOverall LengthPrice

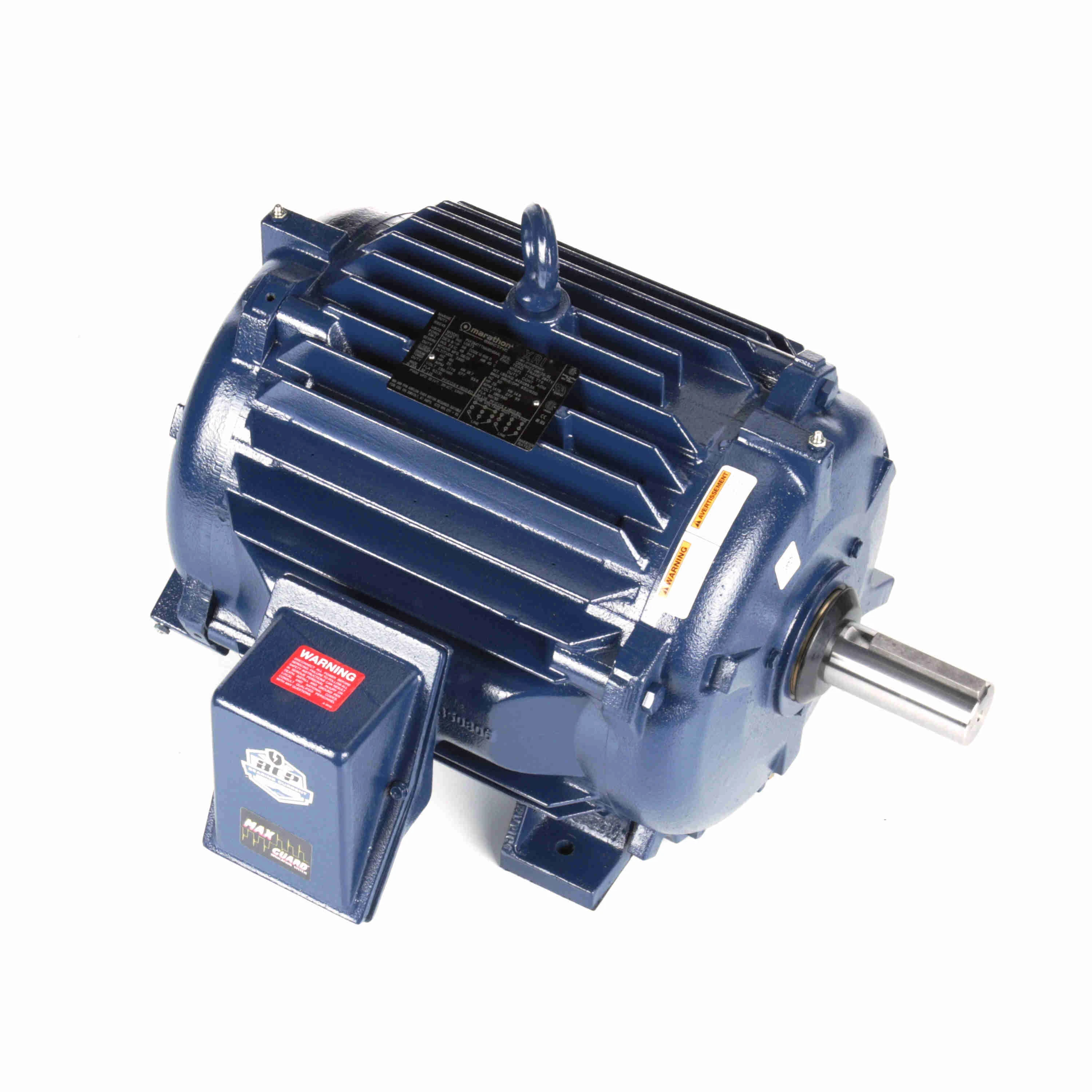

MARATHON MOTORS 284TTTCD16540 Cooling Tower Motor, F1 Conduit Box Position, 25 Hp, 1, 775 Nameplate Rpm | CT2FPT 49WN27 284TTTCD16540190/230/380/460V25 hp, 20 hp60 Hz62/31A284TV1.875"4 5/8"23 7/16"€5,487.08

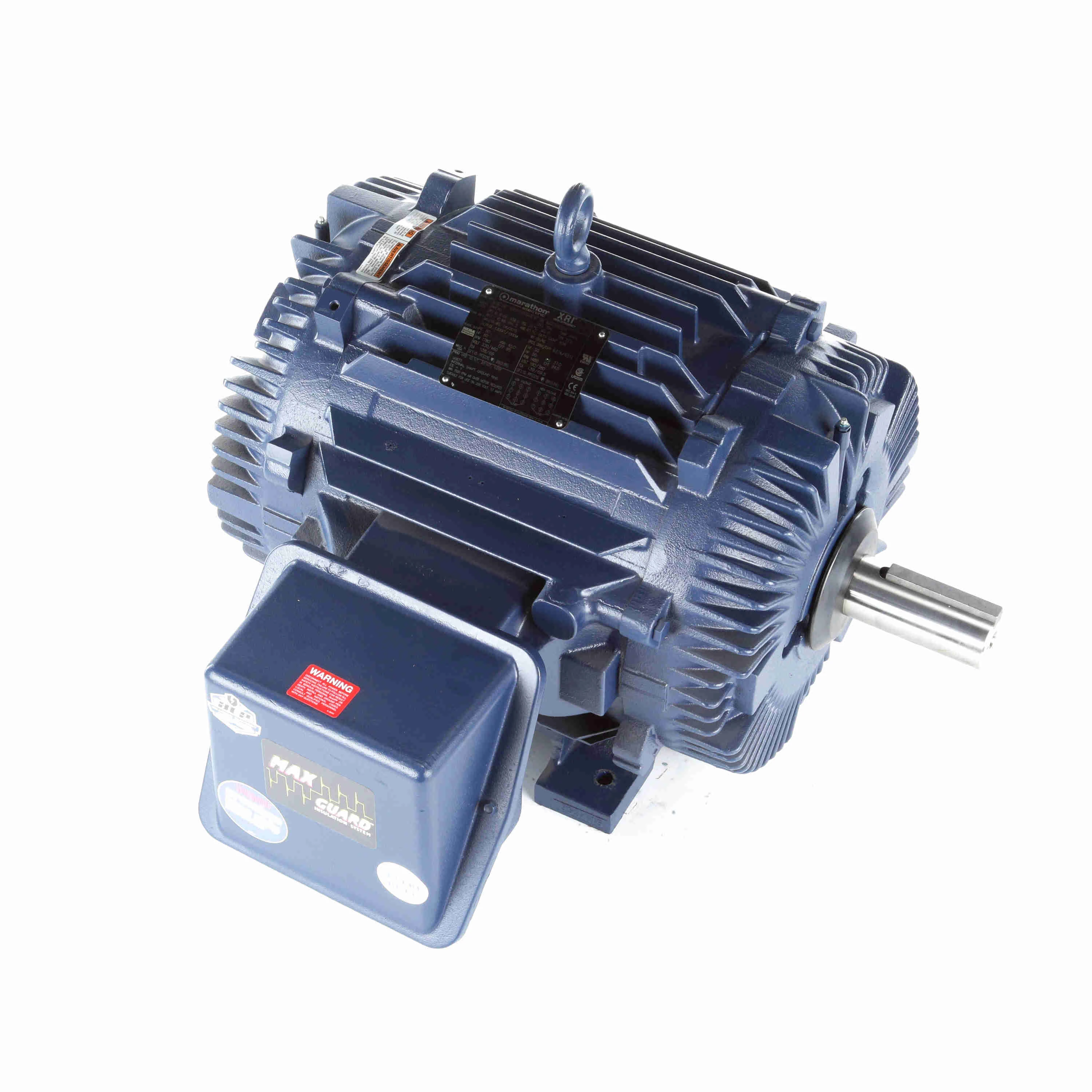

MARATHON MOTORS 364TTTCD16534 Cooling Tower Motor, F1 Conduit Box Position, 60 Hp, 1, 780 Nameplate Rpm | CT2FPU 49WN31 364TTTCD16534190/230/380/460V60 hp, 50 hp60 Hz138/69A364TV2 3/8"5 7/8"29 5/8"€14,259.67
MARATHON MOTORS 254TTTCD16545 Cooling Tower Motor, F1 Conduit Box Position, 15 Hp, 1, 775 Nameplate Rpm | CT2FPW 49WN25 254TTTCD16545190/230/380/460V15 hp, 15 hp, 10 hp60 Hz37.5/18.8A254TV1.625"4"20 5/8"€3,762.06

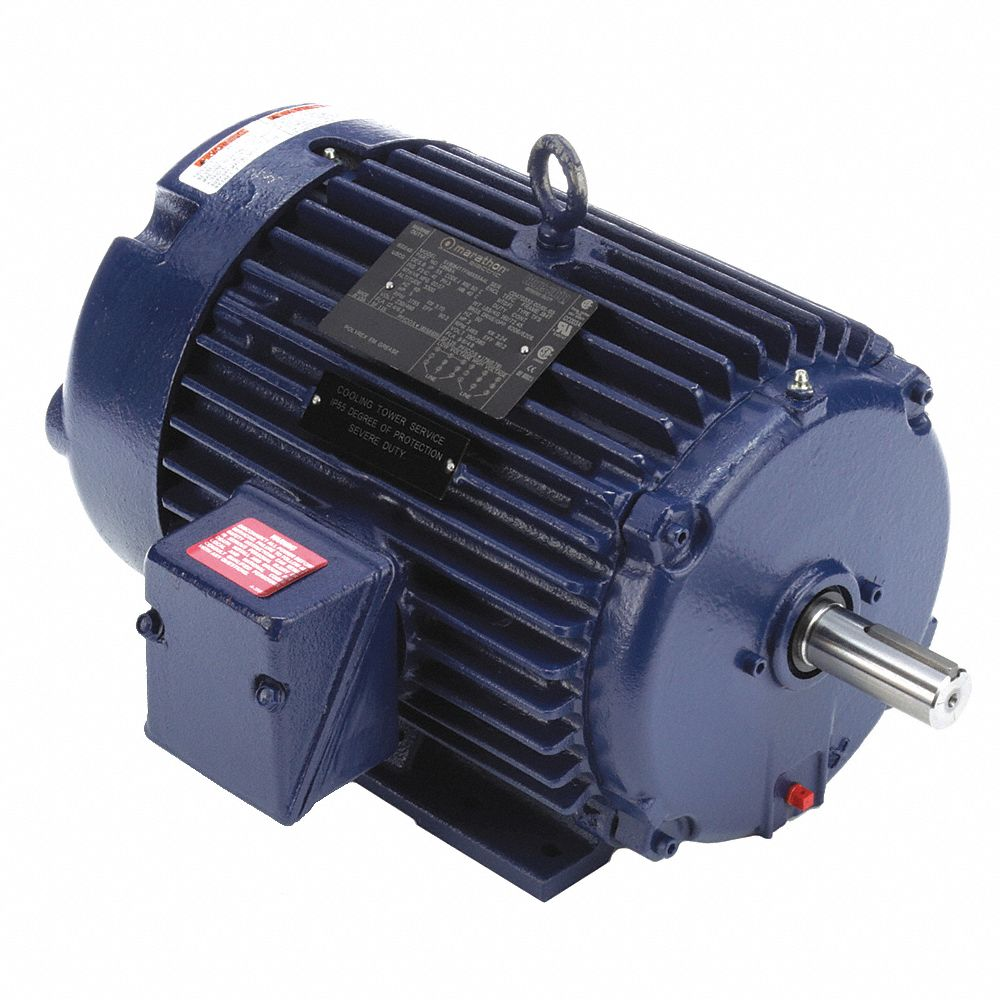

184TTFCD6555230/460V AC5 hp60/50 Hz12.4/6.2A184T1 1/8"2 7/8"17 7/8"€1,616.62

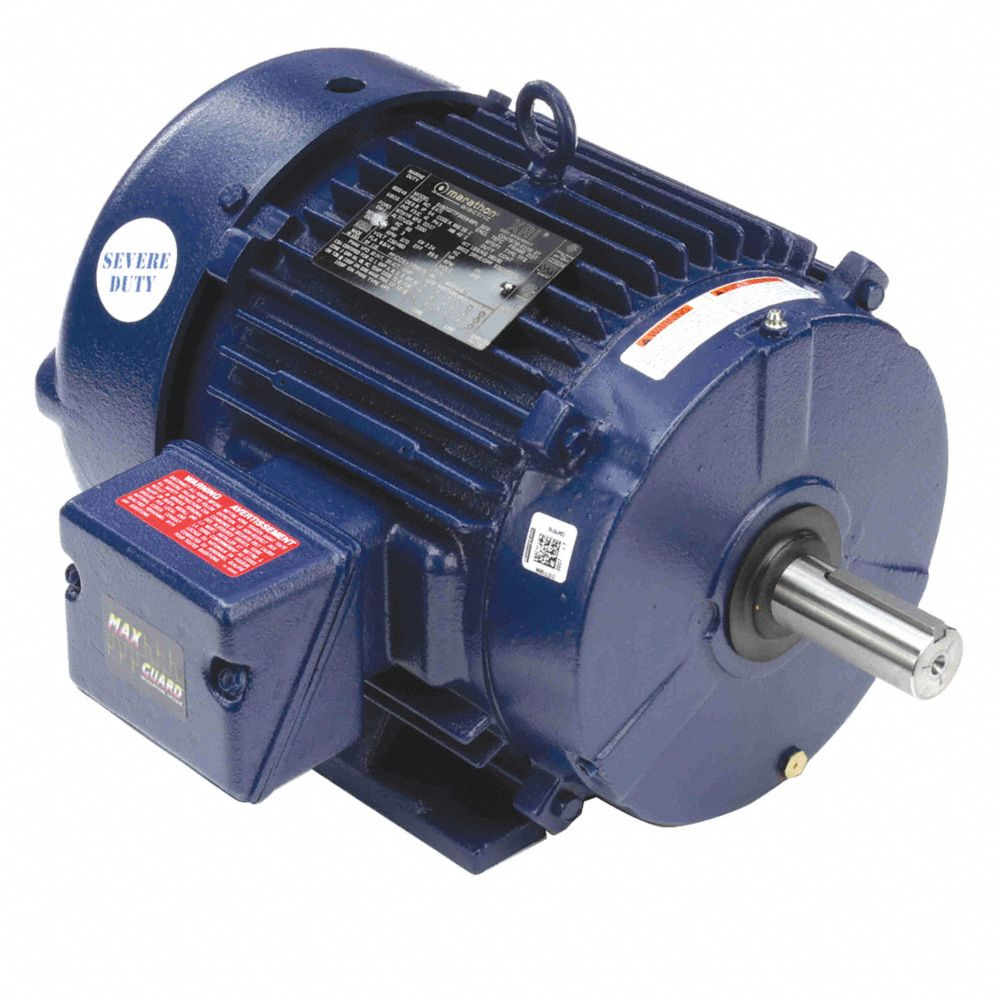

215TTFCD6546230/460V AC10 hp60/50 Hz26.6/13.3A215T1 3/8"3 1/2"22 5/8"€2,797.76
