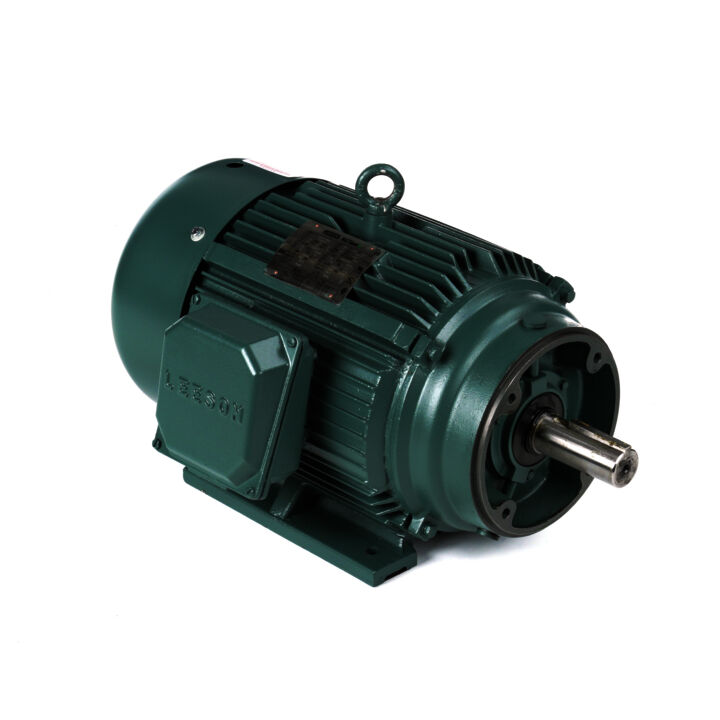

MARATHON MOTORS 254TTTCD16545 U1871A / 254TTTCD16545AA Cooling Tower Motor, 15/10 HP, 3 Phase, 60/50 Hz, 230/460 and 190/380V, 1800 and 1500 RPM
Item: CT2FPWModel: 254TTTCD16545Cross Ref: 49WN25 / U1871A / 254TTTCD16545AA
In Stock
Get it by Friday, Aug 28
€3,762.06 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Cooling Tower Motor |
| Ambient Temp. | 40°C |
| Amps | 15.4/18.8/31/37.5A |
| Assembly/box Mounting | F1, F2 |
| Bearing Type | Ball |
| Cc Number | CC003A |
| Conduit Box Position | F1 |
| Design Code | B |
| Drive End Bearing Size | 6309 |
| Drive End Bearing Type | Ball |
| Duty | Continuous Duty |
| Efficiency | 92.4%, 92.5% |
| Electrical Type | Squirrel Cage Inverter Rated |
| Enclosure Type | Teao |
| Finish | Epoxy Coating |
| Frame | 254TV |
| Frame Material | Cast Iron |
| Frame Size | 254TV |
| Frequency | 50/60 Hz , 60 Hz |
| Full Load Amps | 37.5/18.8A |
| Hp | 15 hp, 15 hp, 10 hp |
| Ins. Class | Class F |
| Insulation Class | Class H |
| Inverter Load | 1 |
| Ip Rating | IP56 |
| Kva Code | G |
| Length Less Shaft | 16 5/8" |
| Max. Ambient Temp. | 40°C |
| Motor Application | Cooling Tower |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Air Over |
| Motor Frame Material | Cast Iron |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Rigid Base |
| Motor Orientation | Horizontal, Up, Down |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise, Counter Clockwise |
| Motor Shaft Rotation | CW, CCW |
| Motor Thermal Protection | None |
| Motor Type | Three Phase |
| Mounting Type | Rigid Base |
| Nameplate Speed | 1775 RPM |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Nominal Efficiency | 92.4% |
| Opp Drive End Bearing | Ball |
| Opp Drive End Bearing Size | 6209 |
| Output Kw | 11.2/7.5 kW |
| Overall Length | 20 5/8" |
| Phase | 3 |
| Power Factor | 82 |
| Resistance | 0.6738 ohms |
| Rotation | Reversible |
| Service Factor | 1.15 |
| Shaft Dia. | 1.625" |
| Shaft Length | 4" |
| Shaft Type | T |
| Speed | 1772/1475 RPM |
| Starting Method | Line, Inverter |
| Thermal Protection | None |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 190/230/380/460V |
Shipping Info:
| Ship weight (kg) | 148.95 |
| Ship height (cm) | 50.8 |
| Ship length (cm) | 63.5 |
| Ship width (cm) | 60.96 |
| Country of Origin | MX |
Product Variants
| Product | Model | Voltage | Hp | Frequency | Full Load Amps | Frame | Shaft Dia. | Shaft Length | Overall Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

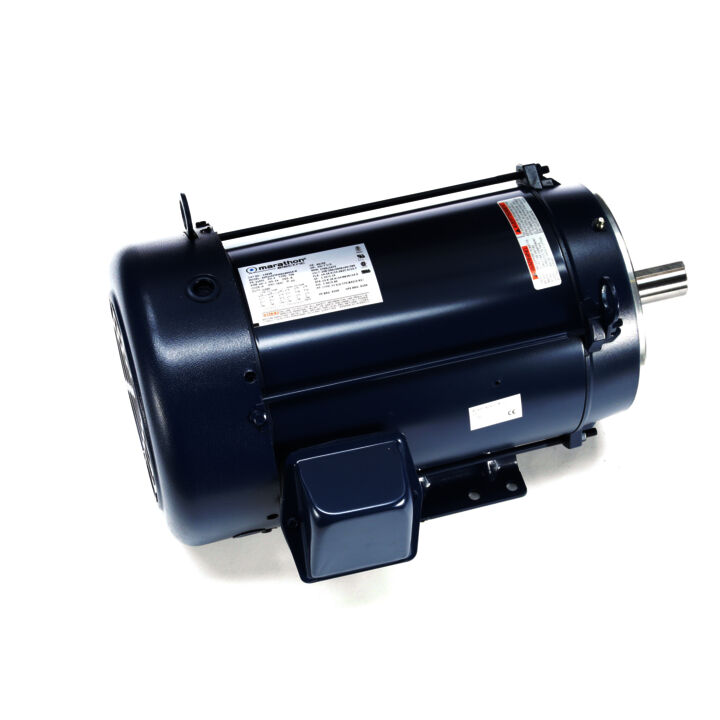

256TTTCD16544 | 190/230/380/460V | 20 hp, 20 hp, 15 hp | 60 Hz | 48/24.1A | 256TV | 1.625" | 4" | 22 3/8" | €6,640.32 | |
 |

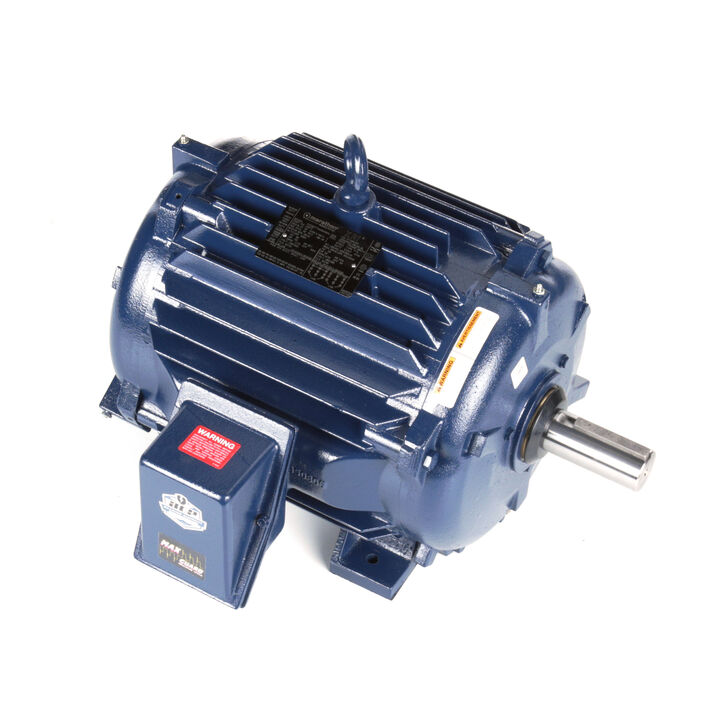

284TTTCD16540 | 190/230/380/460V | 25 hp, 20 hp | 60 Hz | 62/31A | 284TV | 1.875" | 4 5/8" | 23 7/16" | €5,487.08 | |
 |

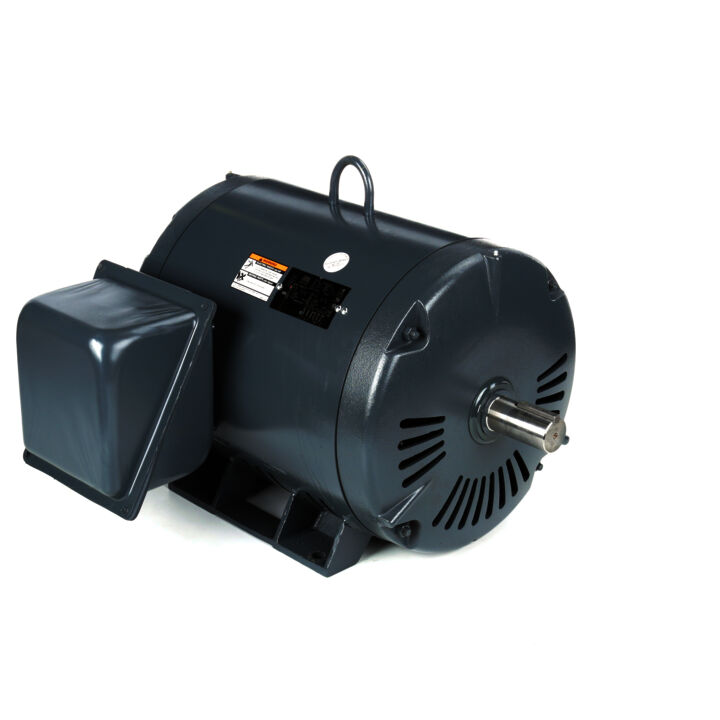

364TTTCD16534 | 190/230/380/460V | 60 hp, 50 hp | 60 Hz | 138/69A | 364TV | 2 3/8" | 5 7/8" | 29 5/8" | €14,259.67 | |
 |

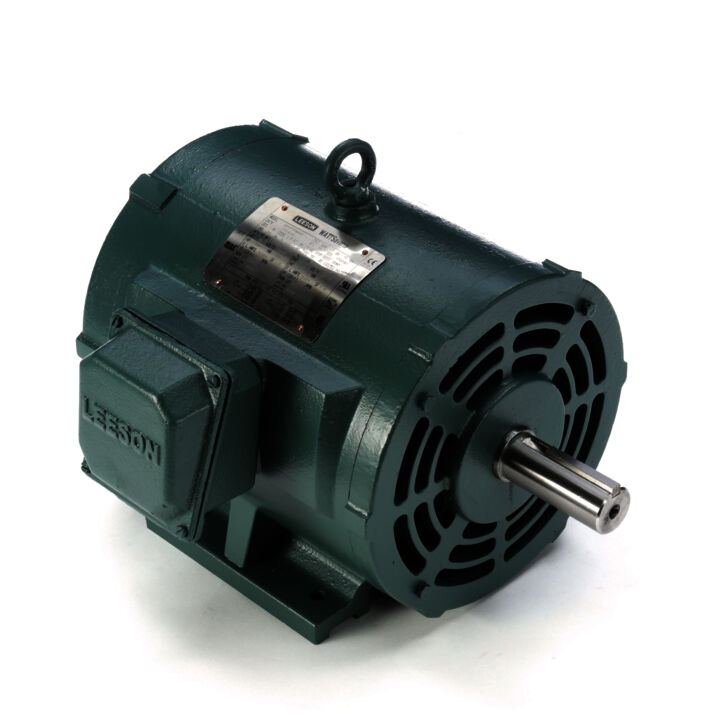

184TTFCD6555 | 230/460V AC | 5 hp | 60/50 Hz | 12.4/6.2A | 184T | 1 1/8" | 2 7/8" | 17 7/8" | €1,616.62 | |
 |

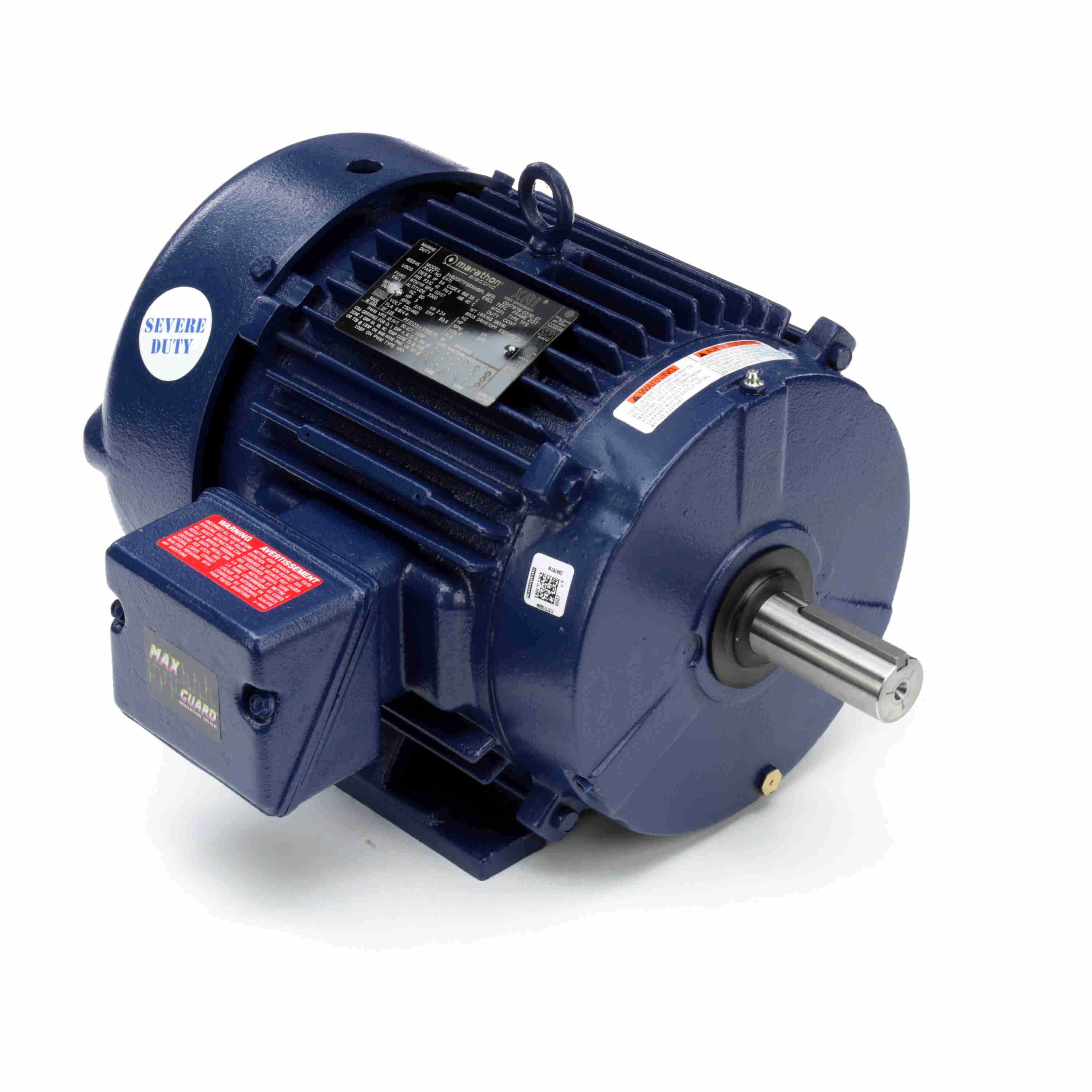

215TTFCD6546 | 230/460V AC | 10 hp | 60/50 Hz | 26.6/13.3A | 215T | 1 3/8" | 3 1/2" | 22 5/8" | €2,797.76 |
