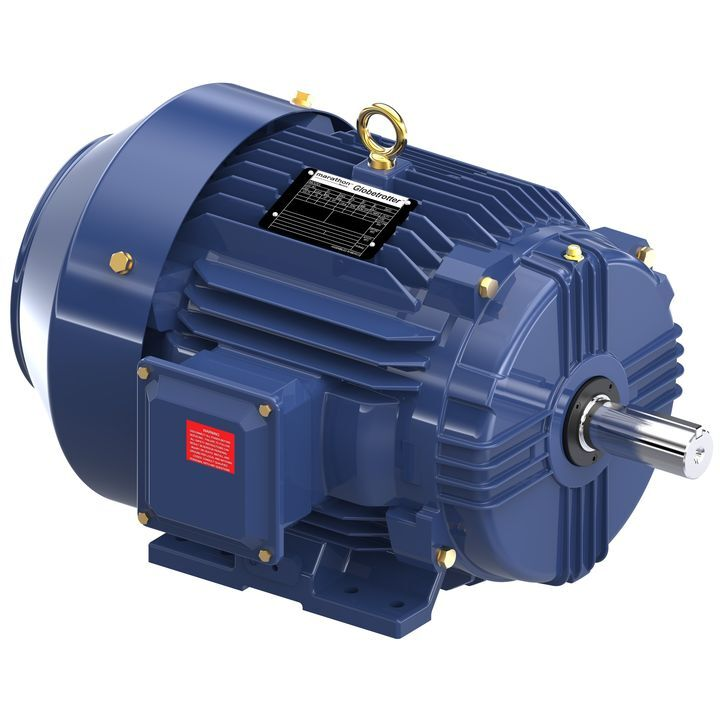

MARATHON MOTORS 215TTFCD6026 GT1019A / 215TTFCD6026BB AC Induction Motor, General Purpose, 10Hp, 3-Phase, 208-230/460 VAC, 1800 rpm, TEFC
Item: CV6LFNModel: 215TTFCD6026Cross Ref: 44Z330 / GT1019A / 215TTFCD6026BB
In Stock
Get it by Thursday, Aug 27
€1,368.38 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | AC Motor |
| Cc No. | CC003A |
| Frame | 215T |
| Full Load Amps | 25/12.5A |
| Hp | 10 hp |
| Includes | Conduit Box |
| Ins. Class | Class F |
| Inverter Rated | Yes |
| Length Less Shaft | 16 15/16" |
| Motor Bearings | Ball |
| Motor Efficiency Group | NEMA Premium Efficient |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise/Counterclockwise |
| Nameplate Speed | 1762 RPM |
| Nema Design | B |
| No. Of Speeds | 1 |
| Nominal Efficiency | 92.4% |
| Overall Length | 20 5/16" |
| Phase | 3 |
| Product Datasheet | marathon-motors-gt1010a.pdf |
| Shaft Dia. | 1 3/8" |
| Shaft Length | 3 3/8" |
| Voltage | 230/460V AC |
Shipping Info:
| Ship weight (kg) | 74.4 |
| Ship height (cm) | 38.1 |
| Ship length (cm) | 58.42 |
| Ship width (cm) | 45.72 |
| Country of Origin | MX |
Documentation:
Product Variants
| Product | Model | Overall Length | Max. Ambient Temp. | Price | |
|---|---|---|---|---|---|
 |
213TTFCD6026 | - | - | €1,177.61 | |
 |
254TTFCD6026 | 24 1/8" | 40°C | €1,882.18 | |
 |
256TTFCD6026 | 25 7/8" | 40°C | €2,130.04 | |
 |
284TTFCD6026 | 26 5/8" | 40°C | €2,659.62 | |
 |
286TTFCD6026 | 28 1/8" | - | €3,185.65 | |
 |
326TTFCD6026 | - | - | €7,401.23 | |
 |
182TTFBD6028 | 15 7/8" | - | €762.37 |
