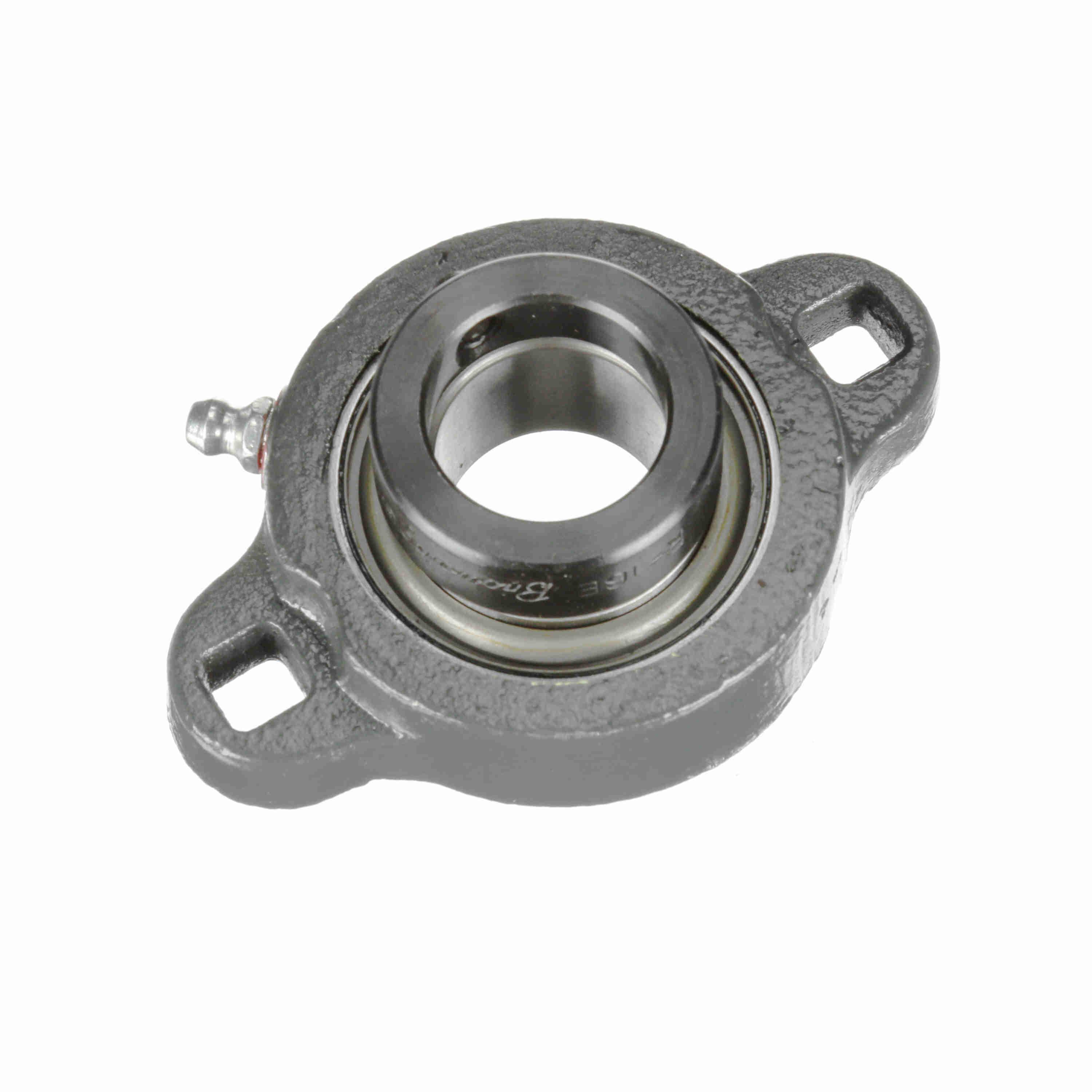

BROWNING 767774 VF2E-116M Two Bolt Flange Ball Bearing, Mounted Ductile Iron, Eccentric Lock
Item: BF7VYQModel: 767774Cross Ref: VF2E-116M
7 In Stock
Ships within 2 days via
€122.49 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Mounted Ball Bearing |
| Bolt Center To Center Length | 3" |
| Bolt Spacing | 3" |
| Bore Dia. | 1" |
| Color | Gray |
| Dynamic Load Capacity | 2801 lbs. |
| Expansion Type | Non-Expansion |
| Finish | Painted |
| Flange Mounting Type | 2 Bolt |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Housing Style | 2 Bolt Flange Block |
| Insert Part Number | VE-116 |
| Locking Device | Eccentric |
| Material | Steel |
| Max. Speed | 3500 RPM |
| Mounting Bolts | 11/32" |
| Mounting Method | Eccentric Collar |
| No. Of Mounting Holes | 2 |
| Nominal Bolt Circle Dia | 3" |
| Number Of Rows | 1 |
| Other Features | Intermediate Duty |
| Overall Depth | 1 11/32" |
| Overall Dia. | 3 3/4" |
| Overall Height | 7/16" |
| Overall Length | 3 3/4" |
| Pilot Configuration | No Pilot |
| Product Type | Non-Expansion Intermediate Duty |
| Relubricatable | Yes |
| Rolling Element | Ball Bearing |
| Seal Material | Nitrile Rubber |
| Seal Type | Single Lip Contact |
| Series | VF2E 100 Series |
| Static Load Capacity | 1651 lbs. |
| System Of Measurement | Imperial |
| Temp. Range | -20°F to +200°F |
| Temp. Rating | 200°F |
| Weight | 0.45 Kg |
Shipping Info:
| Ship weight (kg) | 0.39 |
| Ship height (cm) | 1.12 |
| Ship length (cm) | 9.53 |
| Ship width (cm) | 3.4 |
Product Variants
| Product | Model | Overall Length | Overall Height | Bore Dia. | Max. Speed | Locking Device | Bolt Center To Center Length | Inside Dia. | Housing Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
767796 | 4 13/16" | 1/2" | 1 3/8" | 2500 RPM | Eccentric | 3 15/16" | - | Cast Iron | €123.55 | |
 |
767325 | 4 9/16" | 7 7/16" | - | 2000 RPM | Eccentric Collar | 6 3/16" | 1 15/16" | - | €289.99 | |
 |
767782 | 3 3/4" | 7/16" | 7/8" | 3500 RPM | Eccentric | 3" | - | Cast Iron | €98.98 | |
 |
767798 | 3 5/8" | 6 1/8" | 1 3/8" | 2500 RPM | Eccentric Collar | 5 1/8" | 1 3/8" | Cast Iron | €294.97 | |
 |
767871 | 4 3/8" | 7 1/16" | 1 3/4" | 2000 RPM | Eccentric Collar | 5 27/32" | 1 3/4" | Cast Iron | €290.54 | |
 |
767759 | 3 9/16" | 7/16" | 3/4" | 4000 RPM | Eccentric | 2 13/16" | - | Cast Iron | €85.02 | |
 |
767661 | 4 1/8" | 6 3/4" | 1 1/2" | 2500 RPM | Eccentric Collar | 5 21/32" | - | Cast Iron | €197.72 |
