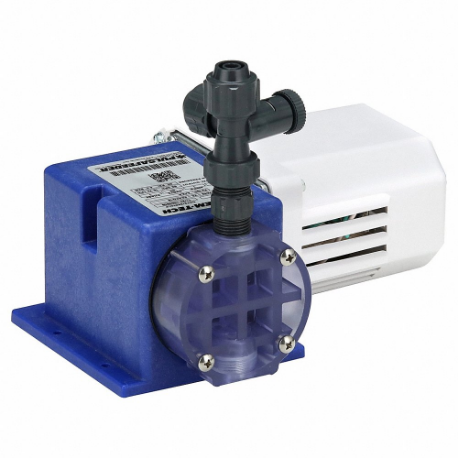

CHEM-TECH X068-XA-AAAAG19 Chemical Metering Pump, Electric Motor, CSPE/PTFE/Viton, Styrene Acrylonitrile, PVC
Item: CQ8RNLModel: X068-XA-AAAAG19Cross Ref: 49AV27
7 In Stock
Ships within 2 days via
13.00% off
€871.75 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Chemical Metering Pump |
| Ball Material | Ceramic |
| Ball Material-pumps | Ceramic |
| Body Material | Styrene Acrylonitrile |
| Body Material-pumps | Styrene Acrylonitrile |
| Check Ball Material | Ceramic |
| Chemical Metering Pump Type | Diaphragm |
| Compatible Chemicals | Ammonium Hydroxide, Antifreeze, Calcium Carbonate, Sodium Hydroxide 20%, Sodium Hypochlorite 5%, Sulfuric Acid 10%, Sulfuric Acid 20%, Sulfuric Acid 30%, Water |
| Control Programs | Manual Control |
| Cord Length | 6 ft. |
| Degassing Valve Included | No |
| Diaphragm Material | CSPE, PTFE, Viton |
| Discharge Connection Size | 1/2" |
| Discharge Connection Type | Tube |
| Display Qty | 1 |
| Drive Type | Electric Motor |
| Duty Cycle | Continuous |
| Features | Adjustable Output Via Stroke Length |
| Fitting Material | PVC |
| Flow Rate Output Control | Adjustable |
| Frequency | 60 Hz |
| Head Material | PVC |
| Height | 9" |
| Housing Material | Styrene Acrylonitrile |
| Hp-pumps | 1/60 hp |
| Included | Bleed Valve, Foot Valve Strainer With Weight, Injection Back Pressure Valve, Tube |
| Included Degassing Valve | No |
| Intake Connection Size | 1/2" |
| Intake Connection Type | Tube |
| Length | 8 7/8" |
| Max. Discharge Pressure | 60 psi |
| Max. Flow Rate | 68 GPD |
| Max. Hp | 1/60 hp |
| Max. Media Temp. | 104°F |
| Max. Motor Speed | 51 RPM |
| Max. Pressure | 60 psi |
| Max. Strokes Per Minute | 51 strokes/min. |
| Max. Viscosity | 300 cPS |
| Max. Viscosity-pumps | 300 cPS |
| Min. Flow Rate | 6.8 GPD |
| Motor Hp | 1/60 hp |
| Motor Speed | 51 RPM |
| Nameplate Voltage | 115/230V AC |
| No. Of Feeds | 1 |
| Number Of Feeds | 1 |
| Operating Pressure | 60 psi |
| Overall Height | 7.3" |
| Overall Length | 8 4/5" |
| Overall Width | 7 2/5" |
| Phase | 1 |
| Priming | Self Priming |
| Pump Drive Type | Electric Motor |
| Pump Type | Diaphragm |
| Reproducibility | -5.0% to +5.0% |
| Reproducibility | -5% to +5% |
| Reproducibility-pumps | -5% to +5% |
| Seal Material | CSPE |
| Self Priming | Yes |
| Suction Lift | 4 ft. |
| Turn Down Ratio | 101 , 10:1 |
| Turn Down Ratio | 10:1 |
| Width | 7 3/8" |
Shipping Info:
| Ship weight (kg) | 3.76 |
| Ship height (cm) | 18.54 |
| Ship length (cm) | 22.35 |
| Ship width (cm) | 18.8 |
| Country of Origin | US |
Product Variants
| Model | Max. Flow Rate | Overall Width | Overall Height | Motor Hp | Min. Flow Rate | Discharge Connection Size | Max. Discharge Pressure | Intake Connection Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| MD1BAASN1A-XXX | 336 GPD | 10" | 20" | 1/2 hp | 33.6 GPD | 1/2" | 150 psi | 1/2" | €5,367.05 | |
| MD3GAASN2C-XXX | 3168 GPD | 19" | 35" | 1/2 hp | 31.68 GPD | 1" | 75 psi | 1" | €17,285.14 | |
| MD2FAASN2C-XXX | 1416 GPD | 19" | 32" | 1/2 hp | 14.16 GPD | 3/4" | 90 psi | 3/4" | €14,551.66 | |
| MD2FAASN1A-XXX | 1416 GPD | 10" | 24" | 1/2 hp | 141.6 GPD | 3/4" | 90 psi | 3/4" | €9,403.52 | |
| MD1AAASN1A-XXX | 168 GPD | 10" | 19" | 1/2 hp | 16.8 GPD | 1/2" | 150 psi | 1/2" | €5,515.63 | |
| MD1BAASN2C-XXX | 336 GPD | 19" | 28" | 1/2 hp | 3.36 GPD | 1/2" | 150 psi | 1/2" | €11,670.41 | |
| MD1DAASN1A-XXX | 696 GPD | 10" | 22" | 1/2 hp | 69.6 GPD | 1/2" | 150 psi | 1/2" | €6,170.09 |
