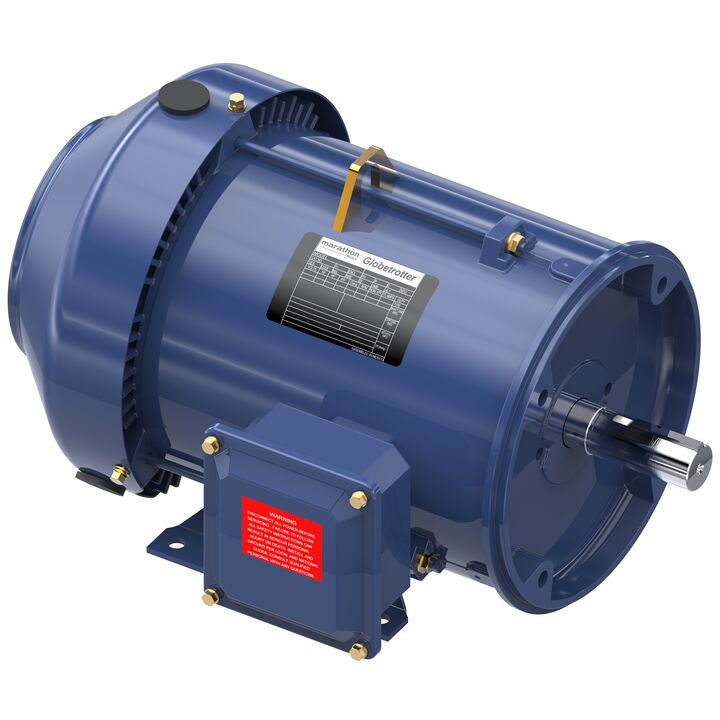

MARATHON MOTORS 182TTFBD6028 GT1210A / 182TTFBD6028CB AC Induction Motor, General Purpose, 3Hp, 3-Phase, 230/460 VAC, 1800 rpm, TEFC
Item: CV6LGCModel: 182TTFBD6028Cross Ref: 44P042 / GT1210A / 182TTFBD6028CB
In Stock
Get it by Thursday, Aug 27
€762.37 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | AC Motor |
| Cc No. | CC003A |
| Frame | 182TC |
| Frame Material | Rolled Steel |
| Full Load Amps | 8/4A |
| Hp | 3 hp |
| Ins. Class | Class F |
| Inverter Rated | Yes |
| Length Less Shaft | 13 1/8" |
| Motor Bearings | Ball |
| Motor Efficiency Group | NEMA Premium Efficient |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise/Counterclockwise |
| Nameplate Speed | 1762 RPM |
| Nema Design | A |
| No. Of Speeds | 1 |
| Nominal Efficiency | 89.5% |
| Overall Length | 15 7/8" |
| Phase | 3 |
| Product Datasheet | marathon-motors-gt1010a.pdf |
| Shaft Dia. | 1 1/8" |
| Shaft Length | 2 7/8" |
| Voltage | 230/460V AC |
Shipping Info:
| Ship weight (kg) | 39.15 |
| Ship height (cm) | 46.79 |
| Ship length (cm) | 41.99 |
| Ship width (cm) | 36.78 |
| Country of Origin | MX |
Documentation:
Product Variants
| Product | Model | Overall Length | Max. Ambient Temp. | Price | |
|---|---|---|---|---|---|
 |

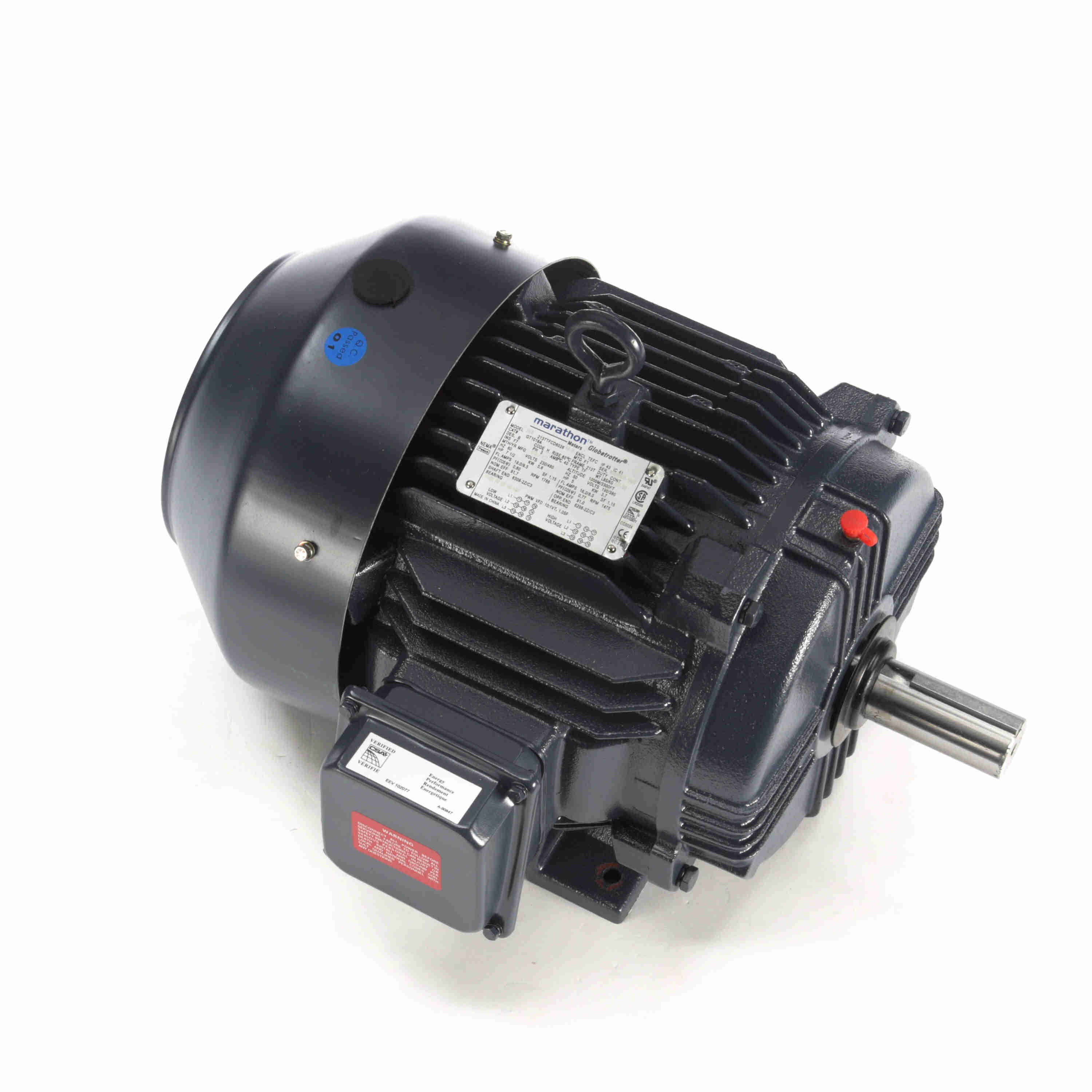

213TTFCD6026 | - | - | €1,177.61 | |
 |

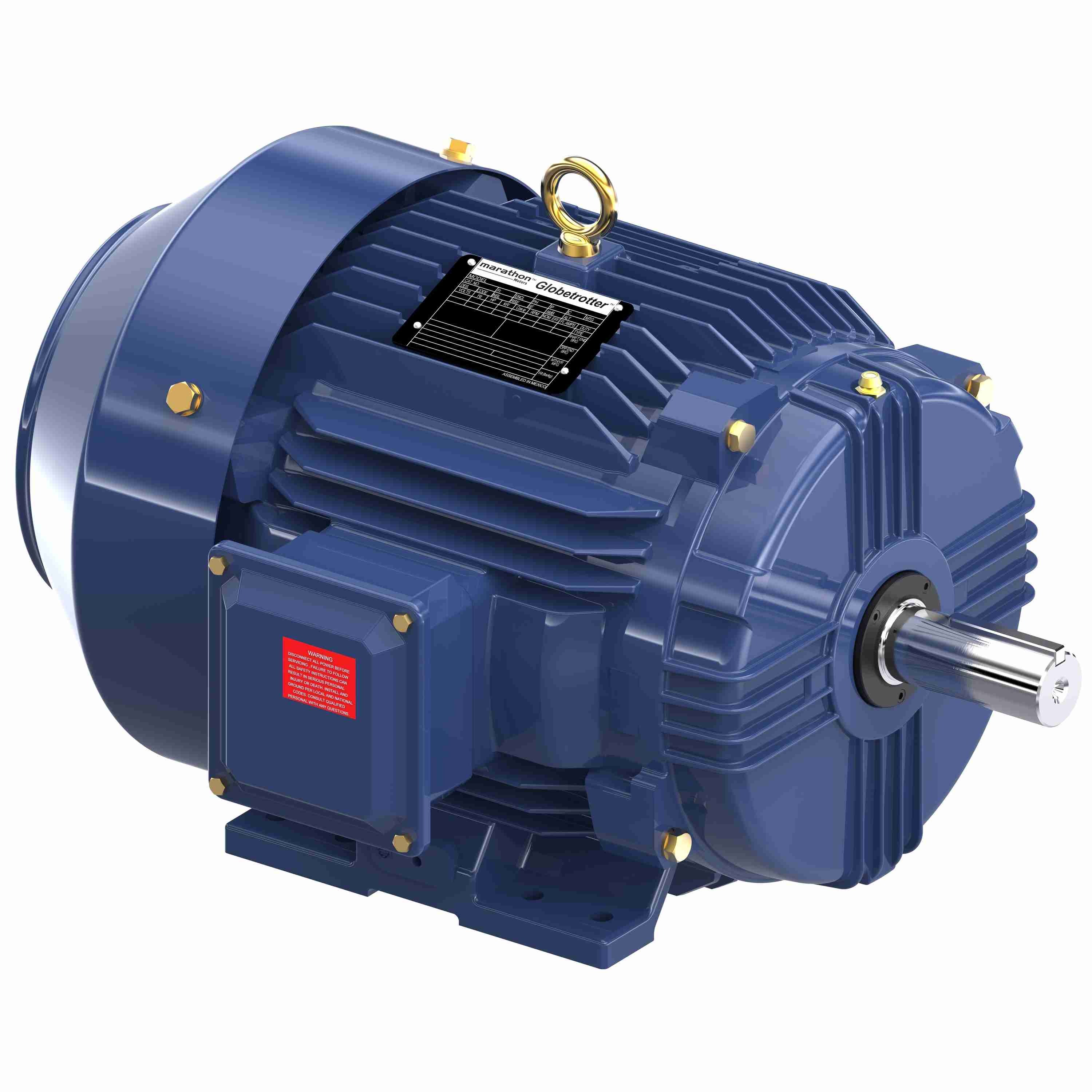

215TTFCD6026 | 20 5/16" | - | €1,368.38 | |
 |

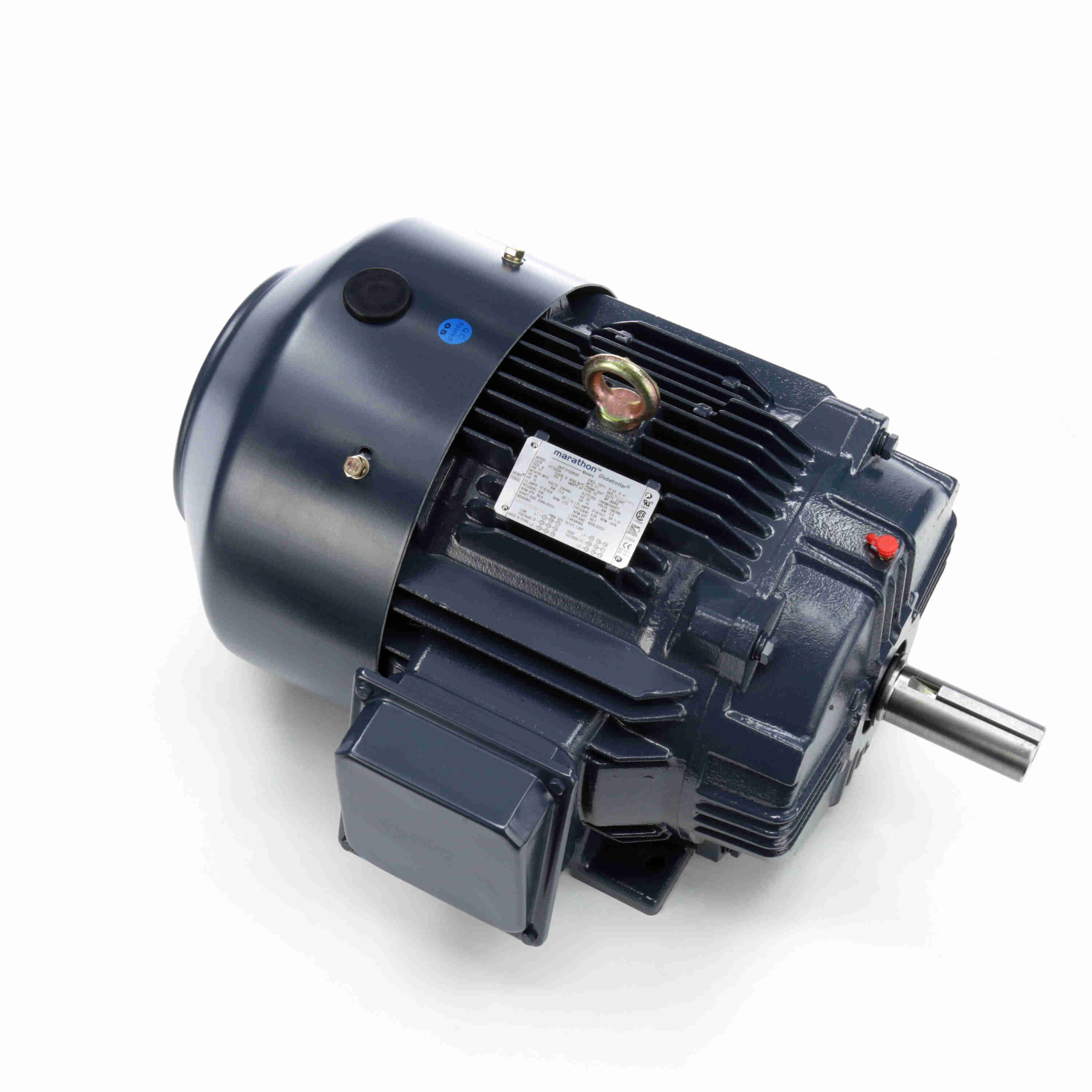

254TTFCD6026 | 24 1/8" | 40°C | €1,882.18 | |
 |
256TTFCD6026 | 25 7/8" | 40°C | €2,130.04 | |
 |

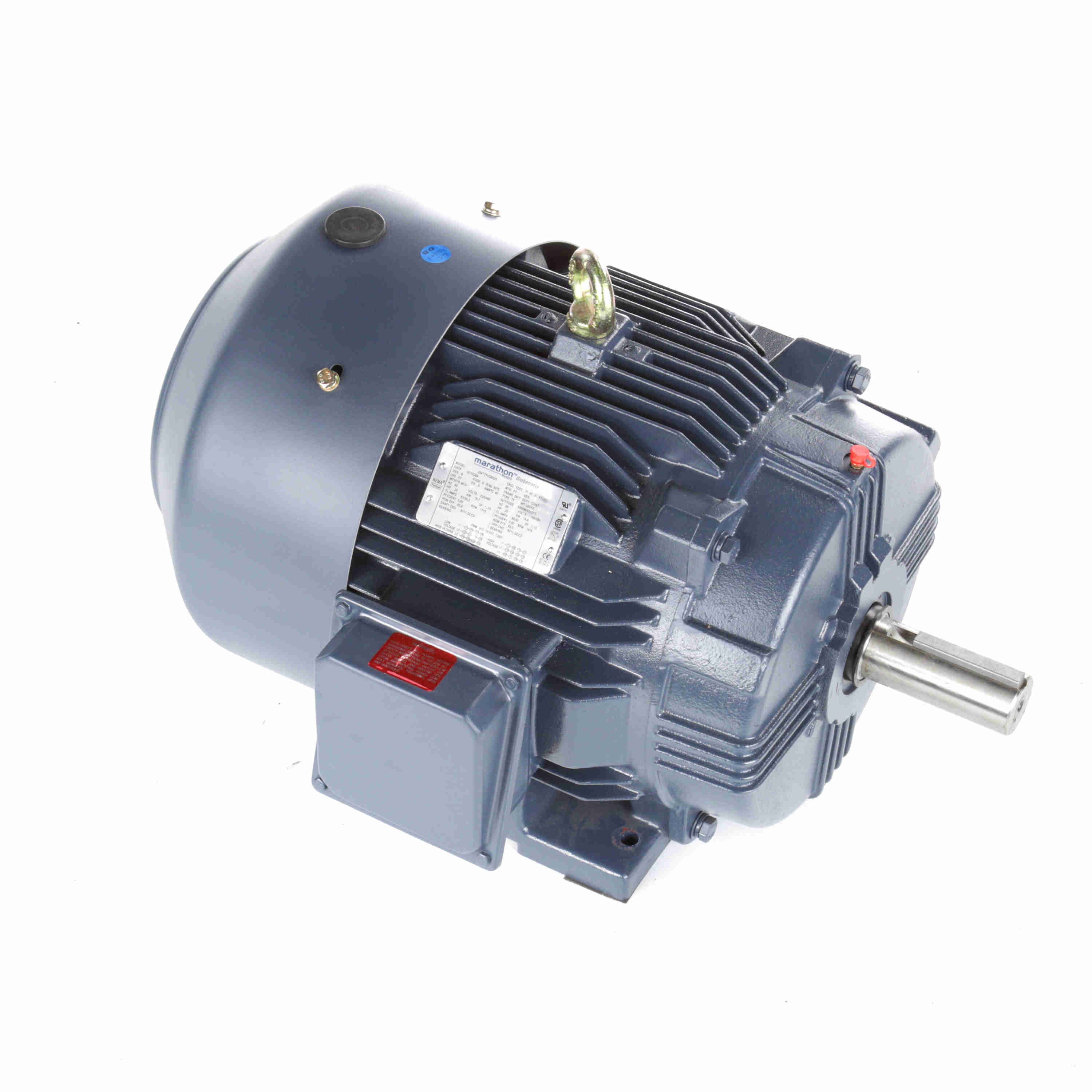

284TTFCD6026 | 26 5/8" | 40°C | €2,659.62 | |
 |

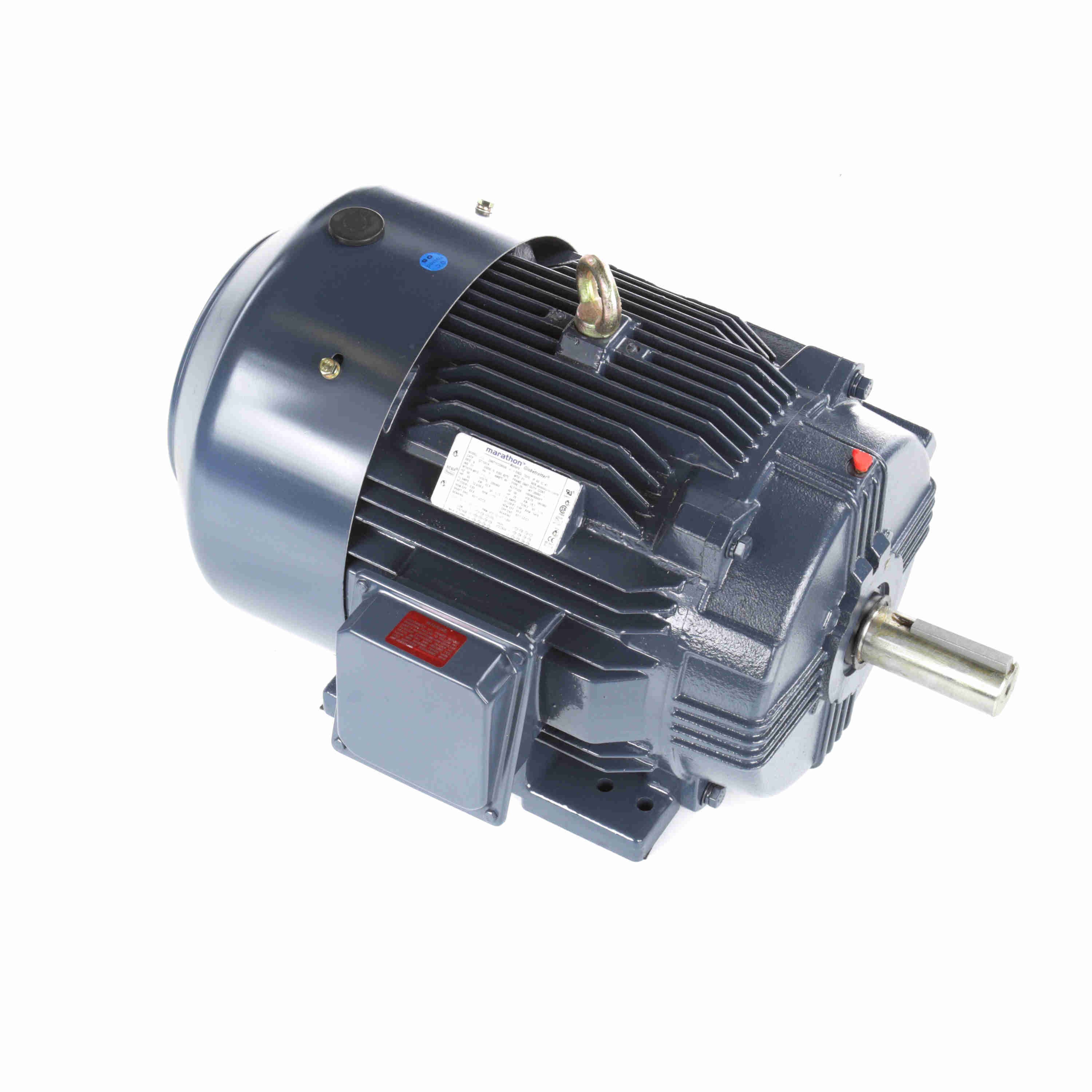

286TTFCD6026 | 28 1/8" | - | €3,185.65 | |
 |

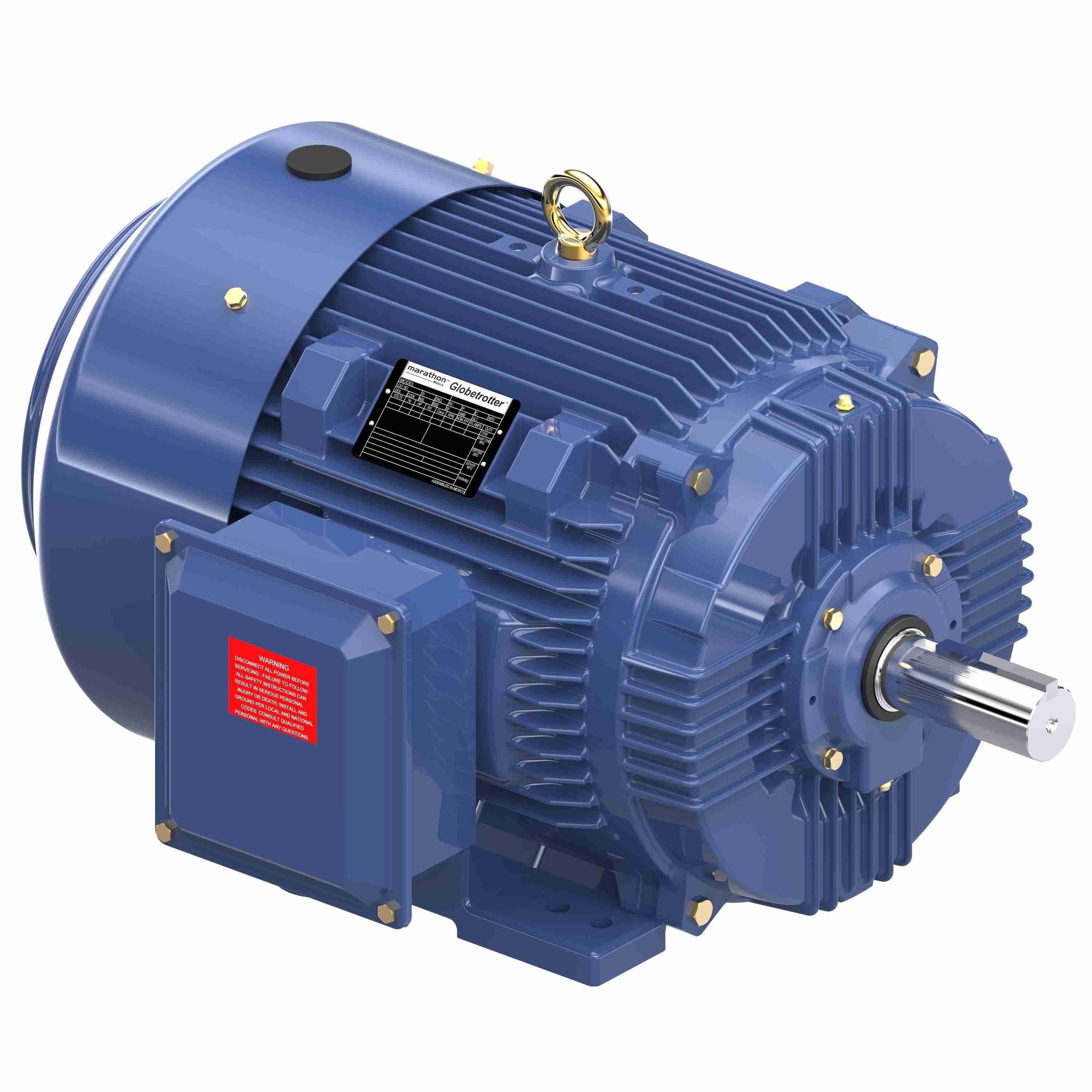

326TTFCD6026 | - | - | €7,401.23 |
