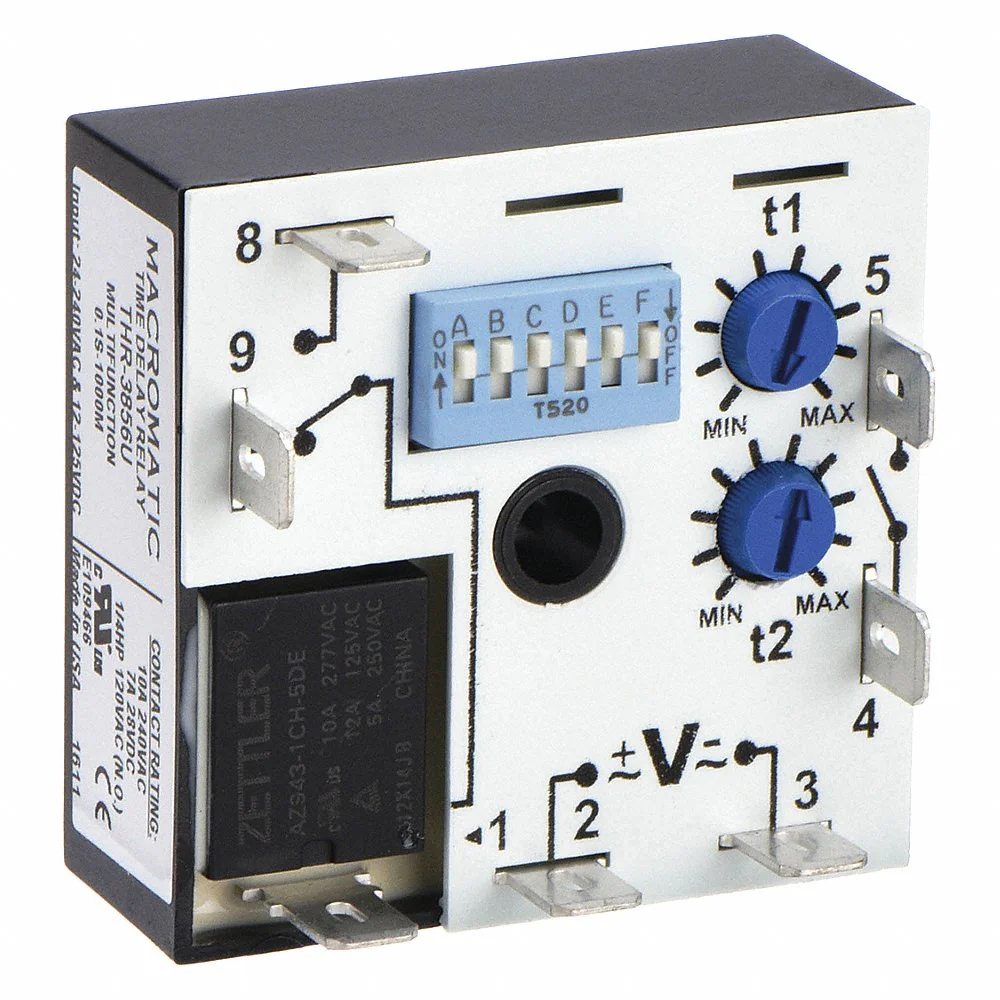

MACROMATIC THR-3856U Encapsulated Timer Relay, 1000 Min., 7 Pin
Item: AF7JAHModel: THR-3856UCross Ref: 21EP69
7 In Stock
Ships within 2 days via
5.00% off
€97.87 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Time Delay Relay |
| Ac Voltage | 24-240V AC |
| Adjustment Interface | Analog |
| Adjustment Method | Dip Switch |
| Adjustment Operator | Knob |
| Amps | 24A |
| Base Shape | Square |
| Body Depth | 0.79" , 2" |
| Body Height | 0.79" , 2" |
| Body Width | 2" |
| Contact Amps Rating | 10A |
| Contact Form | SPDT |
| Contact Material | Silver Nickel |
| Contact Rating (a) | 10A |
| Contacts | SPDT |
| Dc Voltage | 12-125V DC |
| Delay Function Group | Cycle/Flasher, Interval |
| Electrical Connection | Screw Terminal |
| Electrical Connection Type | Screw |
| Electrical Operating Durability | 100000 |
| Environmental Protection | Enclosed |
| Environmental Protection Combo | Enclosed |
| Eu Rohs Indicator | Yes |
| Frequency | 50/60 Hz |
| Function | Repeat Cycle (Off 1ST), Repeat Cycle (On 1ST), Delayed Interval, Triggered Delayed Interval |
| Gross Weight | 0.18 lbs. |
| Max. Time | 1000 min. |
| Max. Time Setting | 1000 min. |
| Max. Time Setting Range | 1 hr. to 23 hrs. |
| Mechanical Operating Durability | 10000000 |
| Min. Time Setting | 0.1 sec. |
| Min. Time Setting-timer | 0.1 sec. |
| Mounting | Surface |
| Mounting Style | Surface |
| Mounting-relay | Surface |
| Multi-function | Yes |
| No. Of Delay Functions | 4 |
| No. Of Pins | 7 |
| No. Of Pins-relay | 7 |
| Output | Relay |
| Overall Depth | 1.14" |
| Overall Height | 1.14" |
| Power Consumption | 2 VA |
| Product Type | Multi-Function Encapsulated Timing Relay |
| Relay Mounting Style | Surface |
| Reset Method | Time-Limit Reset |
| Resistive Contact Amp Rating | 10A |
| Resistive Contact Amps Rating | 10A |
| Sealing | Enclosed |
| Status Indicator | No |
| Status Indicator | None |
| Timer | 0.1 sec. to 1000 min. |
| Type Of Output | Relay |
| Voltage | 240V AC |
Shipping Info:
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 5.08 |
| Ship length (cm) | 2.01 |
| Ship width (cm) | 5.08 |
| HS code | 8536490075 |
| Country of Origin | US |
