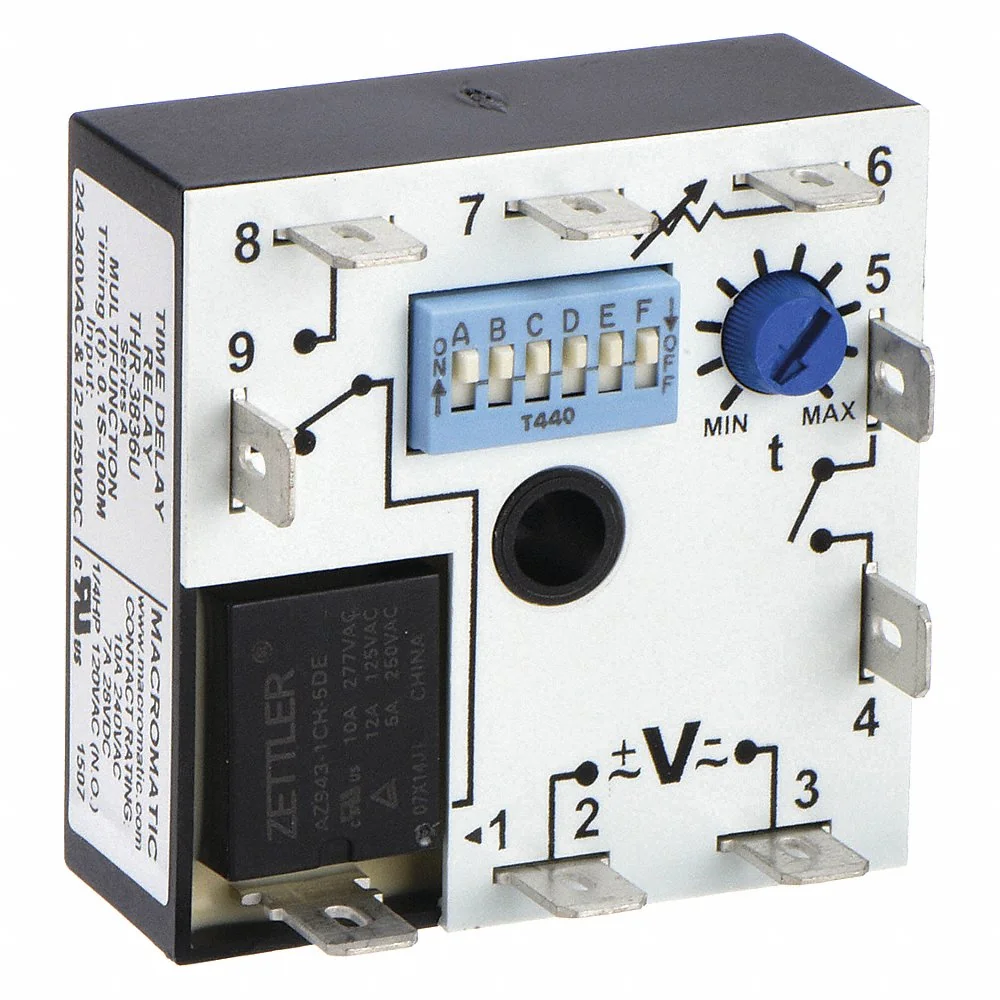

MACROMATIC THR-3836U Encapsulated Timer Relay 100min 9pin Spdt
Item: AF7JAGModel: THR-3836UCross Ref: 21EP68
7 In Stock
Ships within 2 days via
5.00% off
€90.72 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Time Delay Relay |
| Ac Voltage | 24-240V AC |
| Adjustment Interface | Analog |
| Adjustment Method | Dip Switch |
| Adjustment Operator | Knob |
| Amps | 24A |
| Base Shape | Square |
| Body Depth | 0.79" |
| Body Height | 2" |
| Body Width | 2" |
| Coil Voltage | 24-240V AC/12-125V DC |
| Contact Amps Rating | 10A |
| Contact Form | SPDT |
| Contact Material | Silver Nickel |
| Contact Rating (a) | 10A |
| Contact Rating (ac) | 24A @ 240V AC |
| Contact Rating (dc) | 12A @ 125V DC |
| Contacts | SPDT |
| Dc Contact Rating | 12A @ 125V DC |
| Dc Voltage | 12-125V DC |
| Delay Function | Flasher Off 1St, Flasher On 1S, Single Shot Falling Edge, Watchdog |
| Delay Function Group | Cycle/Flasher, Watchdog |
| Electrical Connection | Screw Terminal |
| Electrical Connection Type | Screw |
| Electrical Operating Durability | 100000 |
| Environmental Protection | Enclosed |
| Environmental Protection Combo | Enclosed |
| Eu Rohs Indicator | Yes |
| Frequency | 50/60 Hz |
| Function | Repeat Cycle Equal On/Off Time, Watchdog, Single Shot Falling Edge |
| Gross Weight | 0.1865 lbs. |
| Max. Operating Temp. | 149°F |
| Max. Time | 100 min. |
| Max. Time Setting | 100 min. |
| Max. Time Setting Range | 1 hr. to 23 hrs. |
| Mechanical Operating Durability | 10000000 |
| Min. Operating Temp. | -18°F |
| Min. Time Setting | 0.1 sec. |
| Min. Time Setting-timer | 0.1 sec. |
| Mounting | Surface |
| Mounting Style | Surface |
| Mounting-relay | Surface |
| Multi-function | Yes |
| No. Of Delay Functions | 4 |
| No. Of Pins | 9 |
| No. Of Pins-relay | 9 |
| No. Of Pins/terminals | 9 |
| Operating Time Accuracy | +0% -50% (Minimum Setting (Adjustable)), +5% -0% (Maximum Setting (Adjustable)) |
| Output | Relay |
| Overall Depth | 1.14" |
| Overall Height | 1.14" |
| Power Consumption | 2 VA |
| Product Type | Multi-Function Encapsulated Timing Relay |
| Relay Mounting Style | Surface |
| Reset Method | Time Limit Reset |
| Resistive Contact Amp Rating | 10A |
| Resistive Contact Amps Rating | 10A |
| Sealing | Enclosed |
| Status Indicator | No |
| Status Indicator | None |
| Timer | 0.1 sec. to 100 min. |
| Type Of Output | Relay |
| Voltage | 240V AC |
Shipping Info:
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 5.08 |
| Ship length (cm) | 2.01 |
| Ship width (cm) | 5.08 |
| HS code | 8536490075 |
| Country of Origin | US |
