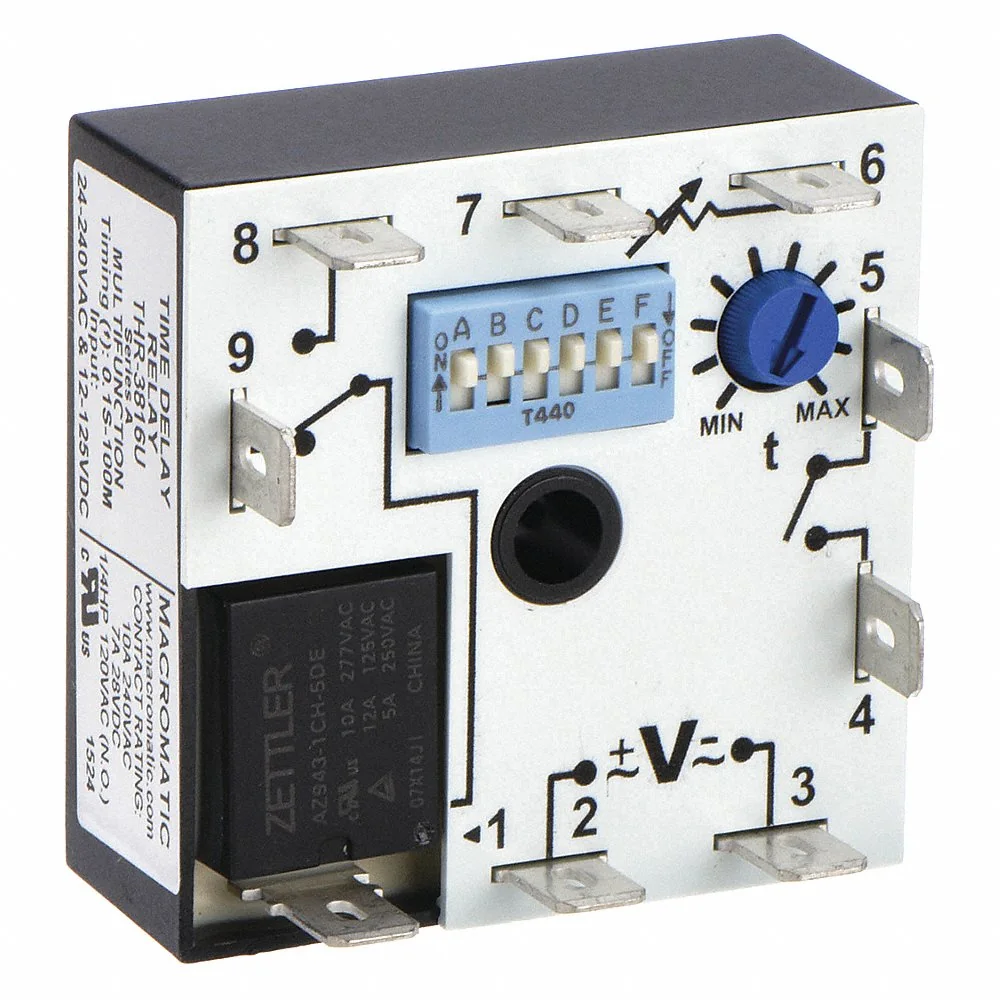

MACROMATIC THR-3816U Encapsulated Timer Relay SPDT, 100 Min., 9 Pin
Item: AF7JAFModel: THR-3816UCross Ref: 21EP67
7 In Stock
Ships within 2 days via
10.00% off
€83.80 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Encapsulated Timer Relay |
| Adjustment Interface | Analog |
| Adjustment Method | Dip Switch |
| Amps Rating | 24A |
| Base Shape | Square |
| Body Depth | 0.79" |
| Body Height | 2" |
| Body Width | 2" |
| Coil Voltage | 24-240V AC/12-125V DC |
| Contact Amp Rating | 10A |
| Contact Form | SPDT |
| Contact Rating (ac) | 24A @ 240V AC |
| Current Rating | 24A |
| Dc Contact Rating | 12A @ 125V DC |
| Delay Function | Interval, Off Delay, On Delay, Single Shot |
| Delay Function Group | Interval |
| Electrical Connection | Screw Terminal |
| Electrical Connection Type | Screw |
| Electrical Operating Durability | 100000 |
| Environmental Protection | Enclosed |
| Function | On Delay, Off Delay, Interval, Single Shot |
| Hz | 50/60 Hz |
| Max. Time Setting | 100 min. |
| Maximum Operating Temperature | 149°F |
| Mechanical Operating Durability | 10000000 |
| Min. Time Setting - Timer | 0.1 sec. |
| Minimum Operating Temperature | -18°F |
| Minimum Time Setting | 0.1 sec. |
| Mounting | Surface |
| Mounting - Relay | Surface |
| Mounting Style | Surface |
| No. Of Pins | 9 |
| No. Of Pins - Relay | 9 |
| Number Of Delay Functions | 4 |
| Number Of Pins | 9 |
| Number Of Pins/terminals | 9 |
| Operating Time Accuracy | +0% -50% (Minimum Setting (Adjustable)), +5% -0% (Maximum Setting (Adjustable)) |
| Output | Relay |
| Overall Depth | 1.14" |
| Overall Height | 1.14" |
| Power Consumption | 2 VA |
| Relay Mounting Style | Surface |
| Reset Method | Time Limit Reset |
| Resistive Contact Amp Rating | 10A |
| Sealing | Enclosed |
| Status Indicator | No |
| Status Indicator | None |
| Timer Range | 0.1 sec. to 100 min. |
| Type Of Output | Relay |
Shipping Info:
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 5.08 |
| Ship length (cm) | 2.01 |
| Ship width (cm) | 5.08 |
| HS code | 8536490075 |
| Country of Origin | US |
