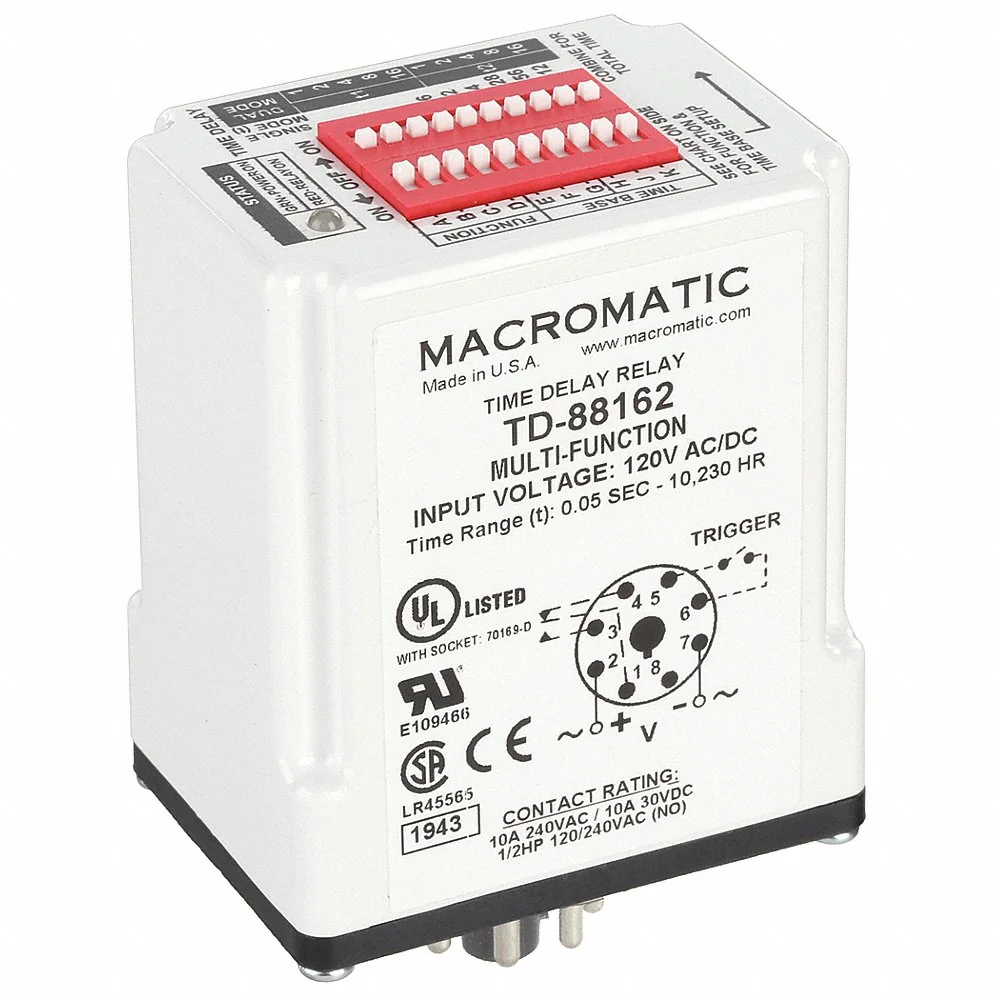

MACROMATIC TD-88162 Timer Relay, 1-1023 Hr, 8 Pin, 10A, SPDT 120V AC/DC

Macromatic TD-88162 time delay relay is ideal for choosing a time delay between 0.1 seconds & 10230 hours and 16 timing functions at a universal voltage input of 120V AC / DC and a load of 2.5VA (AC) / 2W (DC). This TE-881 Series relay unit offers a DIP switch having digital-set accuracy and a small housing / enclosure to install in compact spaces quickly. It can easily provide multiple function / time settings for preventing buying other units with an analogue potentiometer. An LED indicator indicates relay status.

Features:

• Macromatic TD-88162 time delay relay has an LED indicator that turns green when the input voltage is applied and turns red when the relay is energised.
• This unit has SPDT output contact rating of 10A at 240VAC / 30VDC, 1/2 hp at 120 / 240VAC (N.O.) & 1/3 hp at 120 / 240VAC (N.C.).
• It can operate in temperatures ranging from -28 to 65 degrees C (-18 to 149 degrees F).
• This pilot-duty rated relay requires 8-pin octal sockets for proper wiring.
• It has a mechanical operating life of 10000000 operations and full load life of 100000 operations.

Standards and Approvals:

• cURus
• CE
• UL
• CSA

Frequently Asked Questions:

Q. What are the functions in this Macromatic TD-88162 time delay relay?

A.

• Single Mode: On Delay, Interval On, Flasher (Off 1st), Flasher (On 1st), Off Delay, Single Shot, Watchdog, Single Shot (Trailing Edge) & Triggered On Delay
• Dual Mode: Repeat Cycle (Off 1st), Repeat Cycle (On 1st), Delayed Interval, Triggered Delayed Interval, On / Off Delay, Single Shot-Flasher & On Delay / Flasher

Q. What to do in case this Macromatic TD-88162 time delay relay fails to operate properly?

A. If this relay unit does not operate properly, users should check all the connections while following the correct wiring diagrams on the product.

Q. How is this Macromatic TD-88162 time delay relay programmed?

A. This timer relay can be programmed using two 10-position DIP switches. A to D switches in the left-mounted DIP switch are ideal for selecting a function. E to G switches of the same DIP switch are suitable for selecting the time base (t) for single mode functions & first-time base in (t1) dual mode functions. H to K switches are used for selecting the second time base (t2) for dual-mode functions. The right-mounted DIP switch is suitable for setting the time delay in conjunction with the time base selected in the E to K switches in the first DIP switch. Programming can be done by moving the increment switches of a 10-position DIP switch and adding their corresponding values.
