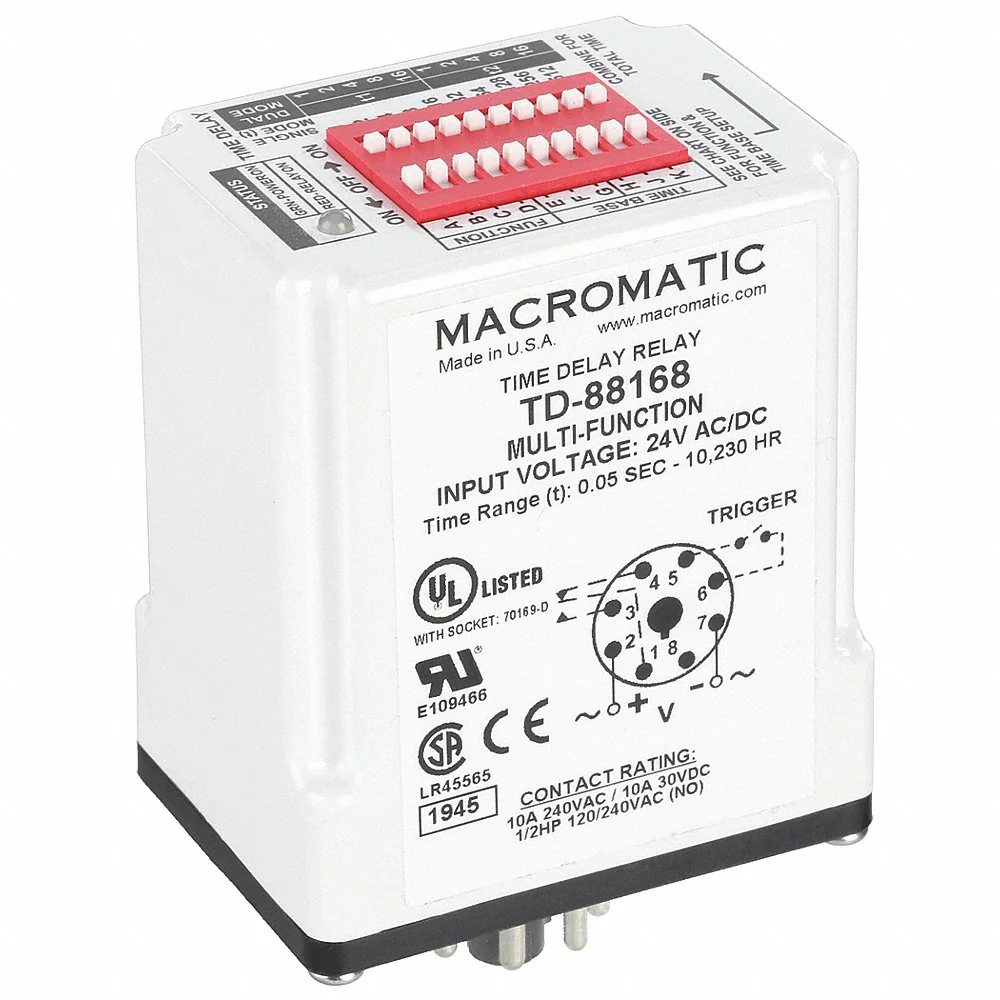

MACROMATIC TD-88168 Timer Relay, 1-1023 Hr, 8 Pin, 10A, SPDT 24V AC/DC

Item: AE9VCCModel: TD-88168Cross Ref: 6MPP4

7 In Stock

Ships within 2 days via

~~€90.30~~

5.00% off

€85.78 /unit

Add To Cart

Request a Quote

Payment

Product Specifications:

Item	Time Delay Relay
Ac Voltage	24V AC
Adjustment Interface	Digital
Adjustment Method	Dip Switch
Adjustment Operator	Onboard
Amps	10A
Base Shape	Octal
Base Type	Octal
Base Type-plug In Relay	Octal
Body Depth	2.9"
Body Height	1.77"
Body Width	2.33"
Coil Rating	2 VA
Coil Rating	2VA
Coil Va Rating	2 VA
Coil Voltage	24V AC , 24V AC/DC
Contact Amps Rating	10A
Contact Form	SPDT
Contact Material	Silver Nickel
Contact Rating (a)	10A
Contact Rating (ac)	10A @ 240V
Contact Rating (dc)	10A @ 30V
Contacts	DPDT
Dc Voltage	24V DC
Delay Function	Multi Function
Electrical Connection	Socket
Electrical Connection Type	Pin
Electrical Operating Durability	100000
Environmental Protection	Enclosed
Environmental Protection Combo	Enclosed/IP20
Flat Pin Width	Not Applicable
Frequency	50/60 Hz
Function	On Delay, Interval On, Flasher (Off First), Flasher (On First), Off Delay, Single Shot, Watchdog, Single Shot (Trailing Edge), Triggered On Delay, Repeat Cycle (Off First), Repeat Cycle (On First), Delayed Interval, Triggered Delayed Interval, On Delay/Of
Function - Timing Relay	Delay Interval (Triggered), Delayed Interval, Flasher (Off First), Flasher (On First), Interval On, Off Delay, On Delay, On Delay (Flasher), On Delay (Triggered), On Delay/Off Delay, One Shot, One Shot (Falling Edge), One Shot (Flasher), Repeat Cycle (Off First), Repeat Cycle (On First), Watchdog
Gross Weight	0.265 lbs.
Ip Rating	IP20
Max. Operating Temp.	149°F
Max. Time	999 hrs.
Max. Time Setting	1023 hrs. , 10230 hrs.
Mechanical Operating Durability	10000000
Min. Operating Temp.	-18°F
Min. Time Setting	0.05 sec. , 50 ms
Min. Time Setting-timer	0.05 sec.
Mounting	Plug In
Mounting Style	Plug-In
Mounting-relay	Plug In
Multi-function	Yes
No. Of Delay Functions	16
No. Of Functions	15 , 16
No. Of Pins	8
No. Of Pins-relay	8
No. Of Pins/terminals	8
Operating Functions	1, 2, 3, 4, 5, 6, 7, 9, + 8 Others
Operating Time Accuracy	+1% +50Ms
Overall Depth	3.03"
Overall Height	3"
Pins	8
Power Consumption	2 VA
Relay Mounting Style	Socket
Reset Method	Time Limit Reset
Resistive Contact Amp Rating	10A
Resistive Contact Amps Rating	10A
Sealing	Enclosed
Socket Code	A
Status Indicator	LED
Termination	11 Pin
Time Range Adjustment	Onboard
Timing Relay Functionality	Flasher, Interval Delay, Off Delay, On Delay, One Shot, Power Off Delay, Repeat Cycle

Shipping Info:

Ship weight (kg)	0.13
Ship height (cm)	4.5
Ship length (cm)	7.37
Ship width (cm)	5.92
HS code	8536490080
Country of Origin	US

Product Variants

Model	Dc Voltage	Ac Voltage	Coil Voltage	Max. Time	Series	Mounting Type	Timer	Time Range 10 Hrs.	Price
TD-88162	120V DC	120V AC	120V AC	999 hrs.	-	-	-	-	€90.30
TD-88161	-	240V AC	240V AC	999 hrs.	-	-	-	-	€90.30
TD-88122	120V DC	120V AC	-	999 hrs.	TD-8 Series	Socketable	-	-	€109.43
TD-80221-40	-	240V AC	-	102.3 sec.	TD-8 Series	Socket	-	-	€94.65
TD-80221-41	-	240V AC	-	1023 sec.	TD-8 Series	Socket	0 min. to 1 min., 0 min. to 2 min., 0 min. to 3 min., 0 min. to 5 min., 0 min. to 10 min.	-	€94.65
TD-80221-42	-	240V AC	-	10230 sec.	TD-8 Series	Socket	0 min. to 1 min., 0 min. to 2 min., 0 min. to 3 min., 0 min. to 5 min., 0 min. to 10 min., 0 min. to 15 min., 0 min. to 30 min., 0 min. to 60 min., 0 min. to 100 min.	-	€94.65
TD-80221-43	-	240V AC	-	1023 min.	TD-8 Series	Socket	0 min. to 1 min., 0 min. to 2 min., 0 min. to 3 min., 0 min. to 5 min., 0 min. to 10 min., 0 min. to 15 min., 0 min. to 30 min., 0 min. to 60 min., 0 min. to 100 min.	-	€94.65
