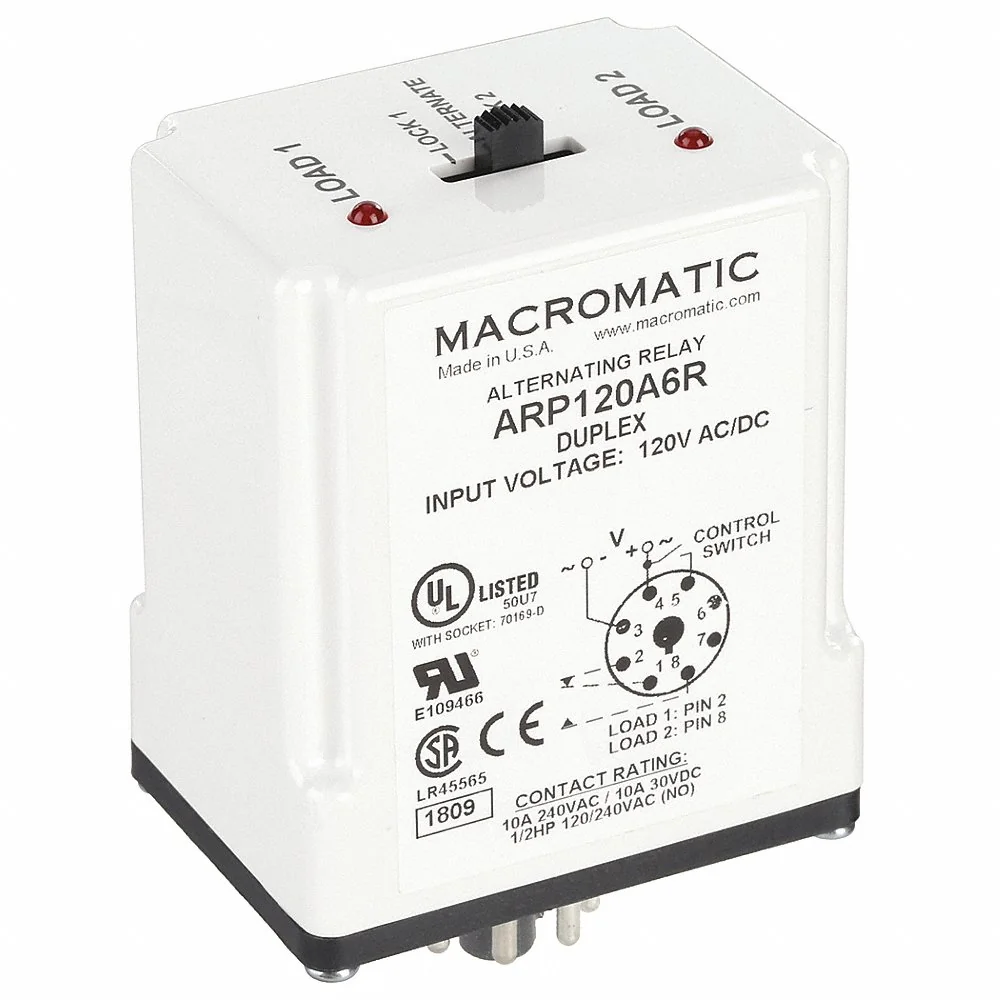

MACROMATIC ARP120A6R Alternating Relay SPDT, 120VAC, 10A, 8 Pin
Item: AE9VBZModel: ARP120A6RCross Ref: 6MPP1
7 In Stock
Ships within 2 days via
5.00% off
€93.30 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Alternating Relay |
| Alternating Mode Selection Method | Selector Switch |
| Amps | 10A |
| Amps Type | AC |
| Base Shape | Octal |
| Base Type | Octal |
| Body Depth | 2.9" |
| Body Height | 2.4" |
| Body Width | 1.7" |
| Body Width-relay | 2 2/5" |
| Burden | Less than 3VA |
| Coil Voltage | 120V AC |
| Contact Configuration | SPDT |
| Contact Form | SPDT |
| Contact Rating (ac) | 10A @ 240V |
| Contact Rating (dc) | 10A @ 24V |
| Contact Rating @ 120 Vac | 10A |
| Contact Rating @ 240 Vac | 10A |
| Electrical Operating Durability | 100000 |
| Enclosure Style | Plug-In, Plug-In Case Utilizing Industry-Standard Octal Sockets |
| Eu Rohs Indicator | Yes |
| Flat Pin Width | Not Applicable |
| Function | Duplexor |
| Gross Weight | 0.25 lbs. |
| Hp @ 120v | 1/3 hp |
| Hp @ 240v | 1/3 hp |
| Input Voltage | 120V AC |
| Life | Mechanical 10000000 Operations |
| Max. Amps | 10A |
| Max. Input Voltage | 132V |
| Max. Input Volts | 132 |
| Max. Operating Temp. | 149°F |
| Mechanical Operating Durability | 10000000 |
| Min. Operating Temp. | -18°F |
| Mounting | Plug-In |
| Mounting Style | Plug-In |
| Mounting-relay | Plug In |
| No. Of Contacts | 1 |
| No. Of Pins | 8 |
| No. Of Pins-relay | 8 |
| Nominal Control Voltage | 120V AC |
| Number Of Contacts | 1 |
| Operating Mode | Alternate, Always Energize Load 1, Always Energize Load 2 |
| Operation | 2-Channel (Duplexor) |
| Output | SPDT |
| Overall Depth | 3.1" |
| Overall Height | 3.1" |
| Power Consumption | 3 VA |
| Power Consumption-relay | 3 VA |
| Relay Mounting Style | Socket |
| Socket | 5X852 |
| Socket Code | A |
| Standard Modifications | Switch to select normal alternation or lock Loads 1 or 2 |
| Status Indicator | LED Indicates Next Load To Energize |
| Termination | 8-Pin Plug-In |
| Type | Duplex |
Shipping Info:
| Ship weight (kg) | 0.11 |
| Ship height (cm) | 6.1 |
| Ship length (cm) | 7.37 |
| Ship width (cm) | 4.32 |
| HS code | 8536490080 |
| Country of Origin | US |
Product Details:
Macromatic ARP120A6R alternating relay is ideal for either alternating between two connected loads or continuous-duty load operation in those instruments requiring excess load. It is primarily used to optimise / equalise the run time of 2 connected loads. This alternating relay has a 120V AC / DC input rating and 10A SPDT output contact.
Features:
- Macromatic ARP120A6R alternating relay comes with a three-position selector switch with load 1, alternate & load 2 positions for alternating the two loads or running the relay at one particular load.
- Locking of one load leads to energising of only one load. It is necessary to balance the run time of loads if one load has been used more than the other or in cases where one load need to be removed or undergo maintenance without any rewiring requirements.
- The selector switch also has a low profile for installation in confined spaces while preventing accidental changes.
- This pilot-duty rated relay has a mechanical life of 10000000 operations and a full load life of 100000 operations.
Compatible Accessories:
- Macromatic 70169-D 8-Pin Octal Socket: This relay unit is plugged into this wired socket for powering it.
- Control Switches: The alternating action of this relay is controlled by the status of the control switches like a float switch, pressure switch, timing relay or other isolated contacts.
Standards and Approvals:
- UL
- CE
- CSA
Frequently Asked Questions:
Q. What are the uses of LEDs in this Macromatic ARP120A6R alternating relay?
A. It is equipped with two LEDs that light up to indicate the relay's status & the load being energised.
Q. What to do in case this Macromatic ARP120A6R alternating relay fails to operate properly?
A. If this relay unit does not operate properly, users should check all the connections while following the correct wiring diagrams on the product.
Q. What is the temperature rating of this Macromatic ARP120A6R alternating relay?
A. It can operate in temperatures ranging from -28 to 65 degrees C (-18 to 149 degrees F).
Product Variants
| Product | Model | Output Amps | Coil Voltage | Max. Input Voltage | No. Of Pins | Contact Form | No. Of Contacts | Flat Pin Width | Body Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
ARP024A3R | - | 24V AC | 26V | 8 | DPDT | 2 | Not Applicable | 2.4" | €88.18 | |
 |
ARP120A3R | - | 120V AC | 132V | 8 | DPDT | 2 | Not Applicable | 2.4" | €91.24 | |
 |
ARP240A3R | - | 240V AC | 264V | 8 | DPDT | 2 | Not Applicable | 2.4" | €85.74 | |
 |
ARP012A2 | 10A | - | - | - | - | - | - | - | €103.29 | |
 |
ARP012A2R | 10A | - | - | - | - | - | - | - | €109.43 | |
 |
ARP012A3 | 10A | - | - | - | - | - | - | - | €103.29 | |
 |
ARP012A3R | 10A | - | - | - | - | - | - | - | €109.43 |
