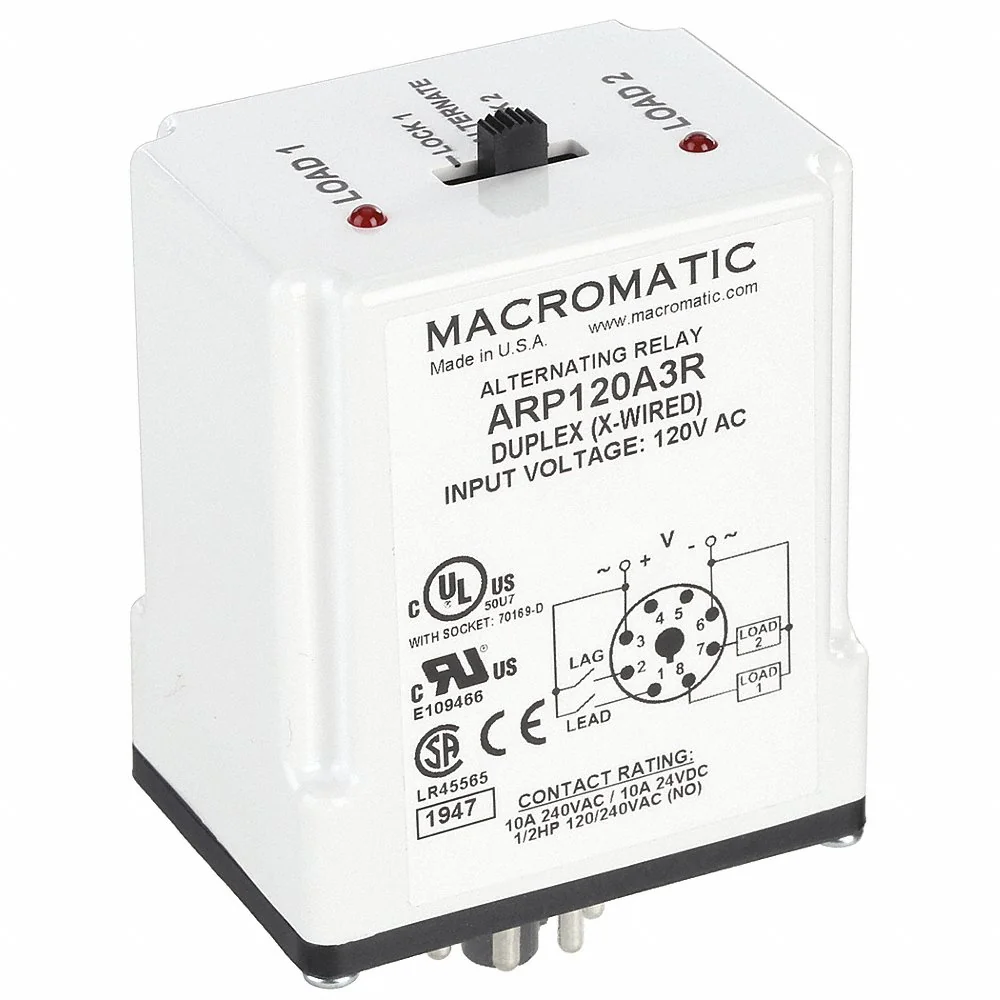

MACROMATIC ARP120A3R Alternating Relay DPDT, 120VAC, 10A, 8 Pin

Macromatic ARP120A3R alternating relay is suitable for optimising / equalising the runtime of 2 connected loads. It either alternates the load operation or locks at a single load setting for instruments having excess load requirements. This alternating relay has 120V AC / DC input rating and 10A DPDT cross-wired output contact.

Features:

• Macromatic ARP120A3R alternating relay has a three-position selector switch with load 1, alternate & load 2 positions for alternating the two loads or locking the relay to one particular load.
• The locking of one load allows continuous-duty operation and the other load's removal or maintenance without rewiring.
• The selector switch has a low profile for installation in confined spaces & preventing accidental changes.
• It is equipped with two LEDs that light up to indicate the relay's status & the load that is being energised.
• This pilot-duty-rated relay has a compact plug-in design requiring 8-pin octal sockets for proper wiring.
• It can operate at temperatures ranging from -28 to 65 degrees C (-18 to 149 degrees F).

Compatible Accessories:

• Macromatic 70169-D 8-Pin Octal Socket: This relay unit is plugged into the wired socket for powering it.
• Control Switches: The alternating action of this relay is controlled by the status of control switches like a float switch, pressure switch, timing relay or other isolated contacts.

Standards and Approvals:

• UL
• CE
• CSA

Frequently Asked Questions:

Q. What is the operating life of Macromatic ARP120A3R alternating relay?

A. This relay has a mechanical life of 10000000 operations and a full load life of 100000 operations.

Q. What is the load capability of Macromatic ARP120A3R alternating relay?

A. This relay can handle loads up to 3VA.
