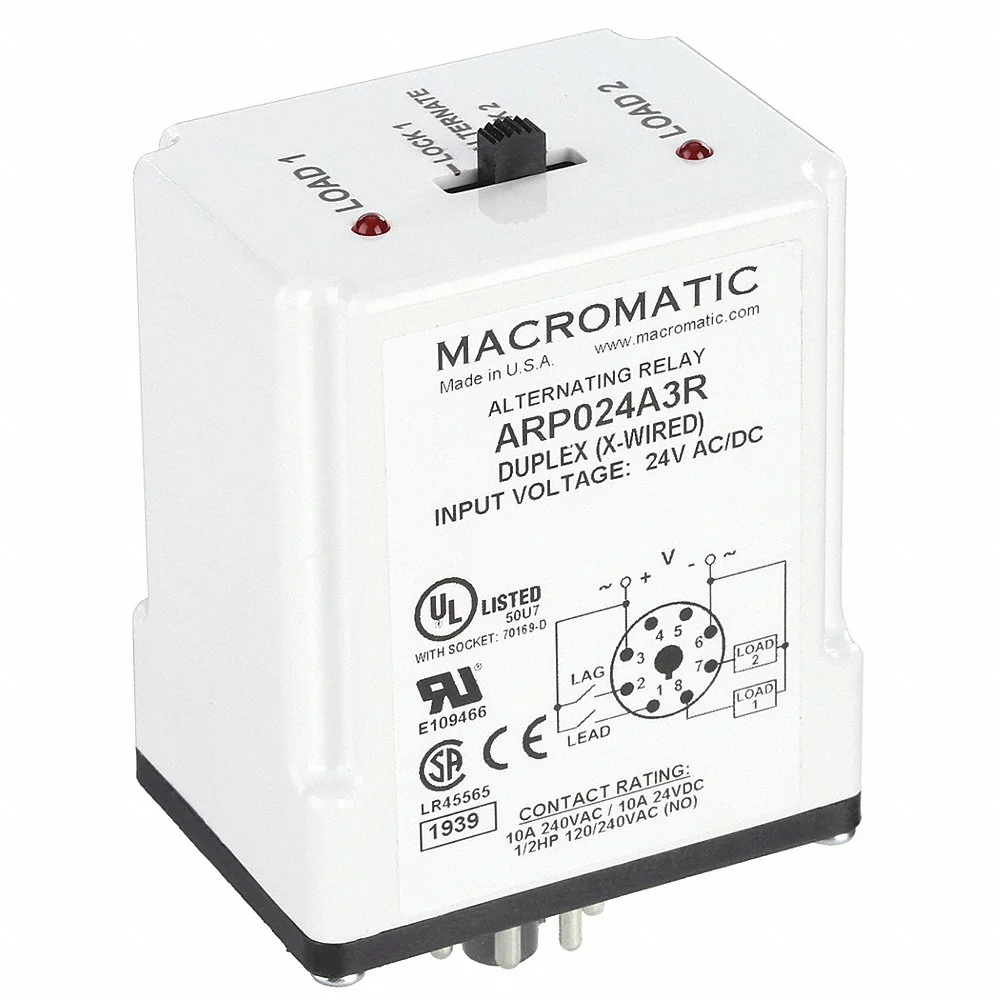

MACROMATIC ARP024A3R Alternating Relay DPDT, 24V AC/DC, 10A, 8 Pin
Item: AE9VBWModel: ARP024A3RCross Ref: 6MPN8
7 In Stock
Ships within 2 days via
5.00% off
€83.77 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Alternating Relay |
| Alternating Mode Selection Method | Selector Switch |
| Amps | 10A |
| Base Shape | Octal |
| Base Type | Octal |
| Body Depth | 2.9" |
| Body Height | 2.4" |
| Body Width | 1.7" |
| Body Width-relay | 2 2/5" |
| Burden | Less than 3VA |
| Coil Voltage | 24V AC |
| Contact Form | DPDT |
| Contact Rating (ac) | 10A @ 240V |
| Contact Rating (dc) | 10A @ 24V |
| Contact Rating @ 120 Vac | 10A |
| Contact Rating @ 240 Vac | 10A |
| Electrical Operating Durability | 100000 |
| Enclosure Style | Plug-In |
| Eu Rohs Indicator | Yes |
| Flat Pin Width | Not Applicable |
| Function | Duplexor |
| Gross Weight | 0.265 lbs. |
| Hp @ 120v | 1/3 hp |
| Hp @ 240v | 1/3 hp |
| Input Voltage | 24V AC/DC |
| Life | Mechanical 10000000 Operations |
| Max. Amps | 10A |
| Max. Input Voltage | 26V |
| Max. Input Volts | 26 |
| Max. Operating Temp. | 149°F |
| Mechanical Operating Durability | 10000000 |
| Min. Operating Temp. | -18°F |
| Mounting | Plug-In |
| Mounting Style | Plug-In |
| Mounting-relay | Plug In |
| No. Of Contacts | 2 |
| No. Of Pins | 8 |
| No. Of Pins-relay | 8 |
| Nominal Control Voltage | 24V AC |
| Number Of Contacts | 2 |
| Operating Mode | Alternate, Always Energize Load 1, Always Energize Load 2 |
| Operation | 2-Channel (Duplexor) |
| Output | DPDT Cross-Wired (3-6 Control Voltage) |
| Overall Depth | 3.1" |
| Overall Height | 3.1" |
| Power Consumption | 3 VA |
| Power Consumption-relay | 3 VA |
| Relay Mounting Style | Socket |
| Socket | 5X852 |
| Socket Code | A |
| Standard Modifications | Switch to select normal alternation or lock Loads 1 or 2 |
| Status Indicator | LED Indicates Next Load To Energize |
| Termination | 8-Pin Plug-In |
| Type | Duplex |
Shipping Info:
| Ship weight (kg) | 0.11 |
| Ship height (cm) | 6.1 |
| Ship length (cm) | 7.37 |
| Ship width (cm) | 4.32 |
| HS code | 8536490080 |
| Country of Origin | US |
Product Variants
| Product | Model | Output Amps | Coil Voltage | Max. Input Voltage | No. Of Pins | Contact Form | No. Of Contacts | Flat Pin Width | Body Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
ARP120A3R | - | 120V AC | 132V | 8 | DPDT | 2 | Not Applicable | 2.4" | €91.24 | |
 |
ARP240A3R | - | 240V AC | 264V | 8 | DPDT | 2 | Not Applicable | 2.4" | €85.74 | |
 |
ARP120A6R | - | 120V AC | 132V | 8 | SPDT | 1 | Not Applicable | 2.4" | €98.21 | |
 |
ARP012A2 | 10A | - | - | - | - | - | - | - | €103.29 | |
 |
ARP012A2R | 10A | - | - | - | - | - | - | - | €109.43 | |
 |
ARP012A3 | 10A | - | - | - | - | - | - | - | €103.29 | |
 |
ARP012A3R | 10A | - | - | - | - | - | - | - | €109.43 |
