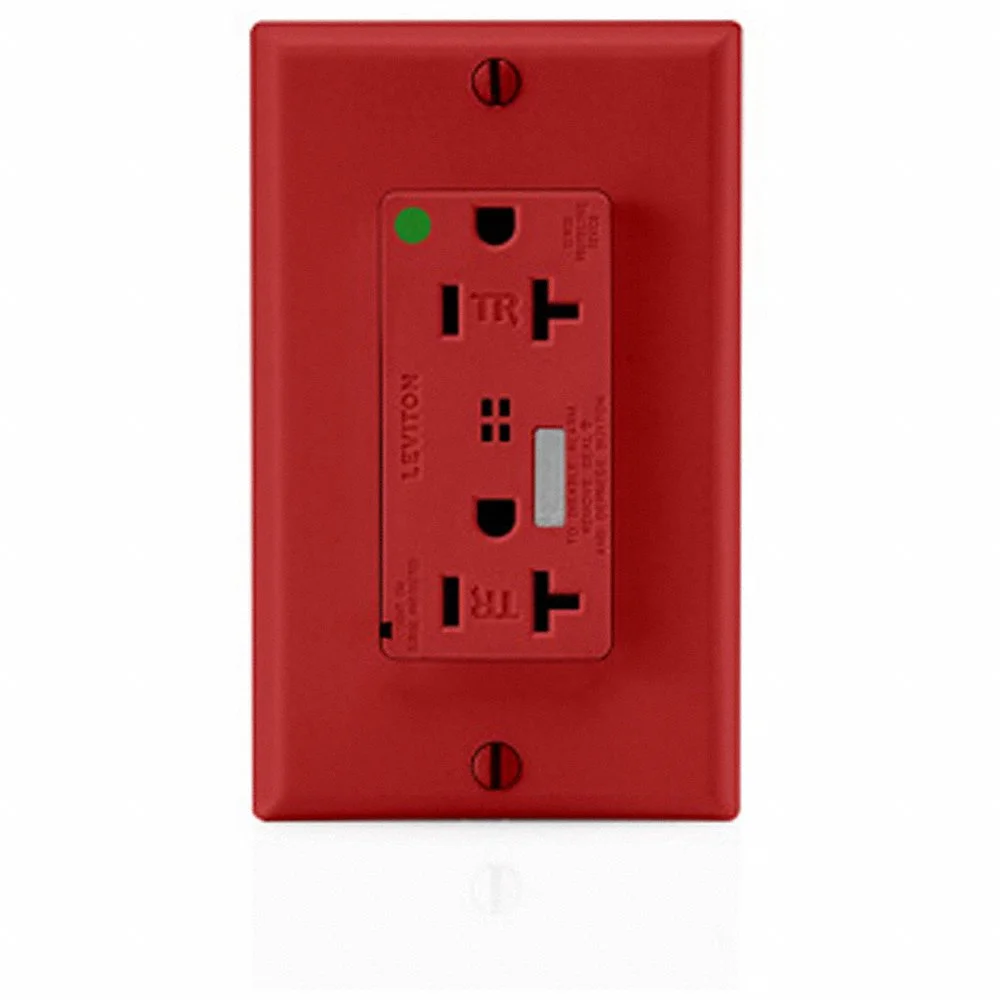

LEVITON T8380-R Receptacle, Decorator Duplex, 5-20R, 20 A, 125V AC, Red, 2 Poles, Screw Terminals
Item: CR9HTAModel: T8380-RCross Ref: 792UT5
7 In Stock
Ships within 2 days via
10.00% off
€133.00 /unit
This product can only be shipped in multiples of 10Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Receptacle |
| Amps | 20A |
| Connection Orientation | Straight |
| Cover Type | No Cover |
| Current Rating | 20A |
| Gfci | No |
| Grade | Hospital |
| Grounding | Grounded |
| Housing Color | Red |
| Includes Mounting Hardware | Yes |
| Mounting Hardware Included | Yes |
| Mounting Type | Flush |
| Nema Receptacle Configuration | NEMA 5-20R |
| Number Of Outlets | 2 |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Phase | Single |
| Polarized | Yes |
| Receptacle Type | Decorator Duplex |
| Resistance Property | General Purpose |
| Special Resistance Properties | Tamper Resistant |
| Standards | Ansi, Csa Certified, Nom Certified, Ul Listed |
| Surge Protection | Yes |
| Voltage | 125V AC |
| Voltage Rating | 125V AC |
| Wire Connection Location | Back, Side |
| Wire Connection Type | Screw Terminals |
Shipping Info:
| Ship weight (kg) | 0.16 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | MX |
Product Variants
| Product | Model | Housing Color | Grade | Grounding | Receptacle Type | Surge Protection | Current Rating | Voltage Rating | Phase | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

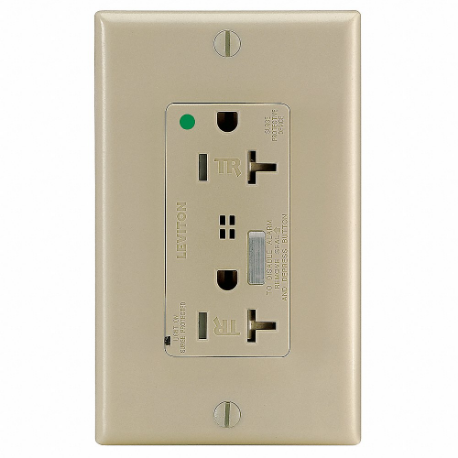

T8380-I | Ivory | Hospital | Grounded | Decorator Duplex | Yes | 20A | 125V AC | Single | €163.85 |
