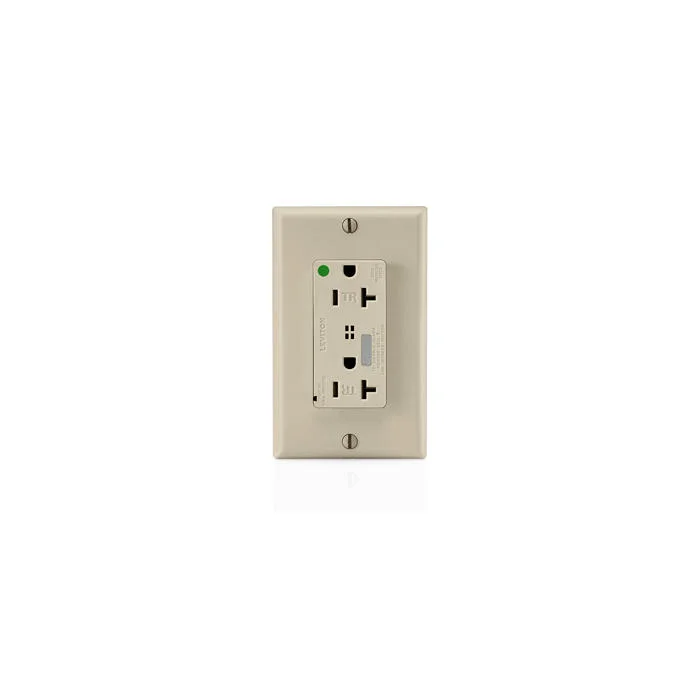

LEVITON T8380-I Type 3-Duplex Self-Grounding Tamper Resistant Surge Protective Receptacle, 125 VAC, 20 A, 2 Pole, 3 Wire
Item: CR9HRVModel: T8380-ICross Ref: 792UT4
7 In Stock
Ships within 2 days via
5.00% off
€155.66 /unit
This product can only be shipped in multiples of 10Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Receptacle |
| Amps | 20A |
| Amps Limiting | Full Rated Current |
| Body Material | Polycarbonate |
| Clamp Nuts Finish | Zinc Plated |
| Clamp Nuts Material | Steel |
| Color | Ivory |
| Connection Orientation | Straight |
| Cover Type | No Cover |
| Device Type | Duplex Receptacle Outlet |
| Dielectric Voltage | Withstands 2000V Per UL498 |
| Face Material | Nylon |
| Features | Tamper Resistant |
| Function | Surge Protective |
| Gfci | No |
| Grade | Heavy Duty Hospital Grade , Hospital |
| Ground Clips Finish | Brass Plated |
| Ground Clips Material | Steel |
| Grounding | Grounded , Self Grounding |
| Grounding Screw Finish | Brass Plated |
| Grounding Screw Material | Brass |
| Housing Color | Ivory |
| Included Mounting Hardware | Yes |
| Joules Rating | 720J |
| Line Contacts Material | Brass |
| Line Contacts Style | Triple Wipe |
| Max. Surge Amps Per Mode (per Phase) | 27 kA |
| Mcov | 150 VRMS |
| Mounting Hardware Included | Yes |
| Mounting Type | Flush |
| Nema Rating | NEMA WD-6 |
| Nema Receptacle Configuration | NEMA 5-20R |
| No. Of Outlets | 2 |
| No. Of Poles | 2 |
| No. Of Wires | 3 |
| Noise Rejection | 30 dB at 500 kHz to 30 MHz |
| Nominal Discharge Amps | 3 kA |
| Operating Temp. | -40°C to +60°C |
| Phase | 1 |
| Polarized | Yes |
| Product Datasheet | leviton-t5280-w.pdf |
| Receptacle Type | Decorator Duplex |
| Resistance Property | General Purpose |
| Screw Terminal Torque | 14 lbs.-in. to 18 lbs.-in. |
| Short Circuit Amps | 5 kA |
| Shutter Mechanism | Delrin Acetal |
| Special Resistance Properties | Tamper Resistant |
| Standards | Ansi, Csa Certified, Nom Certified, Ul Listed |
| Surge Protection | Yes |
| Temp. Rise | Max. 30°C After 250 Cycles Ol At 200 Percent Rated Current |
| Terminal Accom. | 14 AWG to 10 AWG |
| Terminal Inside Dia. | Brass Hot, Green Ground, Silver Neutral |
| Terminal Screws Finish | Brass Plated |
| Terminal Screws Material | Steel |
| Termination | Back Or Side Wire |
| Torque | 14 lbs.-in. to 16 lbs.-in. |
| Voltage | 125V AC |
| Vpr | L-N- 600V, L-G- 700V, N-G- 600V |
| Wire Connection Location | Back, Side |
| Wire Connection Type | Screw Terminal |
| Yoke Finish | Zinc Plated |
| Yoke Material | Steel |
Shipping Info:
| Ship weight (kg) | 0.16 |
| Ship height (cm) | 13.65 |
| Ship length (cm) | 32.39 |
| Ship width (cm) | 7.14 |
| Country of Origin | MX |
Documentation:
Product Variants
| Product | Model | Housing Color | Grade | Grounding | Receptacle Type | Surge Protection | Phase | Wire Connection Type | Wire Connection Location | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

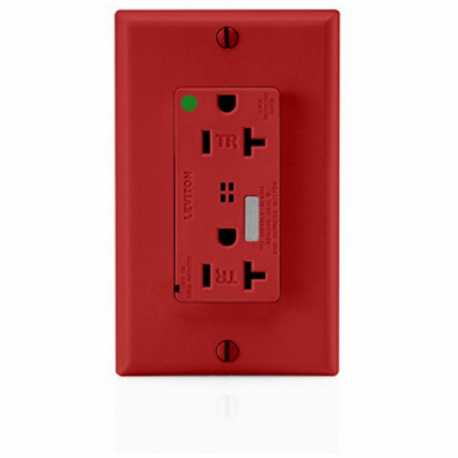

T8380-R | Red | Hospital | Grounded | Decorator Duplex | Yes | 1 | Screw Terminal | Back, Side | €147.78 |
