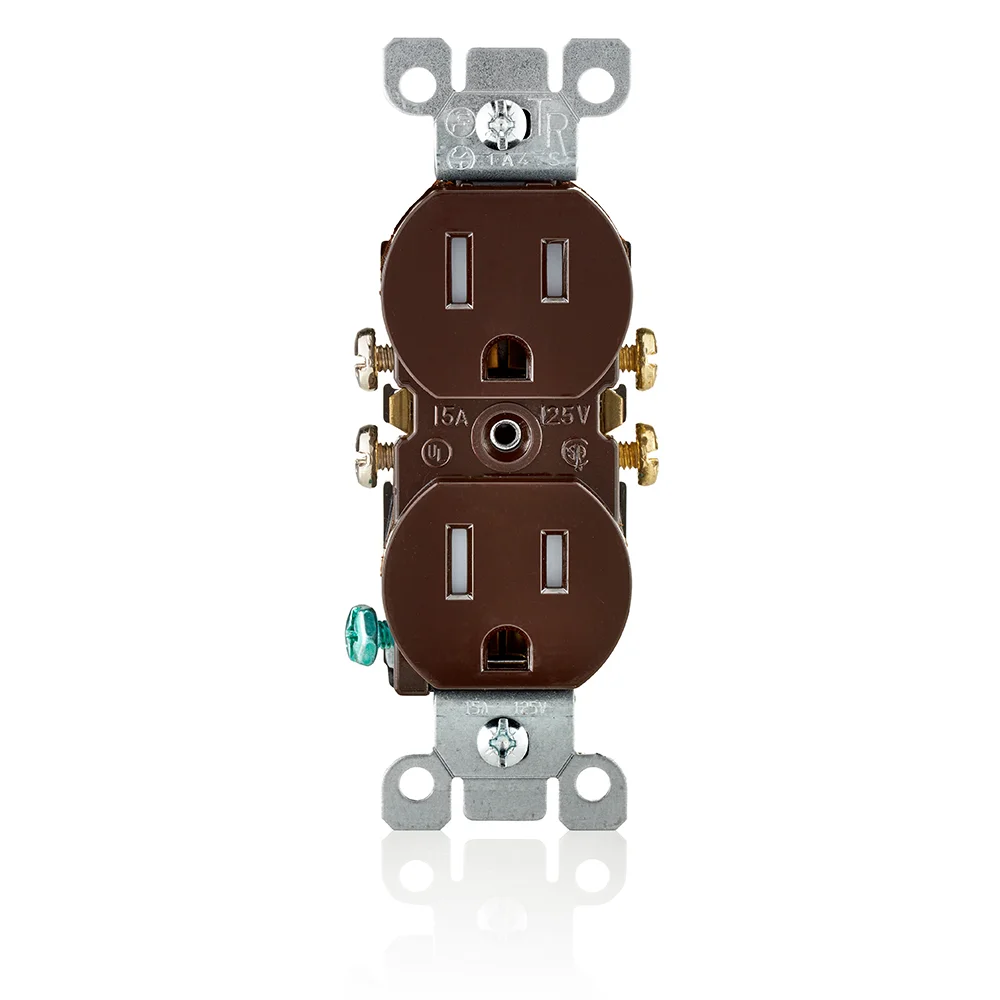

LEVITON T5320 Duplex Tamper Resistant Straight Blade Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Brown
Item: CR9HTUModel: T5320Cross Ref: 792UR3
7 In Stock
Ships within 2 days via
5.00% off
€5.64 /unit
This product can only be shipped in multiples of 200Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Receptacle |
| Amps | 15A |
| Blade Type | Straight |
| Body Material | Thermoplastic Nylon |
| Color | Brown |
| Connection Orientation | Straight |
| Cover Type | No Cover |
| Current Rating | 15A |
| Device Type | Duplex Receptacle |
| Face Plate Height | 2 4/5" |
| Face Plate Width | 1.3" |
| Features | Tamper Resistant |
| Gfci | No |
| Grade | Federal Specification |
| Grounding | Grounded , Grounding |
| Housing Color | Brown |
| Includes Mounting Hardware | Yes |
| Mount Hole Center-to-center Height | 3.3" |
| Mounting Hardware Included | Yes |
| Mounting Type | Flush |
| Nema Enclosure Rating | Not Rated |
| Nema Rating | NEMA 5-15R |
| Nema Receptacle Configuration | NEMA 5-15R |
| Number Of Outlets | 2 |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Phase | Single |
| Polarized | Yes |
| Product Datasheet | leviton-t5320.pdf |
| Receptacle Type | Duplex |
| Special Resistance | Tamper Resistant |
| Standards | Csa Certified, Nom Certified, Rohs Compliant, Ul Listed |
| Terminal Accom. | Side Wiring Accepts #10, #12 And #14 AWG Copper (CU) Or #10 And #12 Copper Clad (CC) Wire, Quickwire Push-In Terminals Accept #14 AWG Solid Copper (CU) Wire Only |
| Termination | Quickwire Push In And Side |
| Torque Range | 14 lbs.-in. to 18 lbs.-in. |
| Voltage | 125V AC |
| Voltage Rating | 125V AC |
| Wire Connection Location | Back, Side |
| Wire Connection Type | Push In |
Shipping Info:
| Ship weight (kg) | 0.45 |
| Ship height (cm) | 29.37 |
| Ship length (cm) | 48.26 |
| Ship width (cm) | 2.49 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Receptacle Type | Wire Connection Type | Number Of Poles | Number Of Wires | Housing Color | Wire Connection Location | Phase | Current Rating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
15379-C | Single | Screw Terminals | 2 | 3 | White | Back | Single | 20A | €62.36 | |
 |
GFWR1-E | Decorator Duplex | Screw Terminals | 2 | 3 | Black | Back, Side | Single | 15A | €73.60 | |
 |
GFNT1 | Decorator Duplex | Screw Terminals | 2 | 3 | Brown | Side | Single | 15A | €45.43 | |
 |
GFNT1-T | Decorator Duplex | Screw Terminals | 2 | 3 | Light Almond | Back, Side | Single | 15A | €50.06 | |
 |
GFWR1-W | Decorator Duplex | Screw Terminals | 2 | 3 | White | Back, Side | Single | 15A | €69.27 | |
 |
GFWR2-E | Decorator Duplex | Screw Terminals | 2 | 3 | Black | Back, Side | Single | 20A | €75.21 | |
 |
GFNT2 | Decorator Duplex | Screw Terminals | 2 | 3 | Brown | Back, Side | Single | 20A | €42.47 |
