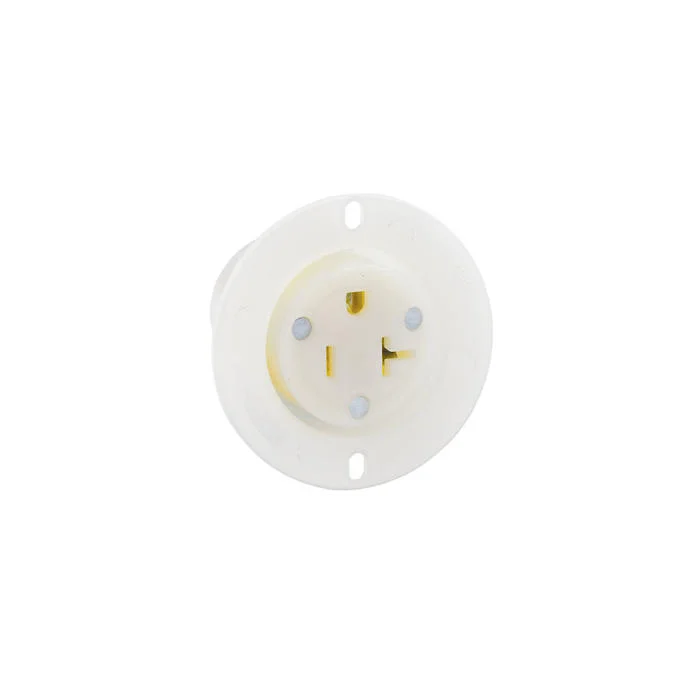

LEVITON 15379-C Grounding Locking Straight Blade Flanged Outlet Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, White
Item: CR9GYYModel: 15379-CCross Ref: 792RZ7
7 In Stock
Ships within 2 days via
5.00% off
€59.24 /unit
This product can only be shipped in multiples of 30Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Flanged Receptacle |
| Amps | 20A |
| Assembly Screws Finish | Zinc Plated |
| Assembly Screws Material | Steel |
| Blades/contacts | Solid Brass |
| Body Material | Nylon , Super Tough Nylon |
| Color | White |
| Connection Orientation | Straight |
| Contact Material | Brass |
| Cover Type | No Cover |
| Current Interrupting | Certified For Current Interrupting At Full Rated Current |
| Current Rating | 20A |
| Device Type | Straight Blade Flanged Outlet |
| Dielectric Voltage | Withstands 2000V Per UL498 |
| Environment | Dry |
| Face Dia. | 2 1/2" |
| Face Diameter | 2.5" |
| Face Material | Nylon |
| Flammability | Rated V-2 Per UL 94 |
| Gfci | No |
| Grade | Federal Specification |
| Grounding | Grounded , Grounding |
| Housing Color | White |
| Includes | Strap Material |
| Includes Mounting Hardware | Yes |
| Max. Operating Temp. | 60°C |
| Max. Wire Size | 10 AWG |
| Maximum Operating Temperature | 140°F |
| Min. Operating Temp. | -40°C |
| Minimum Operating Temperature | -40°F |
| Minimum Wire Size | 18 AWG |
| Mounting Hardware Included | Yes |
| Mounting Type | Flush |
| Nema Enclosure Rating | Not Rated |
| Nema Rating | NEMA WD-6 |
| Nema Receptacle Configuration | NEMA 5-20R |
| Number Of Outlets | 1 |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Operating Temp. | -40°C to +60°C |
| Phase | Single |
| Polarized | No |
| Receptacle Type | Single |
| Screw Terminal Torque | 10 lbs.-in. to 14 lbs.-in. |
| Special Resistance | Impact Resistant |
| Standards | Ansi C73, Csa C22.2 No. 42 File Lr-406, Nema Wd-6, Ul 498 File E13399, Ul Federal Specification Wc-596 File E13393 |
| Strap Material | Thermoplastic Nylon |
| Temp. Rise | Max. 30°C After 250 Cycles Ol At 200 Percent Rated Current |
| Terminal Accom. | 18 AWG to 10 AWG |
| Terminal Id | Brass Hot, Green Ground, Silver Neutral |
| Terminal Screws | Brass |
| Termination | Back |
| Ul 94 Flammability Rating | V-2 |
| Voltage | 125V AC |
| Voltage Rating | 125V AC |
| Wire Connection Location | Back |
| Wire Connection Type | Screw Terminals |
| Wire Module | Nylon |
Shipping Info:
| Ship weight (kg) | 0.45 |
| Ship height (cm) | 23.5 |
| Ship length (cm) | 29.21 |
| Ship width (cm) | 15.24 |
| Country of Origin | MX |
Product Variants
| Product | Model | Receptacle Type | Wire Connection Type | Number Of Poles | Number Of Wires | Housing Color | Wire Connection Location | Phase | Current Rating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
GFWR1-E | Decorator Duplex | Screw Terminals | 2 | 3 | Black | Back, Side | Single | 15A | €73.60 | |
 |
GFNT1 | Decorator Duplex | Screw Terminals | 2 | 3 | Brown | Side | Single | 15A | €45.43 | |
 |
GFNT1-T | Decorator Duplex | Screw Terminals | 2 | 3 | Light Almond | Back, Side | Single | 15A | €50.06 | |
 |
GFWR1-W | Decorator Duplex | Screw Terminals | 2 | 3 | White | Back, Side | Single | 15A | €69.27 | |
 |
GFWR2-E | Decorator Duplex | Screw Terminals | 2 | 3 | Black | Back, Side | Single | 20A | €75.21 | |
 |
GFNT2 | Decorator Duplex | Screw Terminals | 2 | 3 | Brown | Back, Side | Single | 20A | €42.47 | |
 |
GFNT2-T | Decorator Duplex | Screw Terminals | 2 | 3 | Light Almond | Back, Side | Single | 20A | €39.91 |
