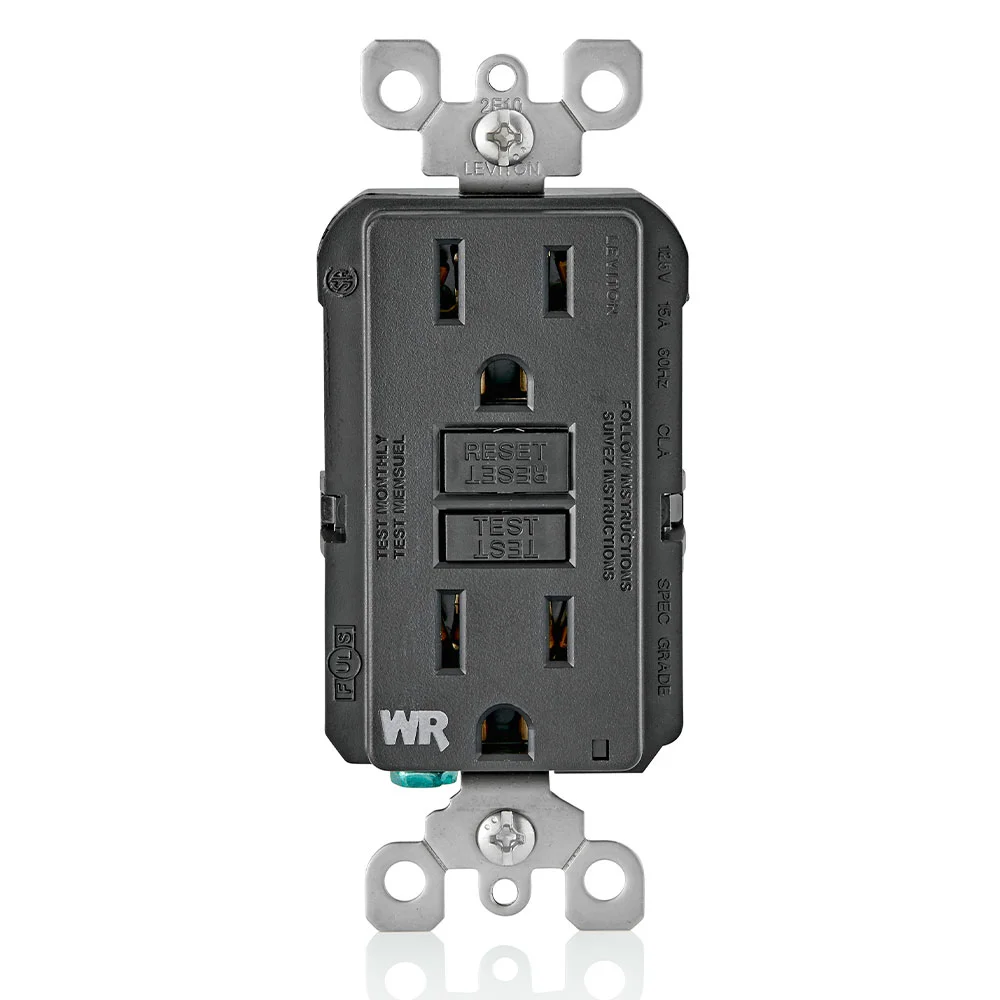

LEVITON GFWR1-E Duplex Self-Test Weather Resistant GFCI Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Black
Item: CR9HLMModel: GFWR1-ECross Ref: 792UK1
7 In Stock
Ships within 2 days via
5.00% off
€69.91 /unit
This product can only be shipped in multiples of 10Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Receptacle |
| Ac Hp Ratings At Rated Voltage | 1 hp |
| Amps | 15A |
| Body Material | Polycarbonate |
| Clamps Material | Brass |
| Color | Black |
| Connection Orientation | Straight |
| Contact Material | Brass |
| Cover Type | No Cover |
| Current Rating | 15A |
| Depth | 1.03" |
| Dielectric Voltage | Withstands 1250V AC Per UL 943 And CSA-C22.2 No. 144.1-06 |
| Face Material | Polypropylene |
| Face Plate Height | 2.7" |
| Face Plate Width | 1.3" |
| Features | Self Test |
| Gfci | Yes |
| Grade | Residential, Commercial |
| Grounding | Green Ground Screw , Grounded |
| Grounding Screw Material | Stainless Steel |
| Housing Color | Black |
| Housing Material | Polycarbonate |
| Hp | 1 hp |
| Includes Mounting Hardware | Yes |
| Line Contacts Material | Brass |
| Line Contacts Style | Double Wipe |
| Line Contacts Thickness | 0.031" |
| Max. Operating Temp. | 66°C |
| Maximum Operating Temperature | 150.8°F |
| Maximum Wire Size | 10 AWG |
| Mil-spec | A-A-55459-SB |
| Min. Wire Size | 14 AWG |
| Minimum Operating Temperature | -31°F |
| Mount Hole Center-to-center Height | 3.8" |
| Mounting Hardware Included | Yes |
| Mounting Type | Flush |
| Nema Enclosure Rating | Not Rated |
| Nema Rating | NEMA 5-15R |
| Nema Receptacle Configuration | NEMA 5-15R |
| Number Of Outlets | 2 |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Operating Temp. | -35°C to +66°C |
| Overall Depth | 1" |
| Phase | Single |
| Polarized | No |
| Product Datasheet | leviton-gftr2-gy.pdf |
| Receptacle Type | Decorator Duplex |
| Reset Type | Automatic |
| Reverse Service | Yes |
| Screw Terminal Torque | 14 lbs.-in. to 18 lbs.-in. |
| Self Testing | Yes |
| Short Circuit Current Rating | 10 kA |
| Special Resistance | Impact Resistant, Weather Resistant |
| Standards | Ansi, Csa Certified, Federal Specification, Mil-Spec, Nom Certified, Rohs Compliant, Ul Listed |
| Strap Material | Stainless Steel |
| Surge Protection | Yes |
| Tamper Resistant | No |
| Temp. Rise | Max. 30°C After 100 Cycles Ol At 150 Percent Rated Current |
| Terminal Accom. | 14 AWG to 10 AWG |
| Terminal Id | Brass Hot, Green Ground, Silver Neutral |
| Terminal Screws Material | Stainless Steel |
| Termination | Back And Side |
| Trip Level | Class A, 5 mA Plus Or Minus 1 mA |
| Type | Weather Resistant GFCI |
| Visual Indicator Lights | Power Connected |
| Voltage | 125V AC |
| Voltage Rating | 125V AC |
| Wallplate | Not Included |
| Weather Resistant | Yes |
| Wire Connection Location | Back, Side |
| Wire Connection Type | Screw Terminals |
| Yoke Material | Stainless Steel |
Shipping Info:
| Ship weight (kg) | 0.14 |
| Ship height (cm) | 12.7 |
| Ship length (cm) | 22.23 |
| Ship width (cm) | 10.69 |
| Country of Origin | CN |
Documentation:
Product Variants
| Product | Model | Receptacle Type | Wire Connection Type | Number Of Poles | Number Of Wires | Housing Color | Wire Connection Location | Phase | Current Rating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
15379-C | Single | Screw Terminals | 2 | 3 | White | Back | Single | 20A | €62.36 | |
 |
GFNT1 | Decorator Duplex | Screw Terminals | 2 | 3 | Brown | Side | Single | 15A | €45.43 | |
 |
GFNT1-T | Decorator Duplex | Screw Terminals | 2 | 3 | Light Almond | Back, Side | Single | 15A | €50.06 | |
 |
GFWR1-W | Decorator Duplex | Screw Terminals | 2 | 3 | White | Back, Side | Single | 15A | €69.27 | |
 |
GFWR2-E | Decorator Duplex | Screw Terminals | 2 | 3 | Black | Back, Side | Single | 20A | €75.21 | |
 |
GFNT2 | Decorator Duplex | Screw Terminals | 2 | 3 | Brown | Back, Side | Single | 20A | €42.47 | |
 |

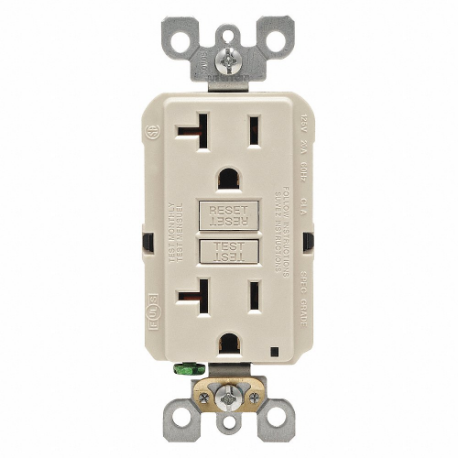

GFNT2-T | Decorator Duplex | Screw Terminals | 2 | 3 | Light Almond | Back, Side | Single | 20A | €39.91 |
