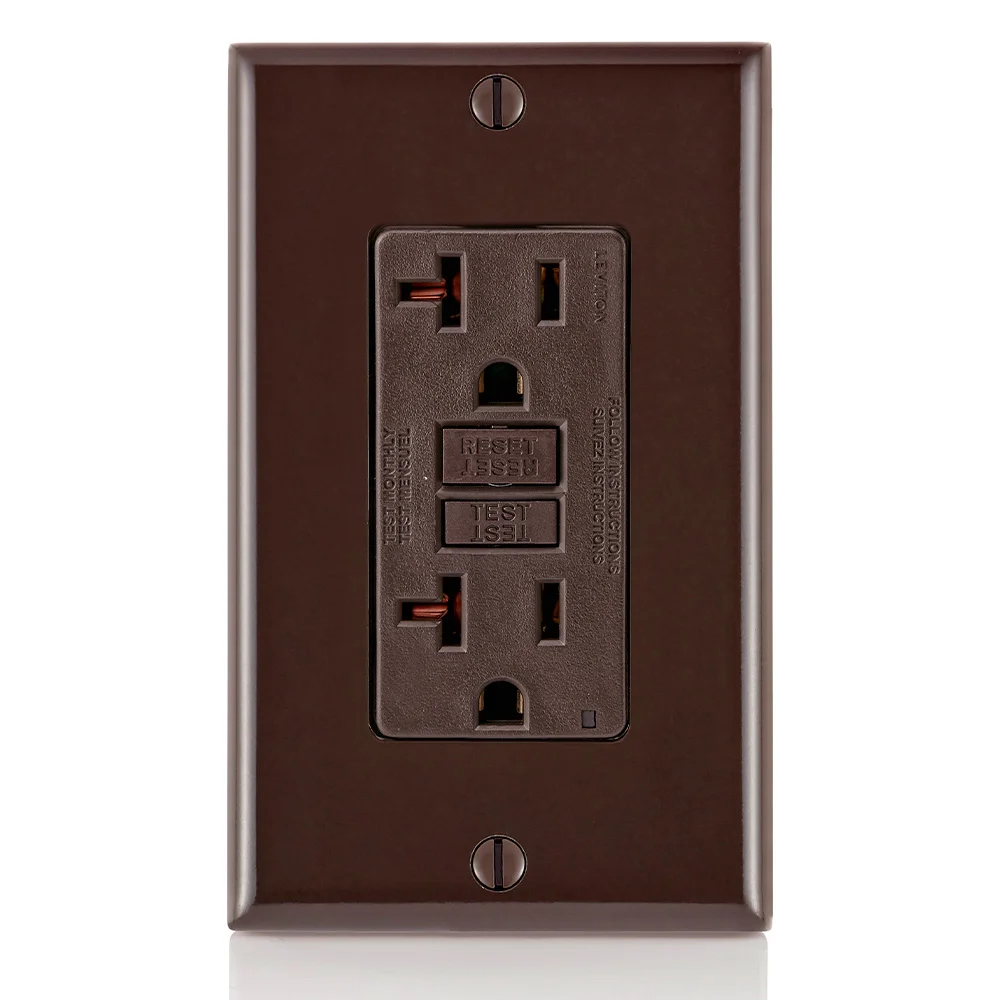

LEVITON GFNT2 Self-Test GFCI Receptacle With LED Indicator, 125 VAC, 20 A, 2 Poles, 3 Wires, Brown
Item: CR9HNEModel: GFNT2Cross Ref: 792UF0
7 In Stock
Ships within 2 days via
5.00% off
€40.35 /unit
This product can only be shipped in multiples of 10Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Receptacle |
| Ac Hp @ Rated Voltage | 1 hp |
| Amps | 20A |
| Body Material | Polycarbonate |
| Clamps Material | Brass |
| Color | Brown |
| Contact Material | Brass |
| Cover Type | No Cover |
| Dielectric Voltage | Withstands 1250V AC Per UL 943 And CSA-C22.2 No. 144.1-06 |
| Face Material | Thermoplastic |
| Features | Self Test |
| Gfci | Yes |
| Grade | Residential, Commercial |
| Grounding | Grounded , Self Grounding |
| Grounding Screw Finish | Plated |
| Grounding Screw Material | Steel |
| Housing Color | Brown |
| Housing Material | Polycarbonate |
| Hp | 1 hp |
| Included | Faceplate, Nylon Wallplate |
| Included Mounting Hardware | Yes |
| Line Contacts Material | Brass |
| Line Contacts Style | Triple Wipe |
| Line Contacts Thickness | 0.031" |
| Max. Operating Temp. | 150.8°F |
| Max. Wire Size | 10 AWG |
| Mil-spec | A-A-55459-SB |
| Min. Operating Temp. | -31°F |
| Min. Wire Size | 14 AWG |
| Mounting Hardware Included | Yes |
| Mounting Type | Flush |
| Nema Rating | NEMA 5-20R |
| Nema Receptacle Configuration | NEMA 5-20R |
| No. Of Outlets | 2 |
| No. Of Poles | 2 |
| No. Of Wires | 3 |
| Operating Temp. | -35°C to +66°C |
| Phase | 1 |
| Polarized | Yes |
| Product Datasheet | leviton-gftr2-gy.pdf |
| Receptacle Type | Decorator Duplex |
| Screw Terminal Torque | 14 lbs.-in. to 18 lbs.-in. |
| Self Testing | Yes |
| Short Circuit Amps | 10 kA |
| Strap Finish | Galvanized |
| Strap Material | Steel |
| Surge Protection | No |
| Tamper Resistant | No |
| Temp. Rise | Max. 30°C After 100 Cycles Ol At 150 Percent Rated Current |
| Terminal Accom. | 14 AWG to 10 AWG |
| Terminal Inside Dia. | Brass Hot, Green Ground, Silver Neutral |
| Terminal Screws Finish | Plated |
| Terminal Screws Material | Steel |
| Termination | Back And Side |
| Trip Level | Class A, 5 mA Plus Or Minus 1 mA |
| Type | Standard |
| Visual Indicator Lights | Power Connected |
| Voltage | 125V AC |
| Wall Plate | Included |
| Wire Connection Location | Back, Side |
| Wire Connection Type | Screw Terminal |
| Yoke Finish | Zinc Plated |
| Yoke Material | Steel |
Shipping Info:
| Ship weight (kg) | 0.16 |
| Ship height (cm) | 15.88 |
| Ship length (cm) | 23.5 |
| Ship width (cm) | 10.69 |
| Country of Origin | CN |
Documentation:
Product Variants
| Product | Model | Receptacle Type | Wire Connection Type | Housing Color | Wire Connection Location | Phase | Surge Protection | Voltage | Mounting Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
15379-C | Single | Screw Terminal | White | Back | 1 | - | 125V AC | Flush | €62.36 | |
 |
GFWR1-E | Decorator Duplex | Screw Terminal | Black | Back, Side | 1 | Yes | 125V AC | Flush | €73.60 | |
 |
GFNT1 | Decorator Duplex | Screw Terminal | Brown | Side | 1 | Yes | 125V AC | Flush | €45.43 | |
 |
GFNT1-T | Decorator Duplex | Screw Terminal | Light Almond | Back, Side | 1 | No | 125V AC | Flush | €50.06 | |
 |
GFWR1-W | Decorator Duplex | Screw Terminal | White | Back, Side | 1 | No | 125V AC | Flush | €69.27 | |
 |
GFWR2-E | Decorator Duplex | Screw Terminal | Black | Back, Side | 1 | No | 125V AC | Flush | €75.21 | |
 |
GFNT2-T | Decorator Duplex | Screw Terminal | Light Almond | Back, Side | 1 | No | 125V AC | Flush | €39.91 |
