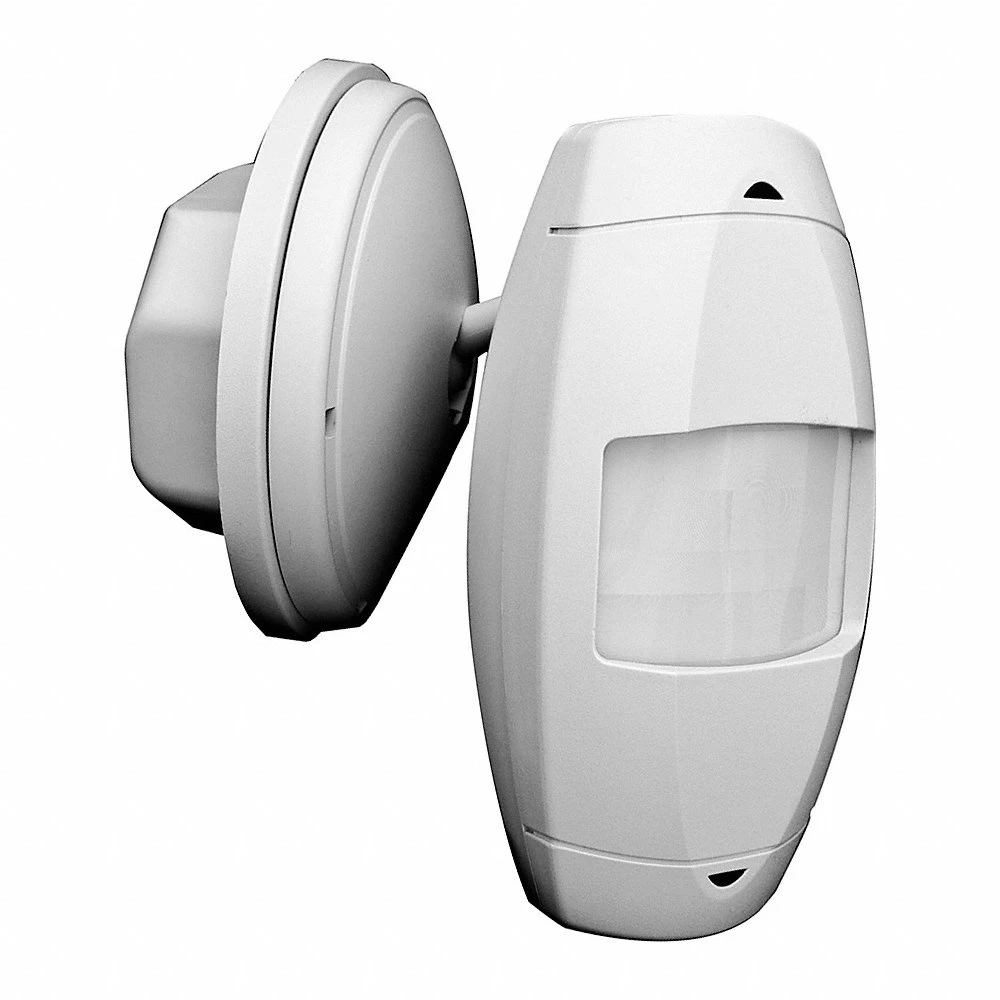

LEVITON ODWWV-IDW Zero Cross Switching Wall Mount Occupancy Sensor, 120/277 VAC, Passive Infrared Sensor, 360 Deg
Item: CR9HGEModel: ODWWV-IDWCross Ref: 791DM5
7 In Stock
Ships within 2 days via
5.00% off
€303.06 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Occupancy Sensor |
| Color | White |
| Communication Method | Hard Wired |
| Compatible With | Electronic Ballast, Incandescent Ballast, Magnetic Fluorescent Ballast |
| Coverage | 2500 sq. ft. |
| Coverage Angle | 360° |
| Frequency | 50/60 Hz |
| Included | Power Base Adapter |
| Installation Location | Wall |
| Installation Location (motion Sensor) | Wall |
| Lighting Technology | Fluorescent, Incandescent |
| Load Rating @ 120v Ac | 15A (Incandescent, Electronic, Magnetic Fluorescent Ballast, 3/4 hp Motor) |
| Max. Coverage Area | 2500 sq. ft. |
| Max. Mounting Height | 10 ft. |
| Max. Operating Temp. | 104°F |
| Max. Time Delay | 30 min. |
| Min. Mounting Height | 8 ft. |
| Min. Operating Temp. | 32°F |
| Min. Time Delay | 30 sec. |
| Mounting Type | Wall Mounted |
| Neutral Wire Connection | Required |
| Operating Voltage | 120/230/277V AC |
| Overall Depth | 1.57" |
| Overall Width | 4 1/5" |
| Product Datasheet | leviton-odw12-mdw.pdf |
| Sensing Technology | Passive Infrared |
| Sensor Operation | Occupancy |
| Sensor Technology | PIR |
| Series | ODC Series, ODW Series |
| Suggested Mounting Height | 8 ft. to 10 ft. |
| Time Delay | 30 sec. to 30 min. |
| Time Delay Adjustment Method | Automatic |
| Voltage | 120-277V AC |
| Voltage Type | Line Voltage |
Shipping Info:
| Ship weight (kg) | 0.45 |
| Ship height (cm) | 20.96 |
| Ship length (cm) | 20.96 |
| Ship width (cm) | 10.67 |
| Country of Origin | CN |
Documentation:
Product Variants
| Product | Model | Operating Voltage | Color | Mounting Type | Overall Depth | Max. Mounting Height | Overall Width | Overall Height | Coverage Angle | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
ODD10-IDW | 120-277V AC | White | Wall Switch | 1.86" | - | 2 3/25" | 4.13" | 180° | €160.27 | |
 |
ODD10-IDI | 120-277V AC | Ivory | Wall Switch | 1.86" | - | 2 3/25" | 4.13" | 180° | €160.27 | |
 |
O3C10-MDW | 120-277V AC | White | Ceiling Mount | 2.39" | 12 ft. | 4 4/5" | 2.15" | 360° | - | RFQ
|
 |
OSC10-M0W | 24V DC | White | - | 1.57" | 12 ft. | 4 1/5" | - | 360° | €226.82 | |
 |
OSW12-M0W | 24V DC | White | - | - | 10 ft. | - | - | 360° | €246.51 | |
 |
ODW12-MDW | 120/230/277V AC | White | Wall Mounted | - | 10 ft. | - | - | 360° | €362.80 | |
 |
OSWLR-I0W | 24V DC | White | Wall Mounted | 4.67" | 10 ft. | - | 6.43" | 360° | €212.30 |
