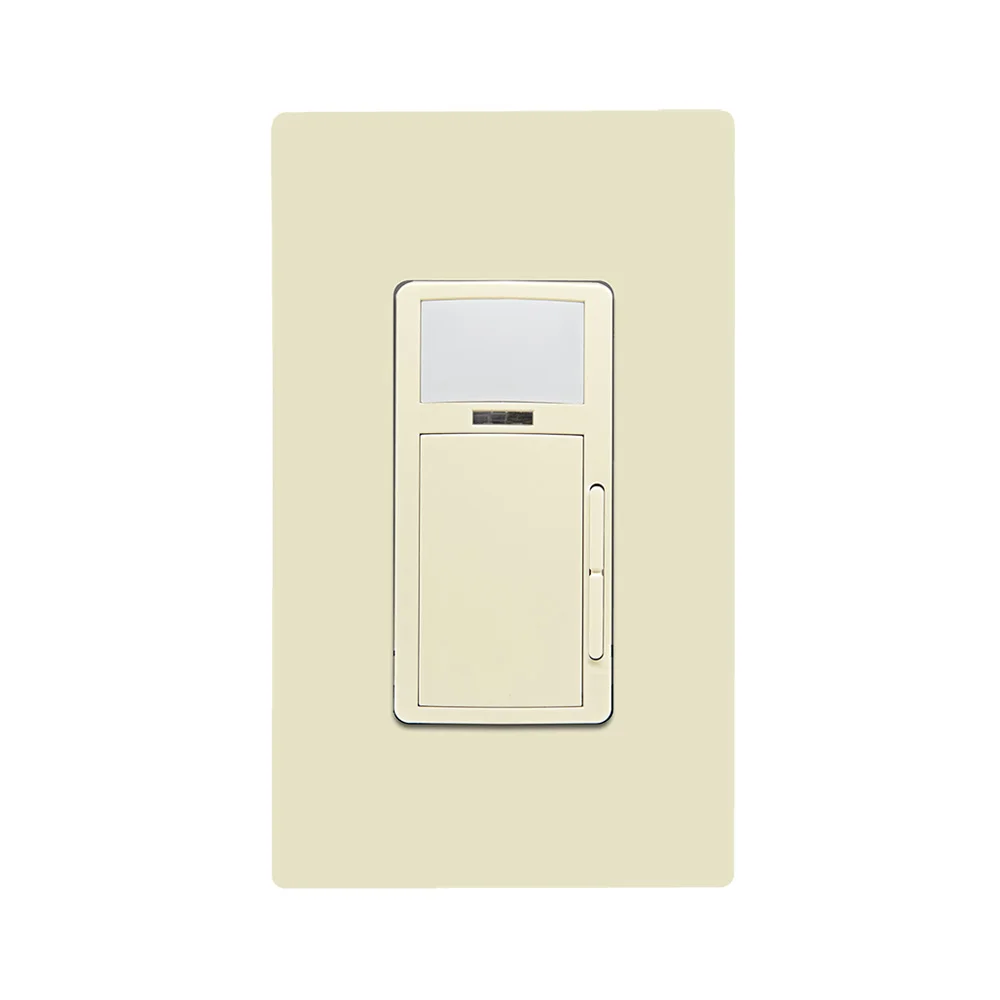

LEVITON ODD10-IDI Smart 1-Pole Dimming Wallbox Occupancy/Vacancy Sensor With App Configurable, 120/208/220/230/240/277 VAC, 1200 sq-ft
Item: CR9GYGModel: ODD10-IDICross Ref: 791DN4
7 In Stock
Ships within 2 days via
5.00% off
€152.26 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Box |
| Application | Offices, Lobbies, Small Meeting Rooms |
| Color | Ivory |
| Communication Method | Hard Wired |
| Compatible With | 0-10V Dimming Ballast |
| Compatible With Series | 0V To 10V Dimming Ballast (Universal) |
| Coverage | 1100 sq. ft. |
| Coverage Angle | 180° |
| Coverage Type | Small Motion |
| Depth | 1.86" |
| Dimming Method | 0-10V |
| Dimming Type | Full Continuous Dimming |
| Fan Rated | Yes |
| Features | App Configurable |
| Frequency | 50/60 Hz |
| Grade | Commercial |
| Height | 4.13" |
| Hp Rating | 1/4 hp |
| Includes Dimming Switch | Dimming Switch Included |
| Includes Motion Sensor | Yes |
| Includes Wall Plate | Wall Plate Not Included |
| Input Current | 120V- Stan d By- 0.2W Max- 0.5W+Load Current-277V- Stan dBy- 0.3W Max- 0.6W+Load Current |
| Install Depth | 1.42" |
| Installation Location | Wall |
| Installation Location (motion Sensor) | Wall Switch Box |
| Ip Rating | IP10 |
| Lighting Technology | Incandescent |
| Load Rating | General Purpose @ 120V- 10A-General Purpose @ 277V- 10A-LED/Electronic Ballast @ 120V- 8A, -LED/Electronic Ballast @ 277V- 5A-Standard Ballast @ 120V- 10A-Standard Ballast @ 277V- 10A-Tungsten @ 120V- 6.67A-Tungsten @ 277V- 6.67A-Motor @ 120V- 1/4 hp (FLA 5.8A)-Motor @ 277V- 1/3 hp (FLA 3.0A) |
| Load Rating @ 120v Ac | 10A (General Purpose, Standard Ballast), 5.8A FLA, 6.67A (Tungsten), 8A (Led/Electronic Ballast) |
| Load Rating @ 277v Ac | 10A (General Purpose, Standard Ballast), 3A FLA (1/3 hp Motor), 5A (LED/Electronic Ballast), 6.67A (Tungsten) |
| Manufacturer Warranty | 5 yrs. |
| Max. Capacity @ 120vac | 10A (General Purpose, LED/Electronic Ballast, Tungsten), 5A (Standard Ballast), 6.67A (1/4 hp Motor) |
| Max. Capacity @ 277vac | 10A (General Purpose, Standard Ballast), 5A (LED/Electronic Ballast), 6.67A (Tungsten), Fla 3.0A (1/3 hp Motor) |
| Maximum Coverage Area | 1100 sq. ft. |
| Maximum Detection Distance | 40 ft. |
| Maximum Operating Temperature | 104°F |
| Minimum Coverage Area | 400 sq. ft. |
| Minimum Operating Temperature | 32°F |
| Mounting Type | Wall Switch |
| Neutral Required | Yes |
| Neutral Wire Connection | Required |
| Nightlight | Yes |
| Number Of Buttons | 2 |
| Operating Temp. | 0°C to 40°C |
| Operating Voltage | 120-277V AC |
| Overall Depth | 1.86" |
| Overall Height | 4.13" |
| Overall Width | 2 3/25" |
| Pattern | 180° |
| Product Datasheet | leviton-odd10-idw.pdf |
| Rated Frequency | 50/60 Hz |
| Sensing Technology | Passive Infrared |
| Sensor Operation | Occupancy, Vacancy, Photocell, 0-10V Dimming |
| Sensor Technology | PIR |
| Sensor Type | Occupancy, Vacancy |
| Series | SMART/DECORA Series |
| Standards | Ashrae 90.1, Cul Listed, Fcc Approved, Icc, Iecc, Title 24, Part 6, Ul Listed |
| Storage Temp. | -40°F to +185°F |
| Switch Type | Single Pole |
| Voltage | 120-277V AC |
| Width | 2 3/25" |
Shipping Info:
| Ship weight (kg) | 0.16 |
| Ship height (cm) | 13.65 |
| Ship length (cm) | 32.39 |
| Ship width (cm) | 7.14 |
| Country of Origin | CN |
Documentation:
Product Variants
| Product | Model | Operating Voltage | Sensing Technology | Installation Location (motion Sensor) | Lighting Technology | Time Delay | Coverage Angle | Color | Voltage | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
ODD10-IDW | 120-277V AC | Passive Infrared | Wall Switch Box | Incandescent | - | 180° | White | 120-277V AC | €160.27 | |
 |

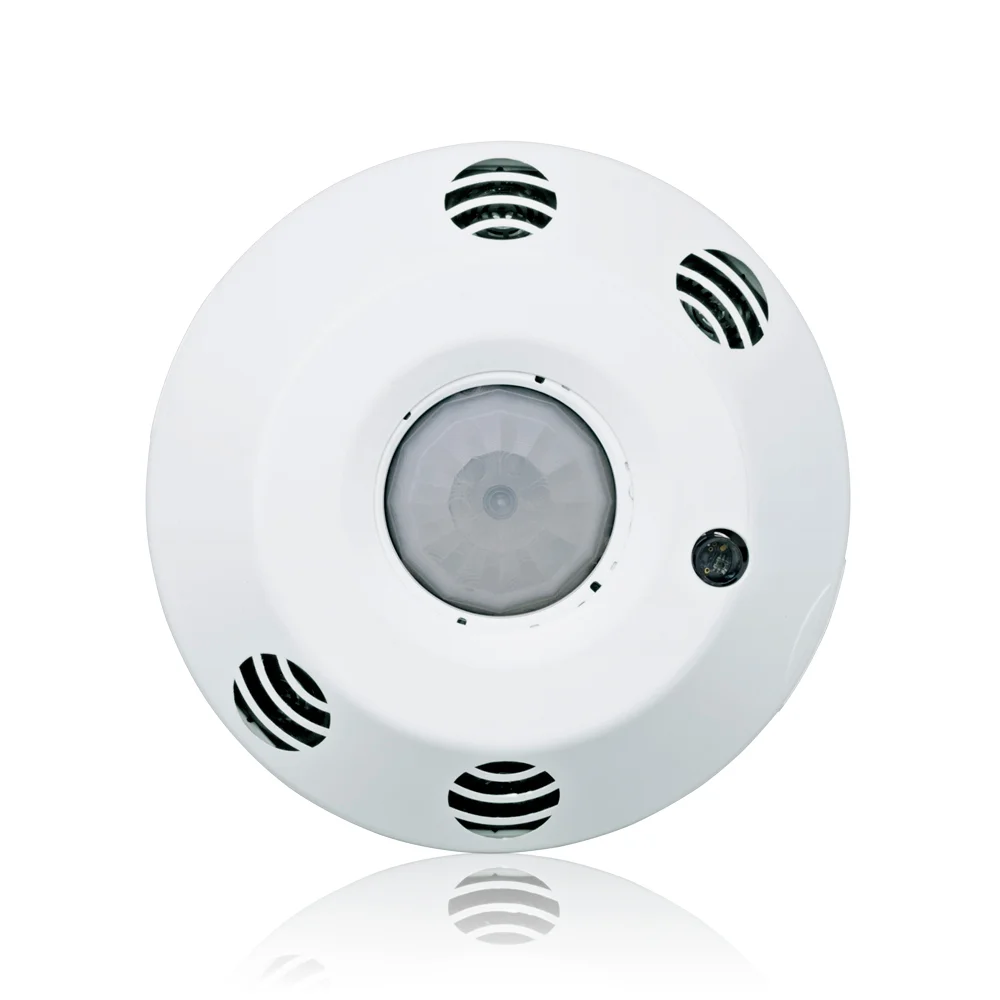

O3C10-MDW | 120-277V AC | Passive Infrared, Ultrasonic | Ceiling | Tungsten | 30 sec. to 30 min. | 360° | White | 120/230/277V AC | - | RFQ
|
 |

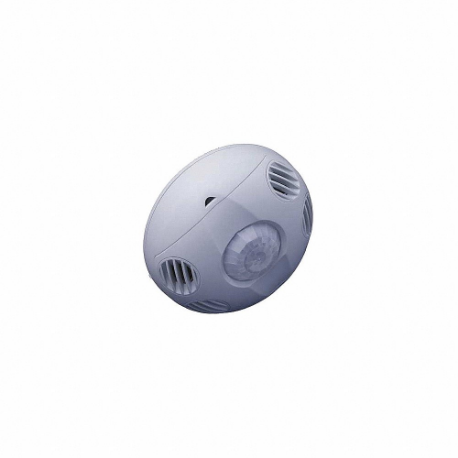

OSC10-M0W | 24V DC | Passive Infrared, Ultrasonic | Ceiling | LED | - | 360° | White | - | €226.82 | |
 |

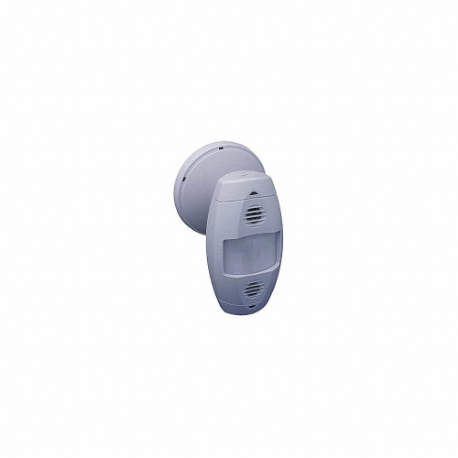

OSW12-M0W | 24V DC | Passive Infrared, Ultrasonic | Corner, Wall | LED | 30 sec. to 30 min. | 360° | White | 24V DC | €246.51 | |
 |

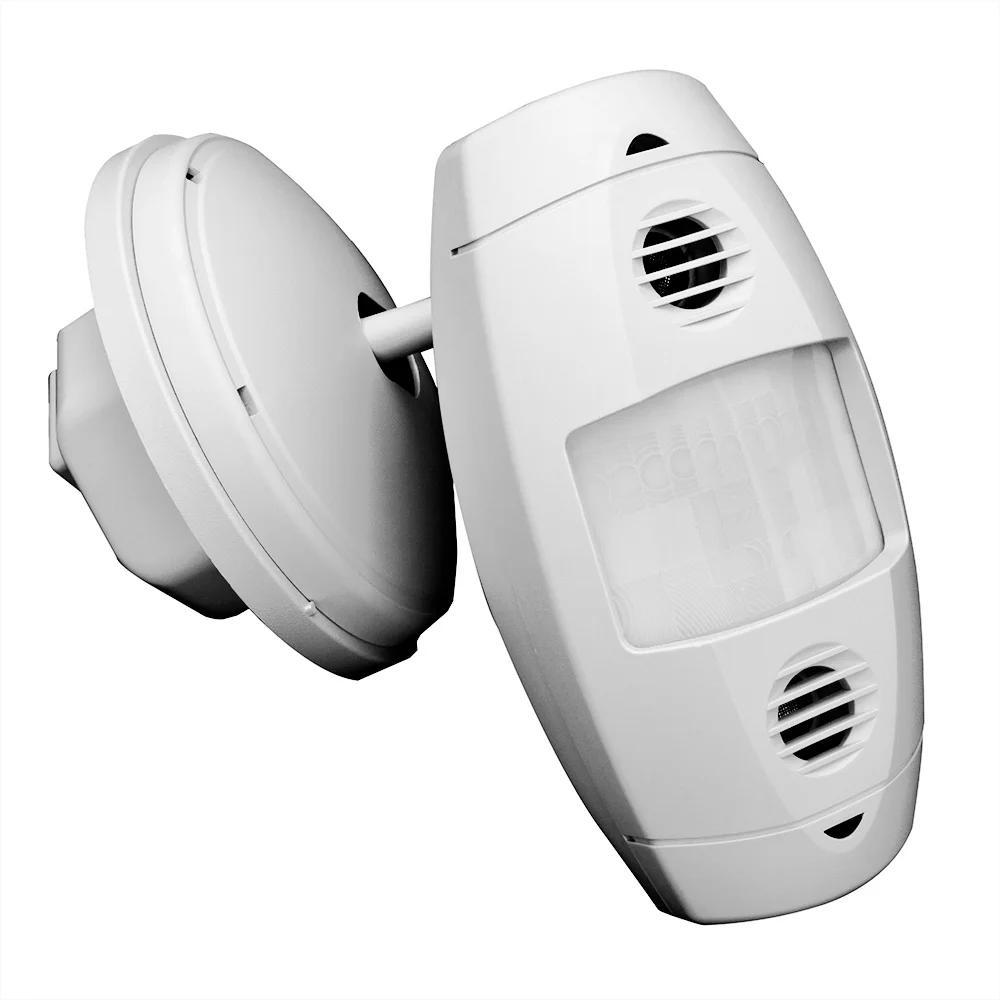

ODW12-MDW | 120/230/277V AC | Passive Infrared, Ultrasonic | Wall | Fluorescent, Incandescent | 30 sec. to 30 min. | 360° | White | 120-277V AC | €362.80 | |
 |

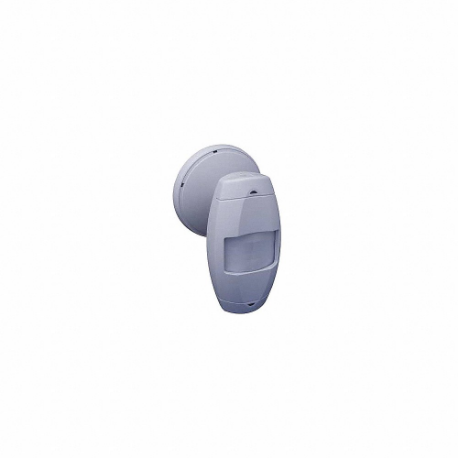

OSWLR-I0W | 24V DC | Passive Infrared | Wall | LED | 30 sec. to 30 min. | 360° | White | 24V DC | €212.30 | |
 |

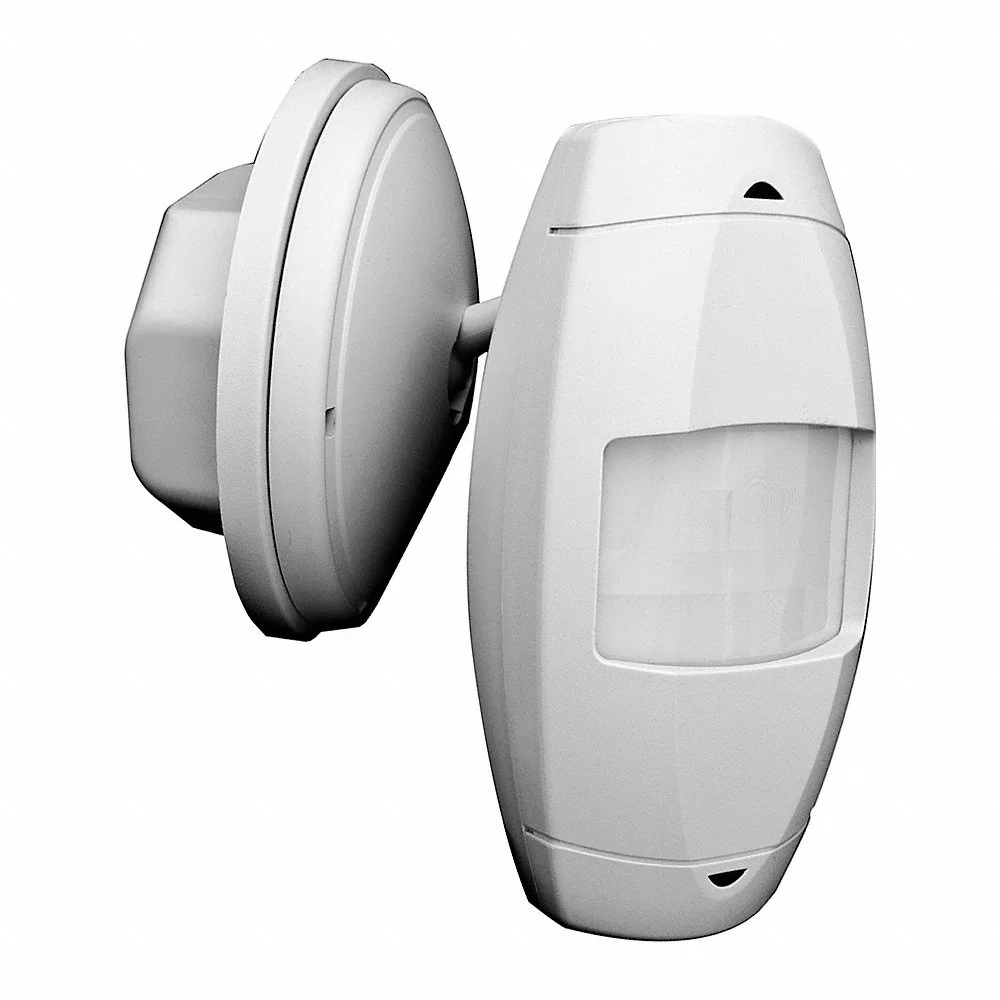

ODWLR-IDW | 120/230/277V AC | Passive Infrared | Wall | Fluorescent, Incandescent | 30 sec. to 30 min. | 360° | - | - | €323.76 |
