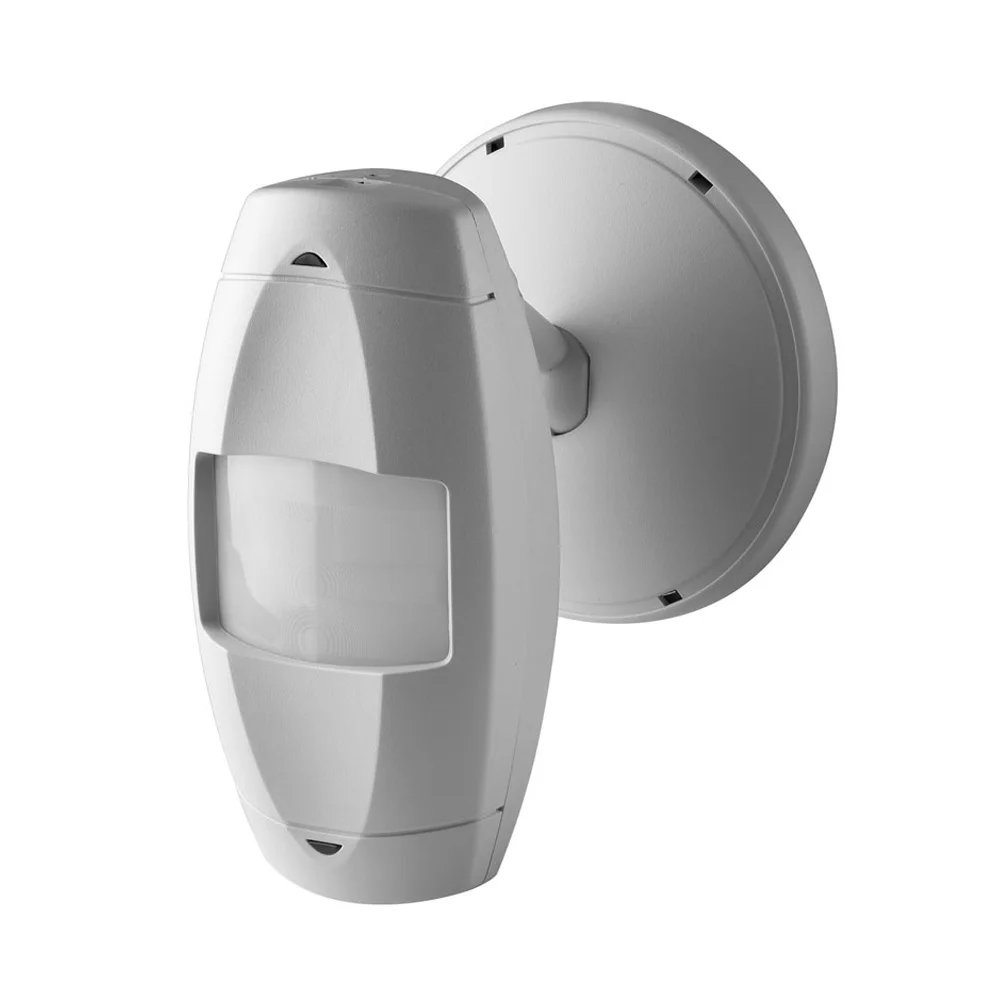

LEVITON OSWLR-I0W Hard Wired, Wall, 1400 sq ft Coverage at Suggested Mounting Height, 24 VDC, White
Item: CR9HEZModel: OSWLR-I0WCross Ref: 791DM8
7 In Stock
Ships within 2 days via
10.00% off
€191.07 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Motion Sensor |
| Color | White |
| Communication Method | Hard Wired |
| Coverage Angle | 360° |
| Height | 6.43" |
| Includes | (2) #8-32 Washer And Nut, (2) #8-32X1-1/2 In Screw, (2) #8-32X1/2 In Screw |
| Installation Location | Wall |
| Installation Location (motion Sensor) | Wall |
| Lighting Technology | LED |
| Load Rating @ 120v Ac | Dependent On Control Unit Rating |
| Manufacturer Warranty | 5 yrs. Limited |
| Maximum Coverage Area | 1400 sq. ft. |
| Maximum Mounting Height | 10 ft. |
| Maximum Operating Temperature | 104°F |
| Maximum Time Delay | 30 min. |
| Minimum Mounting Height | 8 ft. |
| Minimum Operating Temperature | 32°F |
| Minimum Time Delay | 30 sec. |
| Mounting Height | 8 ft. to 10 ft. |
| Mounting Type | Wall Mount |
| Operating Temp. | 32°F to 104°F |
| Operating Voltage | 24V DC |
| Overall Depth | 4.67" |
| Overall Height | 6.43" |
| Sensing Technology | Passive Infrared |
| Sensor Operation | Occupancy, Photocell |
| Standards | Cul/Nom/Ance Listed |
| Suggested Mounting Height | 8 ft. to 10 ft. |
| Time Delay Adjustment Method | Automatic |
| Voltage | 24V DC |
| Voltage Type | Low Voltage |
Shipping Info:
| Ship weight (kg) | 0.34 |
| Ship height (cm) | 16.33 |
| Ship length (cm) | 11.86 |
| Ship width (cm) | 2.54 |
| Country of Origin | CN |
Product Variants
| Product | Model | Operating Voltage | Sensing Technology | Installation Location (motion Sensor) | Lighting Technology | Time Delay | Coverage Angle | Color | Voltage | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
ODD10-IDW | 120-277V AC | Passive Infrared | Wall Switch Box | Incandescent | - | 180° | White | 120-277V AC | €160.27 | |
 |
ODD10-IDI | 120-277V AC | Passive Infrared | Wall Switch Box | Incandescent | - | 180° | Ivory | 120-277V AC | €160.27 | |
 |
O3C10-MDW | 120-277V AC | Passive Infrared, Ultrasonic | Ceiling | Tungsten | 30 sec. to 30 min. | 360° | White | 120/230/277V AC | - | RFQ
|
 |
OSC10-M0W | 24V DC | Passive Infrared, Ultrasonic | Ceiling | LED | - | 360° | White | - | €226.82 | |
 |
OSW12-M0W | 24V DC | Passive Infrared, Ultrasonic | Corner, Wall | LED | 30 sec. to 30 min. | 360° | White | 24V DC | €246.51 | |
 |
ODW12-MDW | 120/230/277V AC | Passive Infrared, Ultrasonic | Wall | Fluorescent, Incandescent | 30 sec. to 30 min. | 360° | White | 120-277V AC | €362.80 | |
 |
ODWLR-IDW | 120/230/277V AC | Passive Infrared | Wall | Fluorescent, Incandescent | 30 sec. to 30 min. | 360° | - | - | €323.76 |
