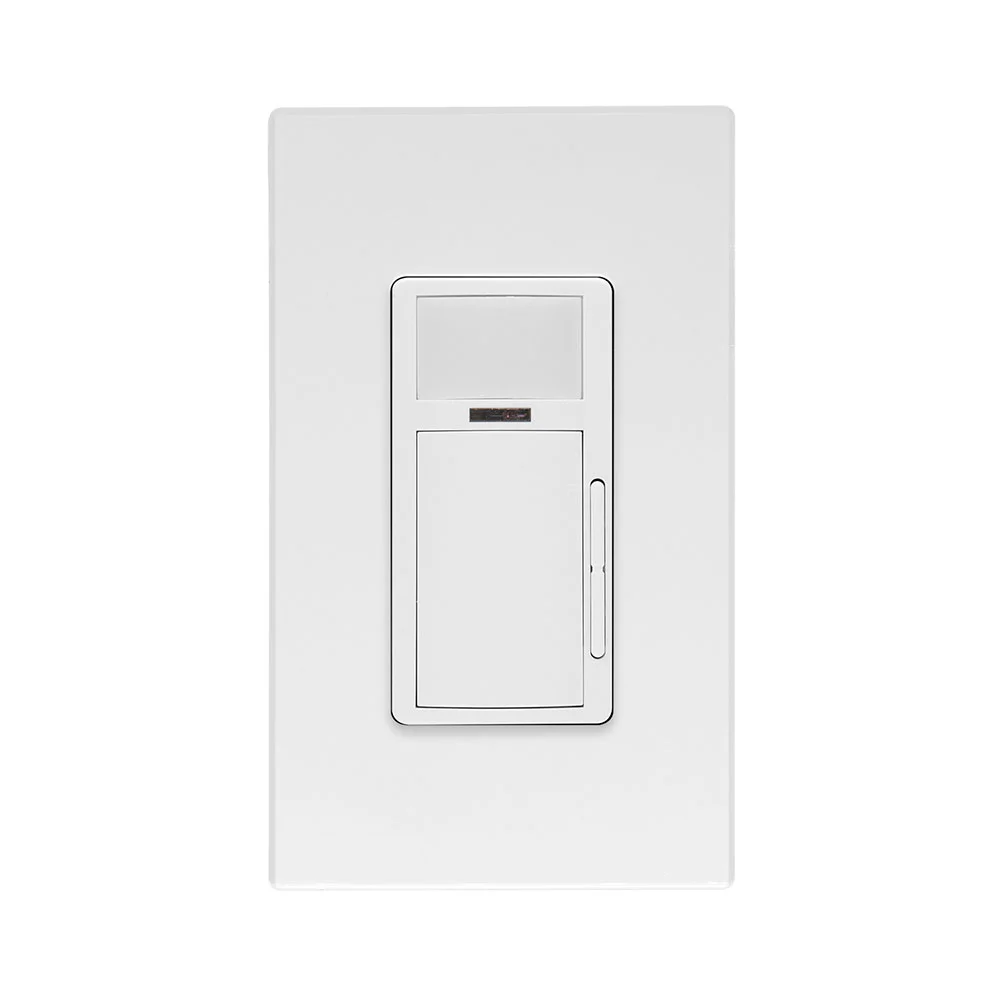

LEVITON ODD10-IDW Smart Sensor, PIR, Antimicrobial, 0-10V Dimming Wallbox Occupancy Sensor/Vacancy Sensor, 120-277VAC, White
Item: CR9GYFModel: ODD10-IDWCross Ref: 791DN5
7 In Stock
Ships within 2 days via
5.00% off
€152.26 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Box |
| Application | Offices, Lobbies, Small Meeting Rooms |
| Color | White |
| Communication Method | Hard Wired |
| Compatible With | 0-10V Dimming Ballast |
| Compatible With Series | 0V To 10V Dimming Ballast (Universal) |
| Coverage | 1100 sq. ft. |
| Coverage Angle | 180° |
| Coverage Type | Small Motion |
| Depth | 1.86" |
| Dimming Method | 0-10V |
| Dimming Type | Full Continuous Dimming |
| Fan Rated | Yes |
| Features | App Configurable |
| Frequency | 50/60 Hz |
| Grade | Commercial |
| Height | 4.13" |
| Hp | 1/4 hp |
| Included Dimming Switch | Dimming Switch Included |
| Included Motion Sensor | Yes |
| Included Wall Plate | Wall Plate Not Included |
| Input Amps | 120V- Stan d By- 0.2W Max- 0.5W+Load Current-277V- Stan dBy- 0.3W Max- 0.6W+Load Current |
| Install Depth | 1.42" |
| Installation Location | Wall |
| Installation Location (motion Sensor) | Wall Switch Box |
| Ip Rating | IP10 |
| Lighting Technology | Incandescent |
| Load Rating | General Purpose @ 120V- 10A-General Purpose @ 277V- 10A-LED/Electronic Ballast @ 120V- 8A, -LED/Electronic Ballast @ 277V- 5A-Standard Ballast @ 120V- 10A-Standard Ballast @ 277V- 10A-Tungsten @ 120V- 6.67A-Tungsten @ 277V- 6.67A-Motor @ 120V- 1/4 hp (FLA 5.8A)-Motor @ 277V- 1/3 hp (FLA 3.0A) |
| Load Rating @ 120v Ac | 10A (General Purpose, Standard Ballast), 5.8A FLA, 6.67A (Tungsten), 8A (Led/Electronic Ballast) |
| Load Rating @ 277v Ac | 10A (General Purpose, Standard Ballast), 3A FLA (1/3 hp Motor), 5A (LED/Electronic Ballast), 6.67A (Tungsten) |
| Max. Capacity @ 120v | 10A (General Purpose, LED/Electronic Ballast, Tungsten), 5A (Standard Ballast), 6.67A (1/4 hp Motor) |
| Max. Capacity @ 277v | 10A (General Purpose, Standard Ballast), 5A (LED/Electronic Ballast), 6.67A (Tungsten), Fla 3.0A (1/3 hp Motor) |
| Max. Coverage Area | 1100 sq. ft. |
| Max. Detection Distance | 40 ft. |
| Max. Operating Temp. | 104°F |
| Min. Coverage Area | 400 sq. ft. |
| Min. Operating Temp. | 32°F |
| Mounting Type | Wall Switch |
| Neutral Required | Yes |
| Neutral Wire Connection | Required |
| Night Light | Yes |
| No. Of Buttons | 2 |
| Operating Temp. | 0°C to 40°C |
| Operating Voltage | 120-277V AC |
| Overall Depth | 1.86" |
| Overall Height | 4.13" |
| Overall Width | 2 3/25" |
| Pattern | 180° |
| Product Datasheet | leviton-odd10-idw.pdf |
| Sensing Technology | Passive Infrared |
| Sensor Operation | Occupancy, Vacancy, Photocell, 0-10V Dimming |
| Sensor Technology | PIR |
| Sensor Type | Occupancy, Vacancy |
| Series | SMART/DECORA Series |
| Storage Temp. | -40°F to +185°F |
| Switch Type | Single Pole |
| Voltage | 120-277V AC |
| Width | 2 3/25" |
Shipping Info:
| Ship weight (kg) | 0.18 |
| Ship height (cm) | 13.65 |
| Ship length (cm) | 32.39 |
| Ship width (cm) | 7.14 |
| Country of Origin | CN |
Documentation:
Product Variants
| Product | Model | Operating Voltage | Color | Mounting Type | Overall Depth | Max. Mounting Height | Overall Width | Overall Height | Coverage Angle | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
ODD10-IDI | 120-277V AC | Ivory | Wall Switch | 1.86" | - | 2 3/25" | 4.13" | 180° | €160.27 | |
 |
O3C10-MDW | 120-277V AC | White | Ceiling Mount | 2.39" | 12 ft. | 4 4/5" | 2.15" | 360° | - | RFQ
|
 |
OSC10-M0W | 24V DC | White | - | 1.57" | 12 ft. | 4 1/5" | - | 360° | €226.82 | |
 |
OSW12-M0W | 24V DC | White | - | - | 10 ft. | - | - | 360° | €246.51 | |
 |
ODW12-MDW | 120/230/277V AC | White | Wall Mounted | - | 10 ft. | - | - | 360° | €362.80 | |
 |
OSWLR-I0W | 24V DC | White | Wall Mounted | 4.67" | 10 ft. | - | 6.43" | 360° | €212.30 | |
 |
ODWLR-IDW | 120/230/277V AC | - | - | - | 10 ft. | - | - | 360° | €323.76 |
