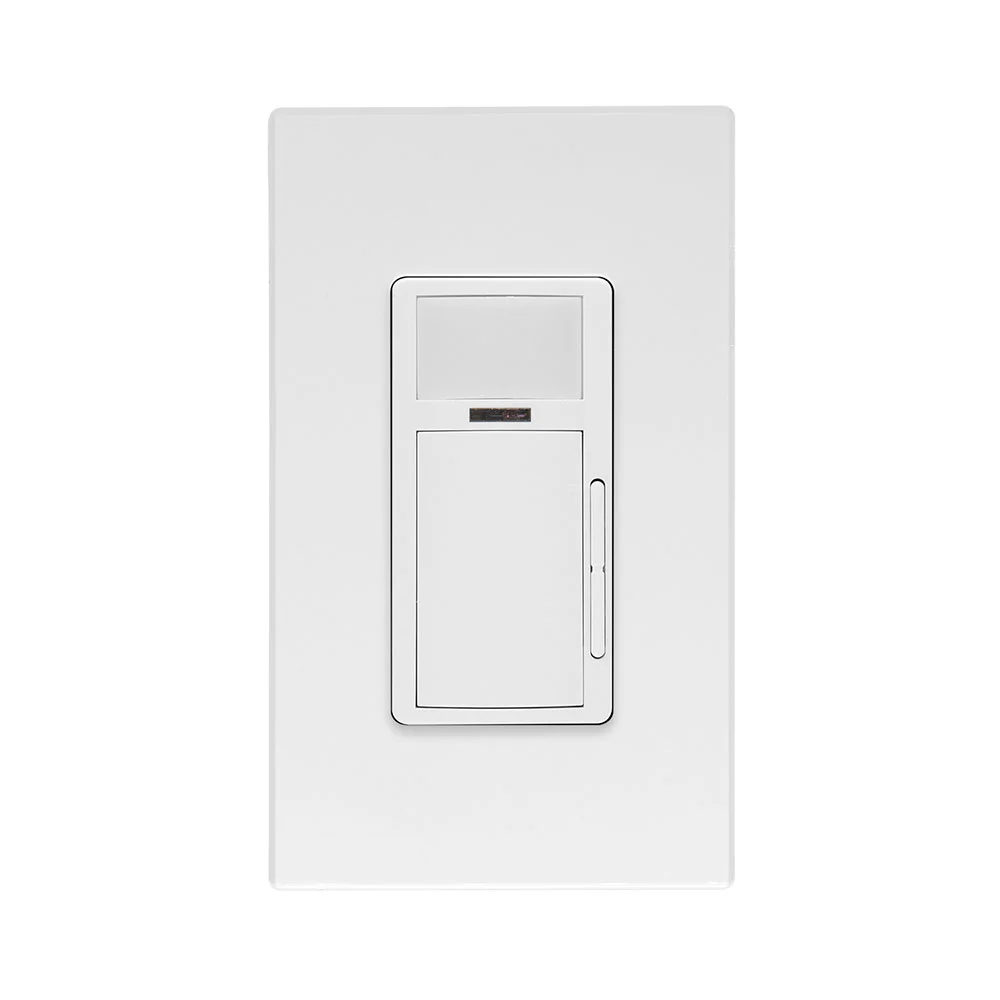

LEVITON ODD24-IDW Smart Dimming Wallbox Occupancy Sensor, 12 to 24 VDC, 1200 sq-ft Coverage, 180 Deg Viewing, Wall Mount, 1 Pole
Item: CR9HGGModel: ODD24-IDWCross Ref: 791DR6
7 In Stock
Ships within 2 days via
5.00% off
€134.34 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Occupancy Sensor |
| Application | Small Offices, Lobbies, Small Meeting Rooms |
| Color | White |
| Communication Method | Hard Wired |
| Compatible With Series | 0V To 10V Dimming Ballast (Universal) |
| Coverage | 1100 sq. ft. |
| Coverage Angle | 180° |
| Coverage Type | Small Motion |
| Depth | 1.86" |
| Dimming Method | 0-10V |
| Dimming Type | Full Continuous Dimming |
| Fan Rated | No |
| Features | App Configurable |
| Frequency | 50/60 Hz |
| Grade | Commercial |
| Height | 4.13" |
| Included Dimming Switch | Dimming Switch Included |
| Included Motion Sensor | Yes |
| Included Wall Plate | Wall Plate Not Included |
| Input Amps | 24-0.02A, 120-277V |
| Install Depth | 1.42" |
| Installation Location | Wall |
| Installation Location (motion Sensor) | Wall Switch Box |
| Ip Rating | IP10 |
| Load Rating @ 120v Ac | Low Voltage Sensor (24V DC), Power Packs Witches Lighting Load, Requires Power Pack For 24V DC Input Voltage |
| Max. Coverage Area | 1100 sq. ft. |
| Max. Detection Distance | 40 ft. |
| Max. Operating Temp. | 104°F |
| Min. Coverage Area | 400 sq. ft. |
| Min. Operating Temp. | 32°F |
| Mounting Type | Wall Switch |
| Neutral Required | No |
| Neutral Wire Connection | Not Required |
| Night Light | Yes |
| No. Of Buttons | 2 |
| Operating Temp. | 0°C to 40°C |
| Operating Voltage | 120/230/277V AC |
| Overall Depth | 1.86" |
| Overall Height | 4.13" |
| Overall Width | 2 3/25" |
| Pattern | 180° |
| Product Datasheet | leviton-odd24-idw.pdf |
| Sensing Technology | Passive Infrared |
| Sensor Operation | Occupancy, Vacancy, Photocell, 0-10V Dimming |
| Sensor Technology | PIR |
| Sensor Type | Occupancy, Vacancy |
| Series | SMART/DECORA Series |
| Storage Temp. | -40°F to +185°F |
| Switch Type | Single Pole |
| Time Delay | Adjustable |
| Voltage | 12-24V DC |
| Width | 2 3/25" |
Shipping Info:
| Ship weight (kg) | 0.14 |
| Ship height (cm) | 13.65 |
| Ship length (cm) | 32.39 |
| Ship width (cm) | 7.14 |
| Country of Origin | CN |
Documentation:
Product Variants
| Product | Model | Operating Voltage | Color | Mounting Type | Overall Depth | Max. Mounting Height | Overall Width | Overall Height | Coverage Angle | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
ODD10-IDW | 120-277V AC | White | Wall Switch | 1.86" | - | 2 3/25" | 4.13" | 180° | €160.27 | |
 |
ODD10-IDI | 120-277V AC | Ivory | Wall Switch | 1.86" | - | 2 3/25" | 4.13" | 180° | €160.27 | |
 |
O3C10-MDW | 120-277V AC | White | Ceiling Mount | 2.39" | 12 ft. | 4 4/5" | 2.15" | 360° | - | RFQ
|
 |
OSC10-M0W | 24V DC | White | - | 1.57" | 12 ft. | 4 1/5" | - | 360° | €226.82 | |
 |
OSW12-M0W | 24V DC | White | - | - | 10 ft. | - | - | 360° | €246.51 | |
 |
ODW12-MDW | 120/230/277V AC | White | Wall Mounted | - | 10 ft. | - | - | 360° | €362.80 | |
 |
OSWLR-I0W | 24V DC | White | Wall Mounted | 4.67" | 10 ft. | - | 6.43" | 360° | €212.30 |
