LEVITON ML2-AP Locking Plug, ML2-15P, 125V AC, 15 A, 2 Poles, Black/White, Screw Terminals
Item: CR9HDTModel: ML2-APCross Ref: 792UN3
7 In Stock
Ships within 2 days via
10.00% off
€41.46 /unit
This product can only be shipped in multiples of 20Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Locking Plug |
| Amps | 15A |
| Body Material | Nylon |
| Connection Orientation | Angled |
| Current Rating | 15A |
| Environment | Dry |
| Face Dia. | 1.03" |
| For Environment | Dry |
| For Maximum Cable Diameter | 0.43" |
| For Minimum Cable Diameter | 0.218" |
| Grade | Federal Specification |
| Grounding | Grounded |
| Housing Color | Black, White |
| Housing Material | Nylon |
| Ip Rating | Not Rated |
| Market | Industrial |
| Max. Wire Size | 14 AWG |
| Maximum Operating Temperature | 60°C |
| Midget Locking | Yes |
| Min. Operating Temp. | -40°C |
| Min. Wire Size | 18 AWG |
| Nema Plug Configuration | ML2-15P |
| No. Of Wires | 3 |
| Number Of Blades | 3 |
| Number Of Poles | 2 |
| Phase | Single |
| Polarized | Yes |
| Resistance Properties | Chemical Resistant, Impact Resistant, UV/Sunlight Resistant |
| Shrouded | No |
| Ul 94 Flammability Rating | HB |
| Voltage | 125V AC |
| Voltage Rating | 125V AC |
| Wire Connection Type | Screw Terminals |
| Wiring Style | Standard |
Shipping Info:
| Ship weight (kg) | 0.5 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | MX |
Product Variants
| Product | Model | Connection Orientation | Number Of Poles | Number Of Blades | Housing Color | Current Rating | Voltage Rating | Phase | Grade | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

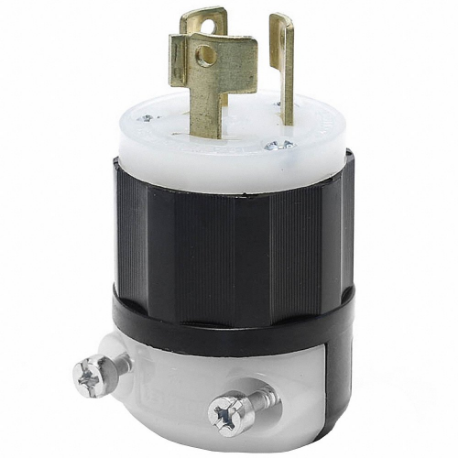

4880-C | Straight | 3 | 3 | Black, White | 15A | 250V AC | 3.0 | General Use | €73.86 | |
 |

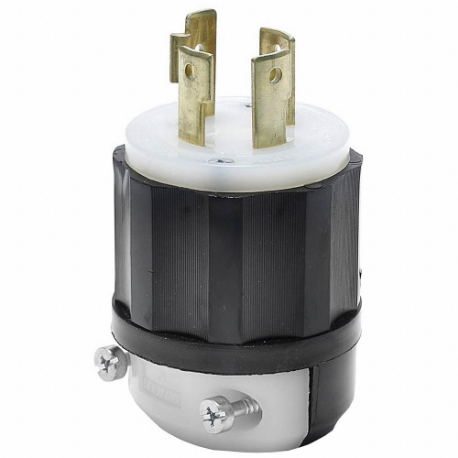

2741 | Straight | 3 | 4 | Black, White | 30A | 600V AC | 3.0 | Federal Specification | €81.37 | |
 |

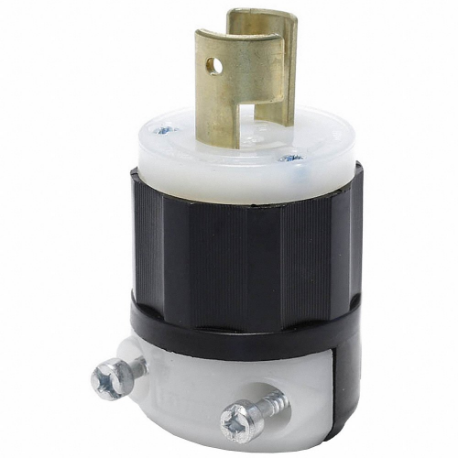

7102-C | Straight | 2 | 2 | Black, White | 20A | 250V AC | Single | Federal Specification | €36.84 | |
 |

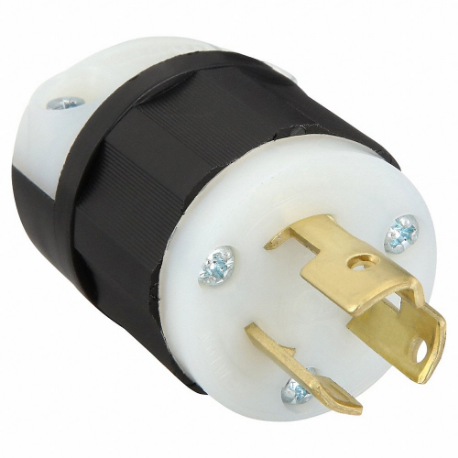

4720-C | Straight | 2 | 3 | Black, White | 15A | 125V AC | Single | Federal Specification | €29.56 | |
 |

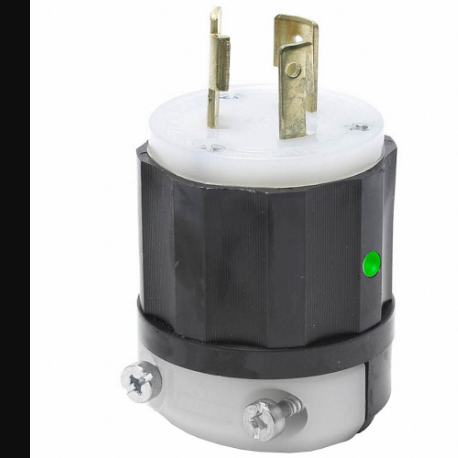

2311-PLC | Straight | 2 | 3 | Black, White | - | - | - | Federal | €59.06 | |
 |

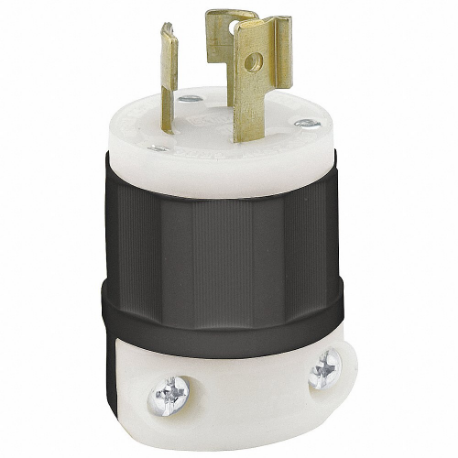

4570-C | Straight | 2 | 3 | Black, White | 15A | 250V AC | Single | Federal Specification | €33.06 | |
 |

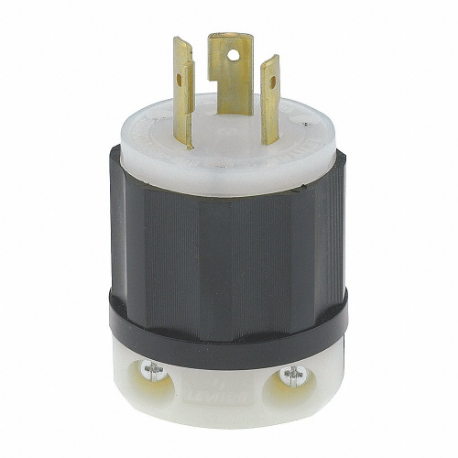

2341 | Straight | 2 | 3 | Black, White | 20A | 480V AC | Single | Federal Specification | €50.39 |
