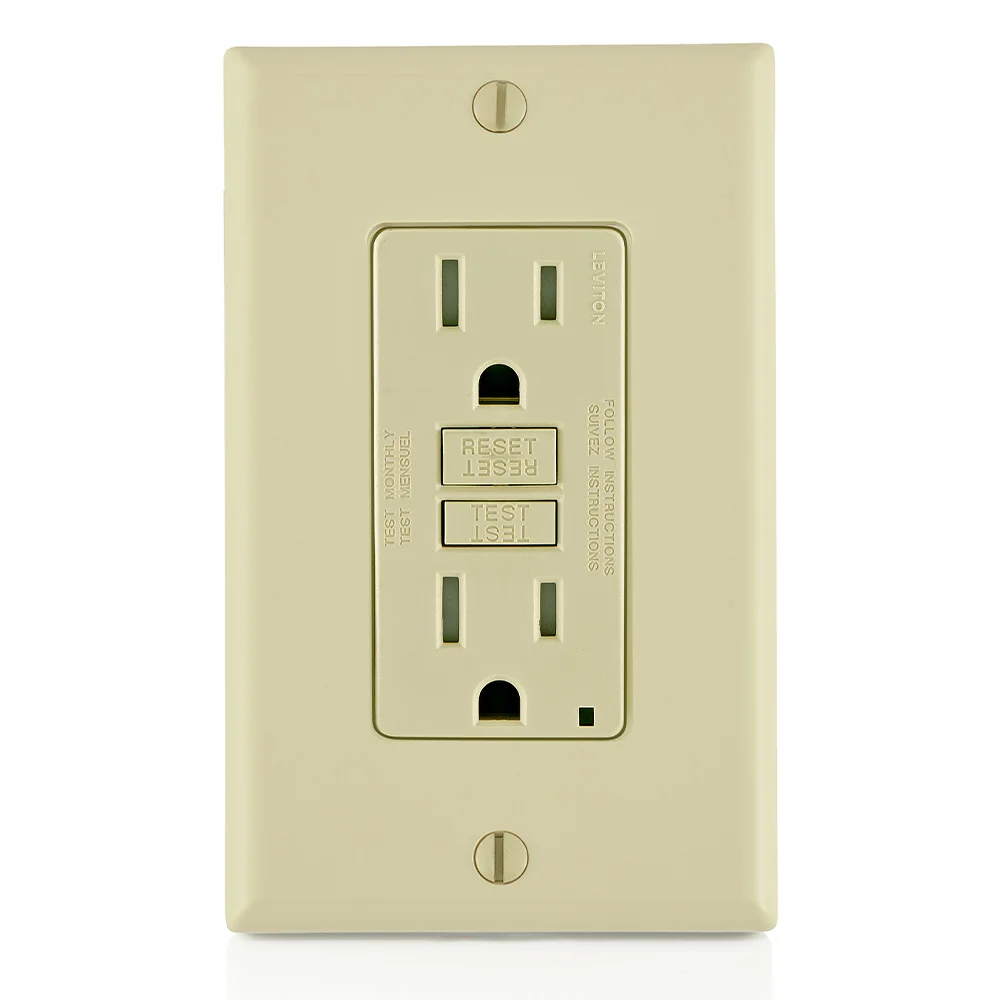

LEVITON GFTR1-I Self-Test GFCI Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Ivory

Item: CR9JBRModel: GFTR1-ICross Ref: 792UH5

7 In Stock

Color

Ships within 2 days via

~~€56.93~~

5.00% off

€54.08 /unit

This product can only be shipped in multiples of 10

Add To Cart

Request a Quote

Payment

Product Specifications:

Item	Receptacle
Ac Hp @ Rated Voltage	1 hp
Amps	15A
Body Material	Polycarbonate
Clamps Material	Brass
Color	Ivory
Connection Orientation	Straight
Contact Material	Brass
Cover Type	No Cover
Dielectric Voltage	Withstands 1250V AC Per UL 943 And CSA-C22.2 No. 144.1-06
Face Material	Thermoplastic
Face Plate Height	2.7"
Face Plate Width	1.3"
Features	Self Test
Flammability	Rated V-2 Per UL 94
Gfci	Yes
Grade	Residential, Commercial
Grounding	Grounded , Self Grounding
Grounding Screw Finish	Plated
Grounding Screw Material	Steel
Housing Color	Ivory
Housing Material	Polycarbonate
Hp	1 hp
Included	Faceplate, Screws, Self Grounding Clip, Wallplate
Included Mounting Hardware	Yes
Line Contacts Material	Brass
Line Contacts Style	Double Wipe
Line Contacts Thickness	0.031"
Max. Operating Temp.	150.8°F , 66°C
Max. Wire Size	10 AWG
Mil-spec	A-A-55459-SB
Min. Operating Temp.	-31°F
Min. Wire Size	14 AWG
Mount Hole Center To Center Height	3.8"
Mounting Hardware Included	Yes
Mounting Type	Flush
Nema Rating	NEMA 5-15R
Nema Receptacle Configuration	NEMA 5-15R
No. Of Outlets	2
No. Of Poles	2
No. Of Wires	3
Operating Temp.	-35°C to +66°C
Overall Depth	1"
Phase	1
Polarized	Yes
Product Datasheet	leviton-gftr2-gy.pdf
Receptacle Type	Decorator Duplex
Reset Type	Automatic
Reverse Service	Yes
Screw Terminal Torque	14 lbs.-in. to 18 lbs.-in.
Self Testing	Yes
Short Circuit Amps	10 kA
Special Resistance	Tamper Resistant
Standards	Ansi, Csa Certified, Federal Specification, Mil-Spec, Nom Certified, Rohs Compliant, Ul Listed
Strap Finish	Galvanized
Strap Material	Steel
Surge Protection	No
Tamper Resistant	Yes
Temp. Rise	Max. 30°C After 100 Cycles Ol At 150 Percent Rated Current
Terminal Accom.	14 AWG to 10 AWG
Terminal Inside Dia.	Brass Hot, Green Ground, Silver Neutral
Terminal Screws Finish	Plated
Terminal Screws Material	Steel
Termination	Back And Side
Trip Level	Class A, 5 mA Plus Or Minus 1 mA
Type	Standard
Ul 94 Flammability Rating	V-2
Visual Indicator Lights	Power Connected
Voltage	125V AC
Wall Plate	Included
Wire Connection Location	Back, Side
Wire Connection Type	Screw Terminal
Yoke Finish	Zinc Plated
Yoke Material	Steel

Shipping Info:

Ship weight (kg)	0.16
Ship height (cm)	15.88
Ship length (cm)	23.5
Ship width (cm)	4.29
Country of Origin	CN

Documentation:

Datasheet

Product Variants

Model	Surge Protection	Housing Color	Color	Nema Rating	Grounding	Polarized	Amps	Max. Operating Temp.	Price
GFTR1-E	No	Black	Black	NEMA 5-15R	Grounded	Yes	15A	66°C	€53.67
GFTR1	No	Brown	Brown	NEMA 5-15R	Grounded	Yes	15A	66°C	€53.67
GFTR1-GY	No	Gray	Gray	NEMA 5-15R	Grounded	Yes	15A	66°C	€44.99
GFTR1-T	No	Light Almond	Light Almond	NEMA 5-15R	Grounded	Yes	15A	66°C	€56.13
GFTR1-W	No	White	White	NEMA 5-15R	Grounded	Yes	15A	66°C	€56.92
GFTR2	No	Brown	Brown	NEMA 5-20R	Grounded	Yes	20A	66°C	€59.00
GFTR2-GY	No	Gray	Gray	NEMA 5-20R	Grounded	Yes	20A	66°C	€51.97
