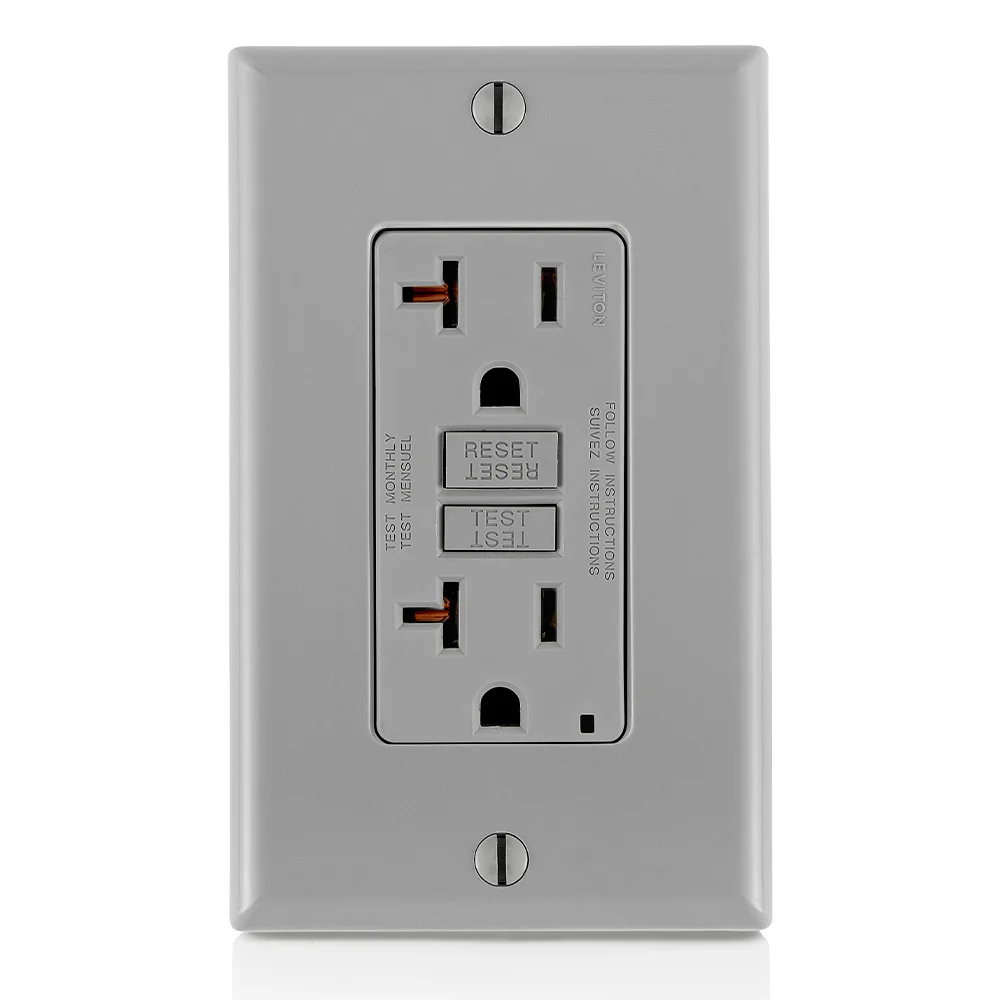

LEVITON GFTR2-GY Self-Test GFCI Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Gray
Item: CR9HNLModel: GFTR2-GYCross Ref: 792UJ0
7 In Stock
Ships within 2 days via
5.00% off
€49.37 /unit
This product can only be shipped in multiples of 10Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Receptacle |
| Ac Hp Ratings At Rated Voltage | 1 hp |
| Amps | 20A |
| Body Material | Polycarbonate |
| Clamps Material | Brass |
| Color | Gray |
| Connection Orientation | Straight |
| Contact Material | Brass |
| Cover Type | No Cover |
| Current Rating | 20A |
| Depth | 1.03" |
| Dielectric Voltage | Withstands 1250V AC Per UL 943 And CSA-C22.2 No. 144.1-06 |
| Face Material | Thermoplastic |
| Face Plate Height | 2.7" |
| Face Plate Width | 1.3" |
| Features | Self Test |
| Flammability | Rated V-2 Per UL 94 |
| Gfci | Yes |
| Grade | Residential, Commercial |
| Grounding | Grounded , Self Grounding |
| Grounding Screw Finish | Plated |
| Grounding Screw Material | Steel |
| Housing Color | Gray |
| Housing Material | Polycarbonate |
| Hp | 1 hp |
| Includes | Faceplate, Screws, Self Grounding Clip, Wallplate |
| Includes Mounting Hardware | Yes |
| Line Contacts Material | Brass |
| Line Contacts Style | Triple Wipe |
| Max. Operating Temp. | 66°C |
| Max. Wire Size | 10 AWG |
| Maximum Operating Temperature | 150.8°F |
| Mil-spec | A-A-55459-SB |
| Min. Wire Size | 14 AWG |
| Minimum Operating Temperature | -31°F |
| Mount Hole Center-to-center Height | 3.3" |
| Mounting Hardware Included | Yes |
| Mounting Type | Flush |
| Nema Rating | NEMA 5-20R |
| Nema Receptacle Configuration | NEMA 5-20R |
| Number Of Outlets | 2 |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Operating Temp. | -35°C to +66°C |
| Overall Depth | 1" |
| Phase | Single |
| Polarized | Yes |
| Product Datasheet | leviton-gftr2-gy.pdf |
| Receptacle Type | Decorator Duplex |
| Reset Type | Automatic |
| Reverse Service | Yes |
| Screw Terminal Torque | 14 lbs.-in. to 18 lbs.-in. |
| Self Testing | Yes |
| Short Circuit Current Rating | 10 kA |
| Special Resistance | Tamper Resistant |
| Standards | Ansi, Csa Certified, Federal Specification, Mil-Spec, Nom Certified, Rohs Compliant, Ul Listed |
| Strap Finish | Galvanized |
| Strap Material | Steel |
| Surge Protection | No |
| Tamper Resistant | Yes |
| Temp. Rise | Max. 30°C After 100 Cycles Ol At 150 Percent Rated Current |
| Terminal Accom. | 14 AWG to 10 AWG |
| Terminal Id | Brass Hot, Green Ground, Silver Neutral |
| Terminal Screws Finish | Plated |
| Terminal Screws Material | Steel |
| Termination | Back And Side |
| Trip Level | Class A, 5 mA Plus Or Minus 1 mA |
| Type | Standard |
| Ul 94 Flammability Rating | V-2 |
| Voltage | 125V AC |
| Voltage Rating | 125V AC |
| Wallplate | Included |
| Wire Connection Location | Back, Side |
| Wire Connection Type | Screw Terminals |
| Yoke Finish | Zinc Plated |
| Yoke Material | Steel |
Shipping Info:
| Ship weight (kg) | 0.17 |
| Ship height (cm) | 15.88 |
| Ship length (cm) | 23.5 |
| Ship width (cm) | 10.69 |
| Country of Origin | CN |
Documentation:
Product Variants
| Product | Model | Surge Protection | Housing Color | Current Rating | Color | Nema Rating | Grounding | Polarized | Amps | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
GFTR1-E | No | Black | 15A | Black | NEMA 5-15R | Grounded | Yes | 15A | €53.67 | |
 |
GFTR1 | No | Brown | 15A | Brown | NEMA 5-15R | Grounded | Yes | 15A | €53.67 | |
 |
GFTR1-GY | No | Gray | 15A | Gray | NEMA 5-15R | Grounded | Yes | 15A | €44.99 | |
 |
GFTR1-T | No | Light Almond | 15A | Light Almond | NEMA 5-15R | Grounded | Yes | 15A | €56.13 | |
 |
GFTR1-W | No | White | 15A | White | NEMA 5-15R | Grounded | Yes | 15A | €56.92 | |
 |
GFTR2 | No | Brown | 20A | Brown | NEMA 5-20R | Grounded | Yes | 20A | €59.00 | |
 |
GFTR2-I | No | Ivory | 20A | Ivory | NEMA 5-20R | Grounded | No | 20A | €59.37 |
