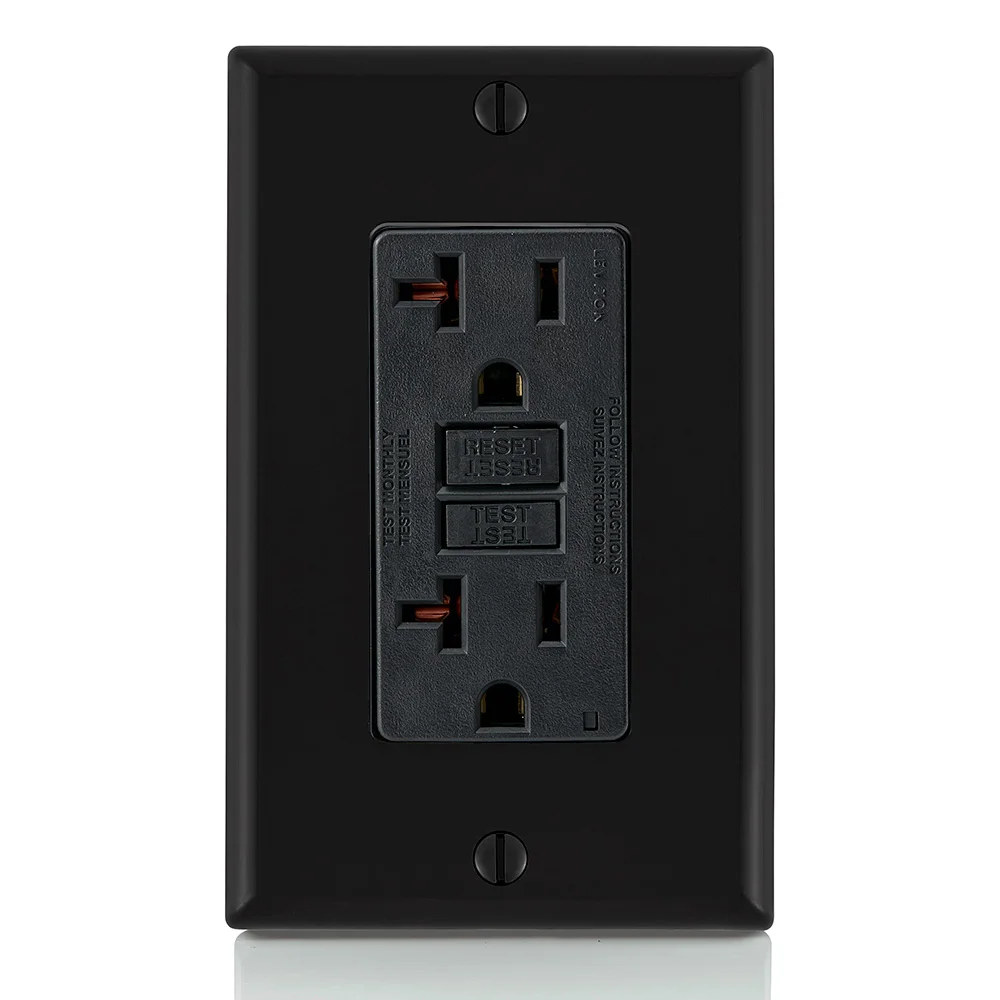

LEVITON GFNT2-E Self-Test GFCI Receptacle With LED Indicator, 125 VAC, 20 A, 2 Poles, 3 Wires, Black
Item: CR9HNAModel: GFNT2-ECross Ref: 792UF1
7 In Stock
Ships within 2 days via
5.00% off
€49.16 /unit
This product can only be shipped in multiples of 10Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Receptacle |
| Ac Hp Ratings At Rated Voltage | 1 hp |
| Amps | 20A |
| Body Material | Polycarbonate |
| Clamps Material | Brass |
| Color | Black |
| Contact Material | Brass |
| Cover Type | No Cover |
| Current Rating | 20A |
| Dielectric Voltage | Withstands 1250V AC Per UL 943 And CSA-C22.2 No. 144.1-06 |
| Face Material | Thermoplastic |
| Features | Self Test |
| Gfci | Yes |
| Grade | Residential, Commercial |
| Grounding | Grounded , Self Grounding |
| Grounding Screw Finish | Plated |
| Grounding Screw Material | Steel |
| Housing Color | Black |
| Housing Material | Polycarbonate |
| Hp | 1 hp |
| Includes | Faceplate, Wallplate |
| Includes Mounting Hardware | Yes |
| Line Contacts Material | Brass |
| Line Contacts Style | Triple Wipe |
| Line Contacts Thickness | 0.031" |
| Maximum Operating Temperature | 150.8°F |
| Maximum Wire Size | 10 AWG |
| Mil-spec | A-A-55459-SB |
| Min. Wire Size | 14 AWG |
| Minimum Operating Temperature | -31°F |
| Mounting Hardware Included | Yes |
| Mounting Type | Flush |
| Nema Rating | NEMA 5-20R |
| Nema Receptacle Configuration | NEMA 5-20R |
| Number Of Outlets | 2 |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Operating Temp. | -35°C to +66°C |
| Phase | Single |
| Polarized | Yes |
| Product Datasheet | leviton-gftr2-gy.pdf |
| Receptacle Type | Decorator Duplex |
| Screw Terminal Torque | 14 lbs.-in. to 18 lbs.-in. |
| Self Testing | Yes |
| Short Circuit Current Rating | 10 kA |
| Strap Finish | Galvanized |
| Strap Material | Steel |
| Surge Protection | No |
| Tamper Resistant | No |
| Temp. Rise | Max. 30°C After 100 Cycles Ol At 150 Percent Rated Current |
| Terminal Accom. | 14 AWG to 10 AWG |
| Terminal Id | Brass Hot, Green Ground, Silver Neutral |
| Terminal Screws Finish | Plated |
| Terminal Screws Material | Steel |
| Termination | Back And Side |
| Trip Level | Class A, 5 mA Plus Or Minus 1 mA |
| Type | Standard |
| Visual Indicator Lights | Power Connected |
| Voltage | 125V AC |
| Voltage Rating | 125V AC |
| Wallplate | Included |
| Wire Connection Location | Back, Side |
| Wire Connection Type | Screw Terminals |
| Yoke Finish | Zinc Plated |
| Yoke Material | Steel |
Shipping Info:
| Ship weight (kg) | 0.16 |
| Ship height (cm) | 15.88 |
| Ship length (cm) | 23.5 |
| Ship width (cm) | 10.69 |
| Country of Origin | CN |
Documentation:
Product Variants
| Product | Model | Current Rating | Wire Connection Location | Housing Color | Color | Nema Rating | Nema Receptacle Configuration | Grounding | Amps | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

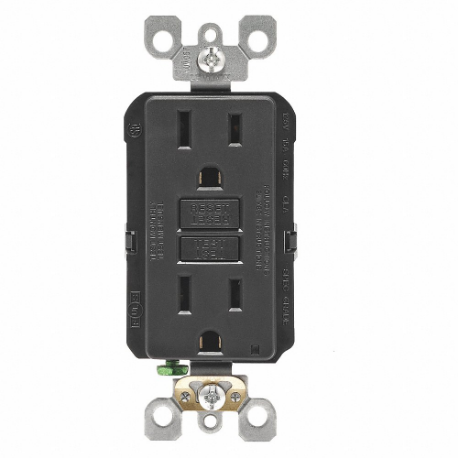

GFNT1-E | 15A | Side | Black | Black | NEMA 5-15R | NEMA 5-15R | Grounded | 15A | €45.05 | |
 |

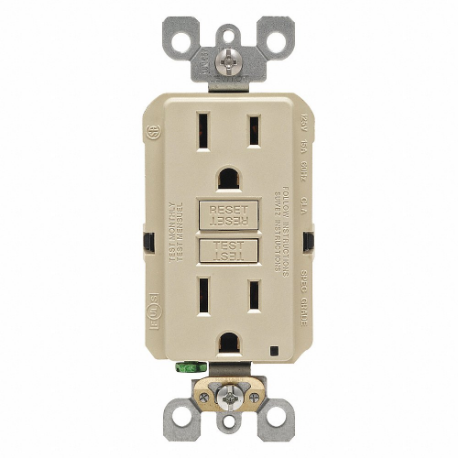

GFNT1-I | 15A | Back, Side | Ivory | Ivory | NEMA 5-15R | NEMA 5-15R | Grounded | 15A | €51.17 | |
 |

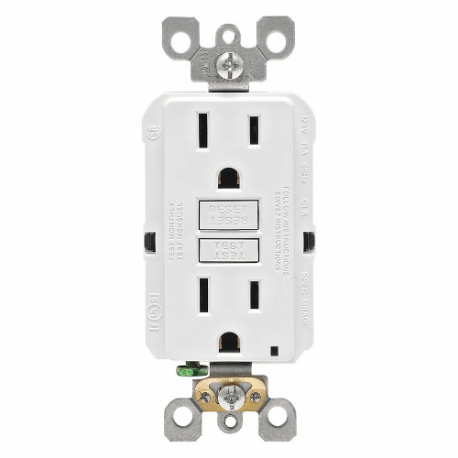

GFNT1-W | 15A | Back, Side | White | White | NEMA 5-15R | NEMA 5-15R | Grounded | 15A | €51.24 | |
 |

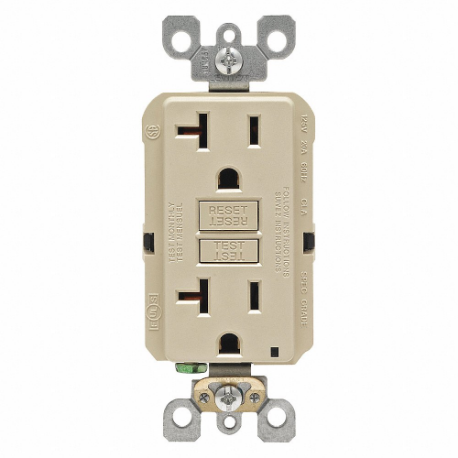

GFNT2-I | 20A | Back, Side | Ivory | Ivory | NEMA 5-20R | NEMA 5-20R | Grounded | 20A | €49.26 | |
 |

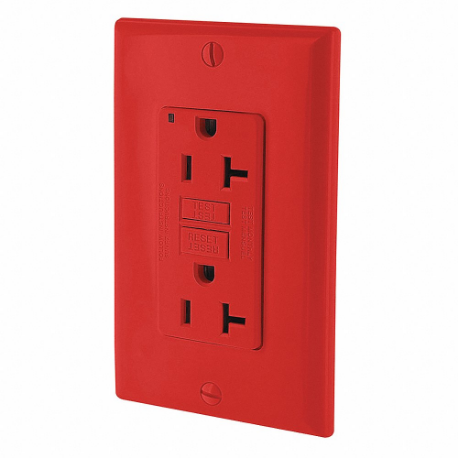

GFNT2-R | 20A | Back, Side | Red | Red | NEMA 5-20R | NEMA 5-20R | Grounded | 20A | €52.04 | |
 |

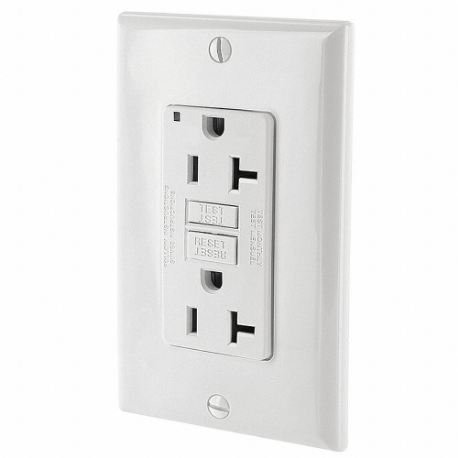

GFNT2-W | 20A | Back, Side | White | White | NEMA 5-20R | NEMA 5-20R | Grounded | 20A | €49.73 | |
 |

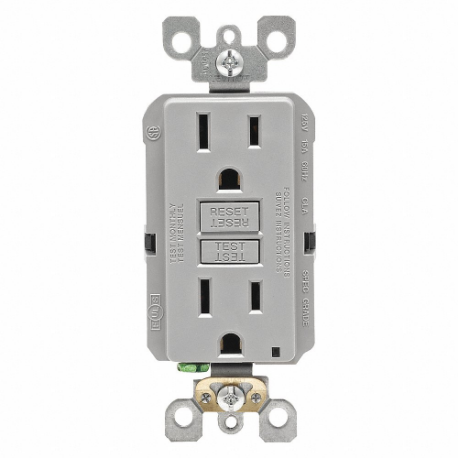

GFNT1-GY | 15A | Side | Gray | Gray | NEMA 5-15R | NEMA 5-15R | Grounded | 15A | €50.99 |
