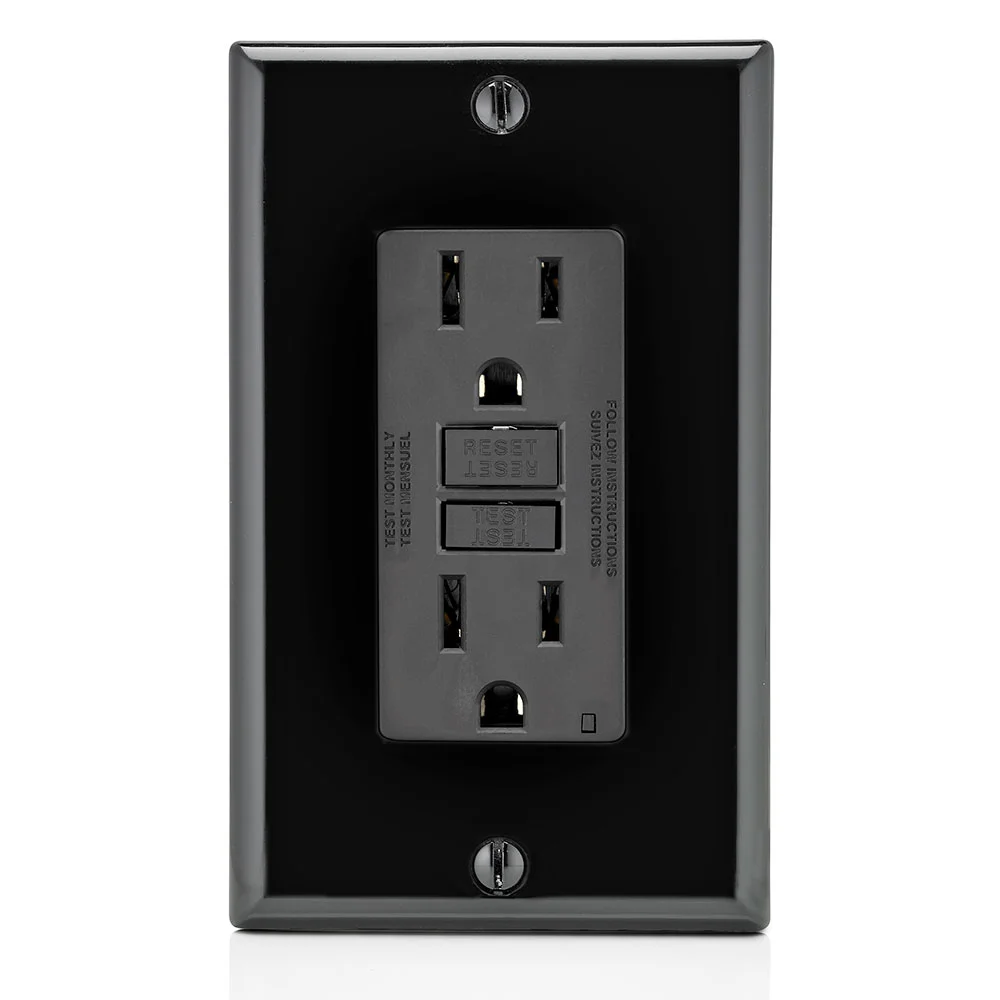

LEVITON GFNT1-E Duplex Outlet Non-Tamper Resistant GFCI Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Black

Item: CR9HLQModel: GFNT1-ECross Ref: 792UD8

7 In Stock

Color

Current Rating

Ships within 2 days via

~~€45.05~~

5.00% off

€42.80 /unit

This product can only be shipped in multiples of 50

Add To Cart

Request a Quote

Payment

Product Specifications:

Item	Receptacle
Ac Hp Ratings At Rated Voltage	1 hp
Amps	15A
Body Material	Polycarbonate
Clamps Material	Brass
Color	Black
Contact Material	Brass
Cover Type	No Cover
Current Rating	15A
Dielectric Voltage	Withstands 1250V AC Per UL 943 And CSA-C22.2 No. 144.1-06
Face Material	Thermoplastic
Features	Built-In Night Light , Self Test
Gfci	Yes
Grade	Residential, Commercial
Grounding	Grounded , Self Grounding
Grounding Screw Finish	Plated
Grounding Screw Material	Steel
Housing Color	Black
Housing Material	Polycarbonate
Hp	1 hp
Includes	Strap Material
Includes Mounting Hardware	Yes
Line Contacts Material	Brass
Line Contacts Style	Double Wipe
Line Contacts Thickness	0.031"
Max. Operating Temp.	66°C
Maximum Operating Temperature	150.8°F
Maximum Wire Size	10 AWG
Mil-spec	A-A-55459-SB
Min. Wire Size	14 AWG
Minimum Operating Temperature	-31°F
Mounting Hardware Included	Yes
Mounting Type	Flush
Nema Rating	NEMA 5-15R
Nema Receptacle Configuration	NEMA 5-15R
Number Of Outlets	2
Number Of Poles	2
Number Of Wires	3
Operating Temp.	-35°C to +66°C
Phase	Single
Polarized	Yes
Product Datasheet	leviton-gftr2-gy.pdf
Receptacle Type	Decorator Duplex
Screw Terminal Torque	14 lbs.-in. to 18 lbs.-in.
Self Testing	Yes
Short Circuit Current Rating	10 kA
Strap Finish	Galvanized
Strap Material	Steel
Surge Protection	No
Tamper Resistant	No
Temp. Rise	Max. 30°C After 100 Cycles Ol At 150 Percent Rated Current
Terminal Accom.	14 AWG to 10 AWG
Terminal Id	Brass Hot, Green Ground, Silver Neutral
Terminal Screws Finish	Plated
Terminal Screws Material	Steel
Termination	Back And Side
Trip Level	Class A, 5 mA Plus Or Minus 1 mA
Type	Standard
Visual Indicator Lights	Power Connected
Voltage	125V AC
Voltage Rating	125V AC
Wallplate	Included
Wire Connection Location	Side
Wire Connection Type	Screw Terminals
Yoke Finish	Zinc Plated
Yoke Material	Steel

Shipping Info:

Ship weight (kg)	0.16
Ship height (cm)	15.88
Ship length (cm)	23.5
Ship width (cm)	10.69
Country of Origin	CN

Documentation:

Datasheet

Product Variants

Model	Current Rating	Wire Connection Location	Housing Color	Color	Nema Rating	Nema Receptacle Configuration	Grounding	Amps	Price
GFNT1-I	15A	Back, Side	Ivory	Ivory	NEMA 5-15R	NEMA 5-15R	Grounded	15A	€51.17
GFNT1-W	15A	Back, Side	White	White	NEMA 5-15R	NEMA 5-15R	Grounded	15A	€51.24
GFNT2-E	20A	Back, Side	Black	Black	NEMA 5-20R	NEMA 5-20R	Grounded	20A	€51.75
GFNT2-I	20A	Back, Side	Ivory	Ivory	NEMA 5-20R	NEMA 5-20R	Grounded	20A	€49.26
GFNT2-R	20A	Back, Side	Red	Red	NEMA 5-20R	NEMA 5-20R	Grounded	20A	€52.04
GFNT2-W	20A	Back, Side	White	White	NEMA 5-20R	NEMA 5-20R	Grounded	20A	€49.73
GFNT1-GY	15A	Side	Gray	Gray	NEMA 5-15R	NEMA 5-15R	Grounded	15A	€50.99
