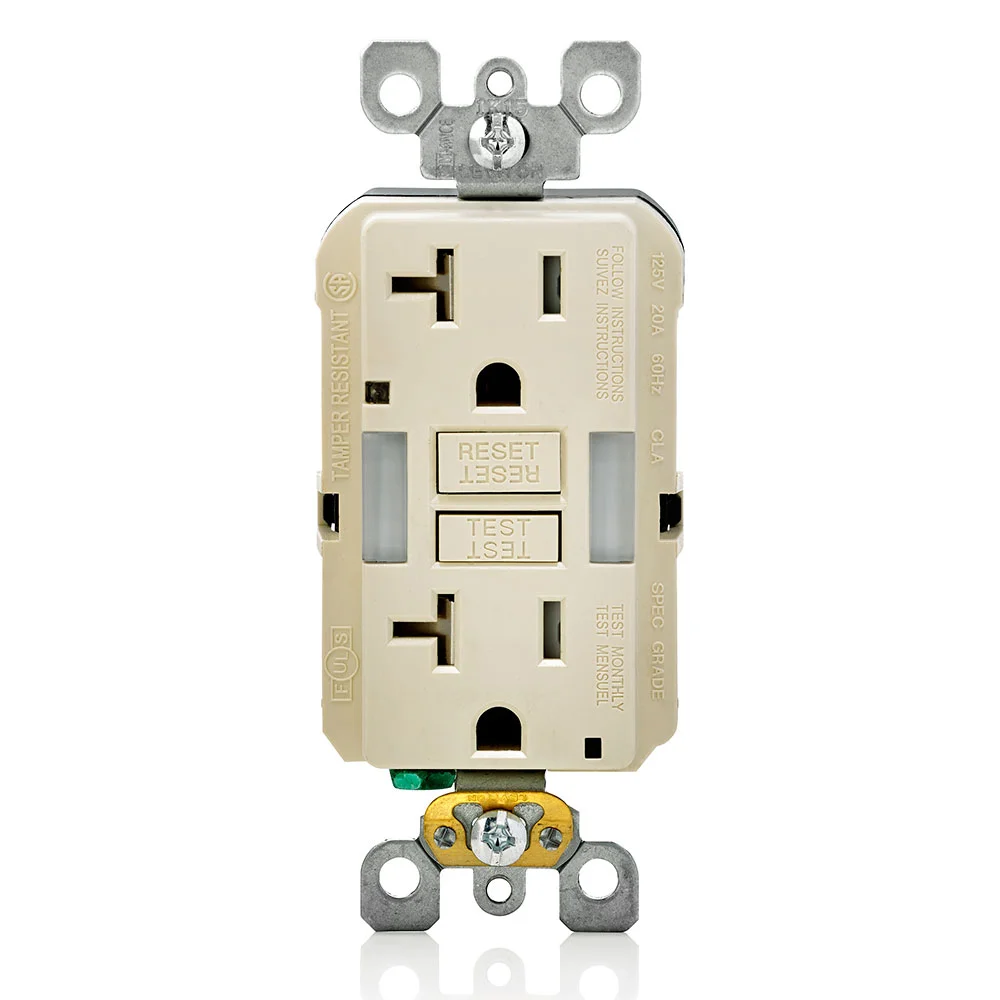

LEVITON GFNL2-T Duplex Self-Test Tamper Resistant GFCI Receptacle With Guide Light, 125 VAC, 20 A, 2 Poles, 3 Wires, Light Almond
Item: CR9HNWModel: GFNL2-TCross Ref: 792UD5
7 In Stock
Ships within 2 days via
5.00% off
€86.11 /unit
This product can only be shipped in multiples of 12Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Receptacle |
| Ac Hp Ratings At Rated Voltage | 1 hp |
| Amps | 20A |
| Body Material | Thermoplastic |
| Clamps Material | Brass |
| Color | Light Almond |
| Contact Material | Brass |
| Cover Type | No Cover |
| Current Rating | 20A |
| Dielectric Voltage | Withstands 1250V AC Per UL 943 And CSA-C22.2 No. 144.1-06 |
| Face Material | Thermoplastic |
| Features | Built-In Night Light , Self Test |
| Gfci | Yes |
| Grade | Residential, Commercial |
| Grounding | Grounded , Self Grounding |
| Grounding Screw Finish | Plated |
| Grounding Screw Material | Steel |
| Housing Color | Light Almond |
| Housing Material | Thermoplastic |
| Hp | 1 hp |
| Includes | Strap Material |
| Includes Mounting Hardware | Yes |
| Line Contacts Material | Brass |
| Line Contacts Style | Triple Wipe |
| Line Contacts Thickness | 0.031" |
| Maximum Operating Temperature | 150.8°F |
| Maximum Wire Size | 10 AWG |
| Min. Wire Size | 14 AWG |
| Minimum Operating Temperature | -31°F |
| Mounting Hardware Included | Yes |
| Mounting Type | Flush |
| Nema Rating | NEMA 5-20R |
| Nema Receptacle Configuration | NEMA 5-20R |
| Number Of Outlets | 2 |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Operating Temp. | -35°C to +66°C |
| Phase | Single |
| Polarized | Yes |
| Product Datasheet | leviton-gftr2-gy.pdf |
| Receptacle Type | Decorator Duplex |
| Screw Terminal Torque | 14 lbs.-in. to 18 lbs.-in. |
| Short Circuit Current Rating | 10 kA |
| Special Resistance | Tamper Resistant |
| Strap Finish | Galvanized |
| Strap Material | Steel |
| Surge Protection | Yes |
| Tamper Resistant | Yes |
| Temp. Rise | Max. 30°C After 100 Cycles Ol At 150 Percent Rated Current |
| Terminal Accom. | 14 AWG to 10 AWG |
| Terminal Id | Brass Hot, Green Ground, Silver Neutral |
| Terminal Screws Finish | Plated |
| Terminal Screws Material | Steel |
| Termination | Back And Side 20A Feed Thru |
| Trip Level | Class A, 5 mA Plus Or Minus 1 mA |
| Type | Combination With Light |
| Visual Indicator Lights | Power Connected |
| Voltage | 125V AC |
| Voltage Rating | 125V AC |
| Wallplate | Not Included |
| Wire Connection Location | Side |
| Wire Connection Type | Screw Terminals |
| Yoke Finish | Zinc Plated |
| Yoke Material | Steel |
Shipping Info:
| Ship weight (kg) | 0.18 |
| Ship height (cm) | 10.8 |
| Ship length (cm) | 17.78 |
| Ship width (cm) | 9.68 |
| Country of Origin | CN |
Documentation:
Product Variants
| Product | Model | Housing Color | Grade | Current Rating | Nema Receptacle Configuration | Grounding | Amps | Color | Nema Rating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

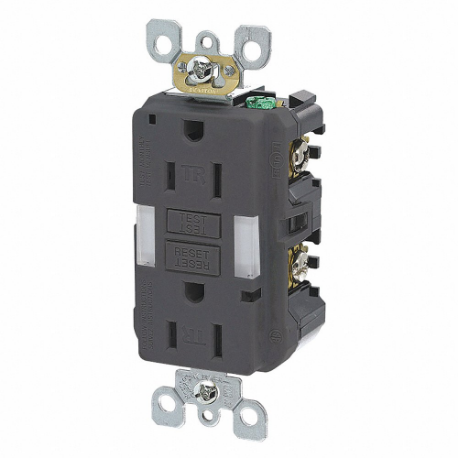

GFNL1-E | Black | Residential, Commercial | 15A | NEMA 5-15R | Grounded | 15A | Black | NEMA 5-15R | €80.82 | |
 |
GFNL1-T | Light Almond | Residential, Commercial | 15A | NEMA 5-15R | Grounded | 15A | Light Almond | NEMA 5-15R | €75.57 | |
 |
GFNL1-W | White | Federal Specification | 15A | NEMA 5-15R | Grounded | 15A | - | - | €88.76 | |
 |
GFNL2-I | Ivory | Residential, Commercial | - | NEMA 5-20R | Grounded | 20A | Ivory | NEMA 5-20R | €90.64 | |
 |
GFNL2-W | White | Residential, Commercial | 20A | NEMA 5-20R | Grounded | 20A | White | NEMA 5-20R | €90.99 | |
 |
GFNL1-I | Ivory | Residential, Commercial | 15A | NEMA 5-15R | Grounded | 15A | Ivory | NEMA 5-15R | €88.76 |
