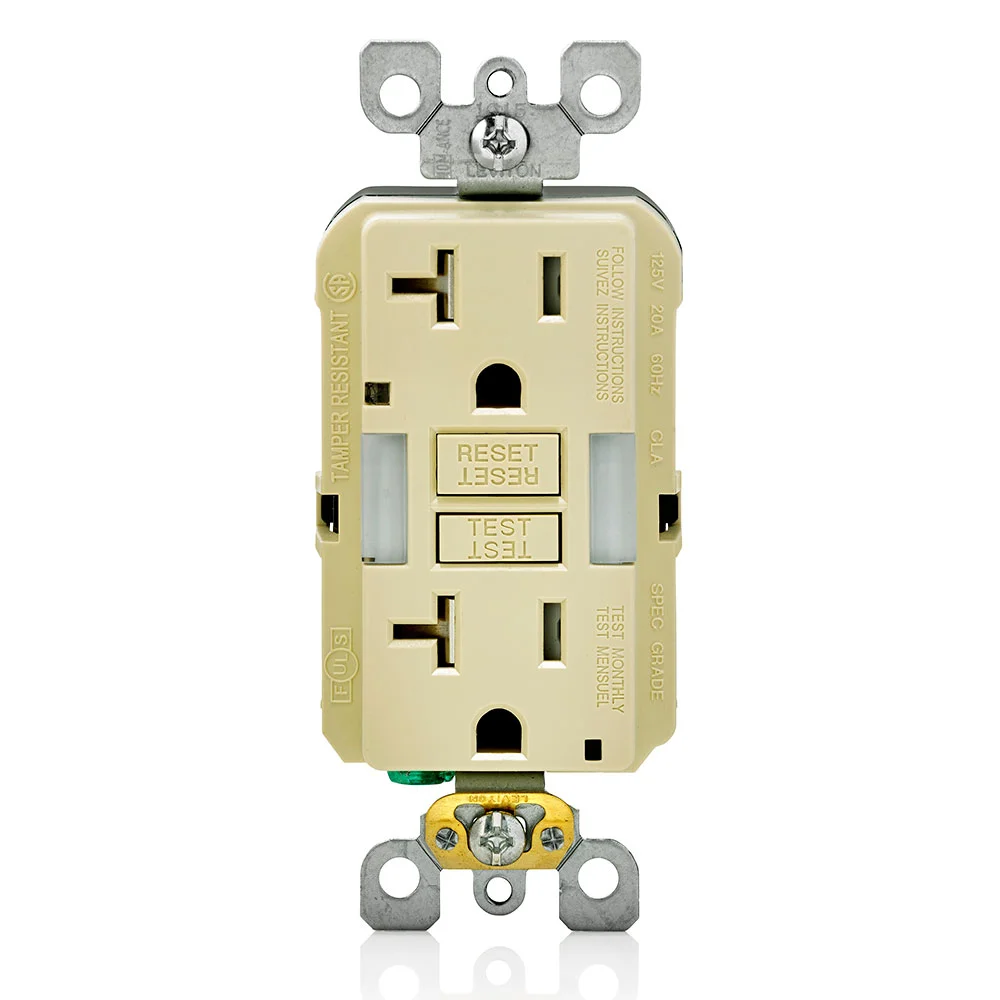

LEVITON GFNL2-I GFI Receptacle, Decorator Duplex, 5-20R, 20 A, 125 VAC, Ivory, 2 Poles, Screw Terminals | CR9HNQ 792UD4

LEVITON GFNL2-I Guidelight Self Test Slim Tamper Resistant GFCI Receptacle With LED Indicator, 125 VAC, 20 A, 2 Poles, 3 Wires, Ivory

Item: CR9HNQModel: GFNL2-ICross Ref: 792UD4
7 In Stock
Color

Ships within 2 days via

€90.64
5.00% off
€86.11 /unit
This product can only be shipped in multiples of 12
Add To Cart
Request a Quote

Payment

Product Specifications:

Item Receptacle
Ac Hp Ratings At Rated Voltage 1 hp
Amps 20A
Body Material Thermoplastic
Clamps Material Brass
Color Ivory
Contact Material Brass
Cover Type No Cover
Dielectric Voltage Withstands 1250V AC Per UL 943 And CSA-C22.2 No. 144.1-06
Face Material Thermoplastic
Features Built-In Night Light , Self Test
Gfci Yes
Grade Residential, Commercial
Grounding Grounded , Self Grounding
Grounding Screw Finish Plated
Grounding Screw Material Steel
Housing Color Ivory
Hp 1 hp
Includes Strap Material
Line Contacts Material Brass
Line Contacts Style Triple Wipe
Line Contacts Thickness 0.031"
Min. Wire Size 14 AWG
Mounting Hardware Included Yes
Mounting Type Flush
Nema Rating NEMA 5-20R
Nema Receptacle Configuration NEMA 5-20R
Number Of Outlets 2
Number Of Poles 2
Number Of Wires 3
Operating Temp. -35°C to +66°C
Polarized Yes
Product Datasheet leviton-gftr2-gy.pdf
Screw Terminal Torque 14 lbs.-in. to 18 lbs.-in.
Self Testing Yes
Short Circuit Current Rating 10 kA
Strap Finish Galvanized
Strap Material Steel
Surge Protection Yes
Tamper Resistant Yes
Temp. Rise Max. 30°C After 100 Cycles Ol At 150 Percent Rated Current
Terminal Accom. 14 AWG to 10 AWG
Terminal Id Brass Hot, Green Ground, Silver Neutral
Terminal Screws Finish Plated
Terminal Screws Material Steel
Termination Back And Side 20A Feed Thru
Trip Level Class A, 5 mA Plus Or Minus 1 mA
Type Combination With Light
Visual Indicator Lights Power Connected
Voltage 125V AC
Wallplate Not Included
Wire Connection Location Side
Wire Connection Type Screw Terminals
Yoke Finish Zinc Plated
Yoke Material Steel

Shipping Info:

Ship weight (kg) 0.18
Ship height (cm)10.8
Ship length (cm)17.78
Ship width (cm)4.29
Country of OriginCN

Documentation:

Datasheet

Product Variants

ProductModelHousing ColorGradeCurrent RatingNema Receptacle ConfigurationGroundingAmpsColorNema RatingPrice
LEVITON GFNL1-E GFI Receptacle, Decorator Duplex, 5-15R, 15 A, 125 VAC, Black, 2 Poles, Screw Terminals | CR9HLP 792UA8 GFNL1-EBlackResidential, Commercial15ANEMA 5-15RGrounded15ABlackNEMA 5-15R€80.82
LEVITON GFNL1-T GFI Receptacle, Decorator Duplex, 5-15R, 15 A, 125 VAC, Light Almond, 2 Poles | CR9HML 792UC6 GFNL1-TLight AlmondResidential, Commercial15ANEMA 5-15RGrounded15ALight AlmondNEMA 5-15R€75.57
LEVITON GFNL1-W GFI Receptacle, Decorator Duplex, 5-15R, 15 A, 125 VAC, White, 2 Poles, Screw Terminals | CR9HMV 792UC7 GFNL1-WWhiteFederal Specification15ANEMA 5-15RGrounded15A--€88.76
LEVITON GFNL2-T GFI Receptacle, Decorator Duplex, 5-20R, 20 A, 125 VAC, Light Almond, 2 Poles | CR9HNW 792UD5 GFNL2-TLight AlmondResidential, Commercial20ANEMA 5-20RGrounded20ALight AlmondNEMA 5-20R€90.64
LEVITON GFNL2-W GFI Receptacle, Decorator Duplex, 5-20R, 20 A, 125 VAC, White, 2 Poles, Screw Terminals | CR9JAG 792UD6 GFNL2-WWhiteResidential, Commercial20ANEMA 5-20RGrounded20AWhiteNEMA 5-20R€90.99
LEVITON GFNL1-I GFI Receptacle, Decorator Duplex, 5-15R, 15 A, 125 VAC, Ivory, 2 Poles, Screw Terminals | CR9JAY 792UC5 GFNL1-IIvoryResidential, Commercial15ANEMA 5-15RGrounded15AIvoryNEMA 5-15R€88.76
