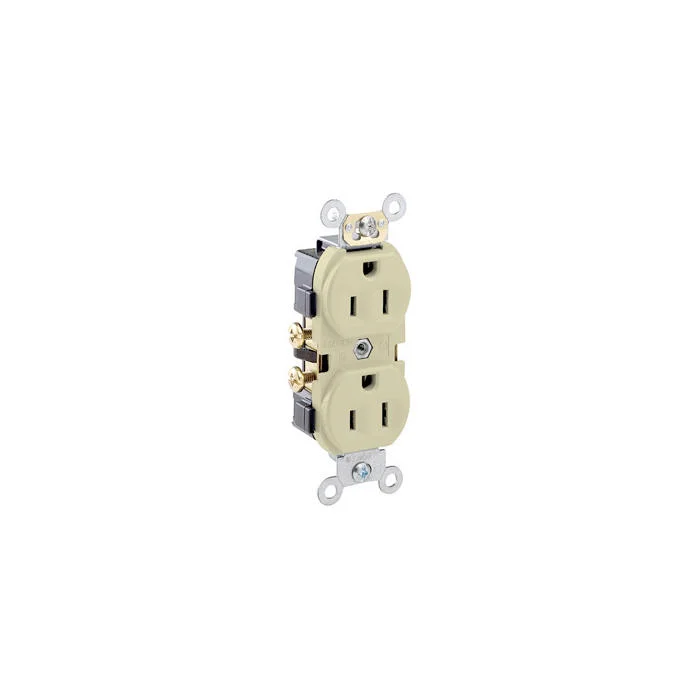

LEVITON CR15-IS Duplex Self-Grounding Straight Blade Receptacle, 1 Phase, 125 VAC, 15 A, 2 Poles, 3 Wires, Ivory
Item: CR9JBQModel: CR15-ISCross Ref: 792U92
7 In Stock
Ships within 2 days via
5.00% off
€7.25 /unit
This product can only be shipped in multiples of 100Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Receptacle |
| Ac Hp Ratings At Rated Voltage | 1 hp |
| Amps | 15A |
| Body Material | Thermoplastic |
| Color | Ivory |
| Connection Orientation | Straight |
| Contact Material | Brass |
| Cover Type | No Cover |
| Current Limiting | Full Rated Current |
| Current Rating | 15A |
| Dielectric Voltage | Withstands 2000V Per UL498 |
| Face Material | Thermoplastic |
| Gfci | No |
| Grade | Federal Specification |
| Ground Clips Material | Brass |
| Grounding | Grounded , Self Grounding |
| Grounding Screw Material | Steel |
| Grounding Screw Size | #8-32 |
| Housing Color | Ivory |
| Housing Material | Thermoplastic |
| Hp | 1 hp |
| Line Contacts Material | Brass |
| Line Contacts Style | Double Wipe |
| Line Contacts Thickness | 0.031" |
| Max. Wire Size | 10 AWG |
| Maximum Operating Temperature | 140°F |
| Min. Operating Temp. | -40°C |
| Min. Wire Size | 14 AWG |
| Minimum Operating Temperature | -40°F |
| Mounting Type | Flush |
| Nema Enclosure Rating | Not Rated |
| Nema Rating | NEMA WD-1 And NEMA WD-6 |
| Nema Receptacle Configuration | NEMA 5-15R |
| Number Of Outlets | 2 |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Operating Temp. | -40°C to +60°C |
| Phase | Single |
| Polarized | Yes |
| Product Datasheet | leviton-cr15-is.pdf |
| Receptacle Type | Duplex |
| Screw Terminal Torque | 14 lbs.-in. to 18 lbs.-in. |
| Strap Material | Steel |
| Temp. Rise | Max. 30°C After 100 Cycles Ol At 150 Percent Rated Current |
| Terminal Accom. | 14 AWG to 10 AWG |
| Terminal Id | Brass Hot, Green Ground, White Neutral |
| Terminal Screws Material | Steel |
| Terminal Screws Size | #8-32 |
| Termination | Side Wire |
| Voltage | 125V AC |
| Voltage Rating | 125V AC |
| Wire Connection Location | Side |
| Wire Connection Type | Screw Terminals |
Shipping Info:
| Ship weight (kg) | 0.08 |
| Ship height (cm) | 23.5 |
| Ship length (cm) | 44.61 |
| Ship width (cm) | 4.11 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Receptacle Type | Wire Connection Type | Number Of Poles | Number Of Wires | Housing Color | Wire Connection Location | Phase | Current Rating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
15379-C | Single | Screw Terminals | 2 | 3 | White | Back | Single | 20A | €62.36 | |
 |
GFWR1-E | Decorator Duplex | Screw Terminals | 2 | 3 | Black | Back, Side | Single | 15A | €73.60 | |
 |
GFNT1 | Decorator Duplex | Screw Terminals | 2 | 3 | Brown | Side | Single | 15A | €45.43 | |
 |
GFNT1-T | Decorator Duplex | Screw Terminals | 2 | 3 | Light Almond | Back, Side | Single | 15A | €50.06 | |
 |
GFWR1-W | Decorator Duplex | Screw Terminals | 2 | 3 | White | Back, Side | Single | 15A | €69.27 | |
 |
GFWR2-E | Decorator Duplex | Screw Terminals | 2 | 3 | Black | Back, Side | Single | 20A | €75.21 | |
 |
GFNT2 | Decorator Duplex | Screw Terminals | 2 | 3 | Brown | Back, Side | Single | 20A | €42.47 |
