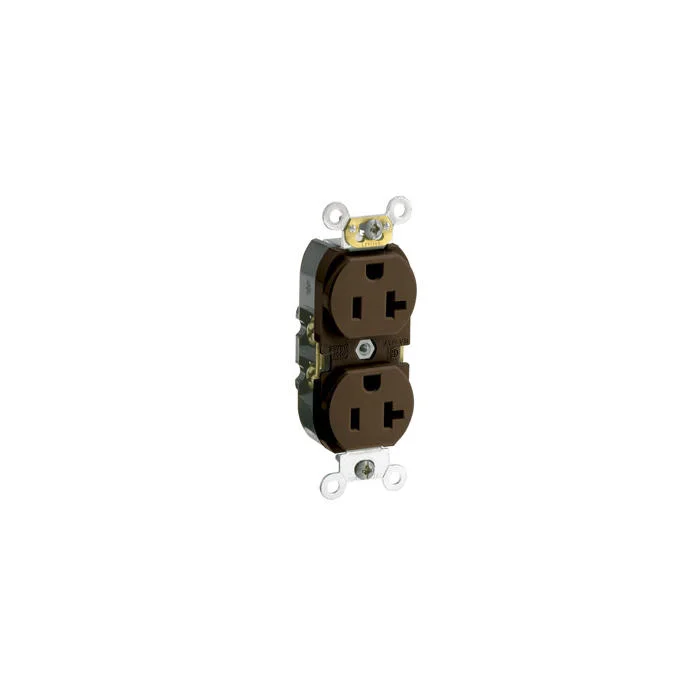

LEVITON CR020 Duplex Slim Straight Blade Receptacle, 1 Phase, 125 VAC, 20 A, 2 Poles, 3 Wires, Brown
Item: CR9HWAModel: CR020Cross Ref: 792U88
7 In Stock
Ships within 2 days via
5.00% off
€5.17 /unit
This product can only be shipped in multiples of 100Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Receptacle |
| Ac Hp @ Rated Voltage | 1 hp |
| Amps | 20A |
| Amps Limiting | Full Rated Current |
| Body Material | Nylon |
| Color | Brown |
| Connection Orientation | Straight |
| Contact Material | Brass |
| Cover Type | No Cover |
| Device Type | Duplex Receptacle Outlet |
| Dielectric Voltage | Withstands 2000V Per UL498 |
| Face Material | Nylon |
| Features | Smooth Face |
| Gfci | No |
| Grade | Commercial |
| Ground Clips Material | Brass |
| Grounding | Grounded , Self Grounding |
| Grounding Screw Material | Steel |
| Grounding Screw Size | #8-32 |
| Housing Color | Brown |
| Housing Material | Nylon |
| Hp | 1 hp |
| Line Contacts Material | Brass |
| Line Contacts Style | Double Wipe |
| Line Contacts Thickness | 0.031" |
| Max. Operating Temp. | 140°F |
| Max. Wire Size | 10 AWG |
| Min. Operating Temp. | -40°C , -40°F |
| Min. Wire Size | 14 AWG |
| Mounting Type | Flush |
| Nema Enclosure Rating | Not Rated |
| Nema Rating | NEMA WD-2, NEMA WD-6 |
| Nema Receptacle Configuration | NEMA 5-20R |
| No. Of Outlets | 2 |
| No. Of Poles | 2 |
| No. Of Wires | 3 |
| Operating Temp. | -40°C to +60°C |
| Phase | 1 |
| Polarized | Yes |
| Receptacle Type | Duplex |
| Strap Material | Steel |
| Terminal Accom. | 14 AWG to 10 AWG |
| Terminal Inside Dia. | Brass Hot, Green Ground, White Neutral |
| Terminal Screws Material | Steel |
| Terminal Screws Size | #8-32 |
| Termination | Side Wire |
| Voltage | 125V AC |
| Wire Connection Location | Side |
| Wire Connection Type | Screw Terminal |
| Yoke Finish | Zinc Plated |
| Yoke Material | Steel |
Shipping Info:
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 23.5 |
| Ship length (cm) | 31.12 |
| Ship width (cm) | 3.89 |
| Country of Origin | MX |
Product Variants
| Product | Model | Receptacle Type | Wire Connection Type | Housing Color | Wire Connection Location | Phase | Surge Protection | Voltage | Mounting Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
15379-C | Single | Screw Terminal | White | Back | 1 | - | 125V AC | Flush | €62.36 | |
 |
GFWR1-E | Decorator Duplex | Screw Terminal | Black | Back, Side | 1 | Yes | 125V AC | Flush | €73.60 | |
 |
GFNT1 | Decorator Duplex | Screw Terminal | Brown | Side | 1 | Yes | 125V AC | Flush | €45.43 | |
 |
GFNT1-T | Decorator Duplex | Screw Terminal | Light Almond | Back, Side | 1 | No | 125V AC | Flush | €50.06 | |
 |
GFWR1-W | Decorator Duplex | Screw Terminal | White | Back, Side | 1 | No | 125V AC | Flush | €69.27 | |
 |
GFWR2-E | Decorator Duplex | Screw Terminal | Black | Back, Side | 1 | No | 125V AC | Flush | €75.21 | |
 |
GFNT2 | Decorator Duplex | Screw Terminal | Brown | Back, Side | 1 | No | 125V AC | Flush | €42.47 |
