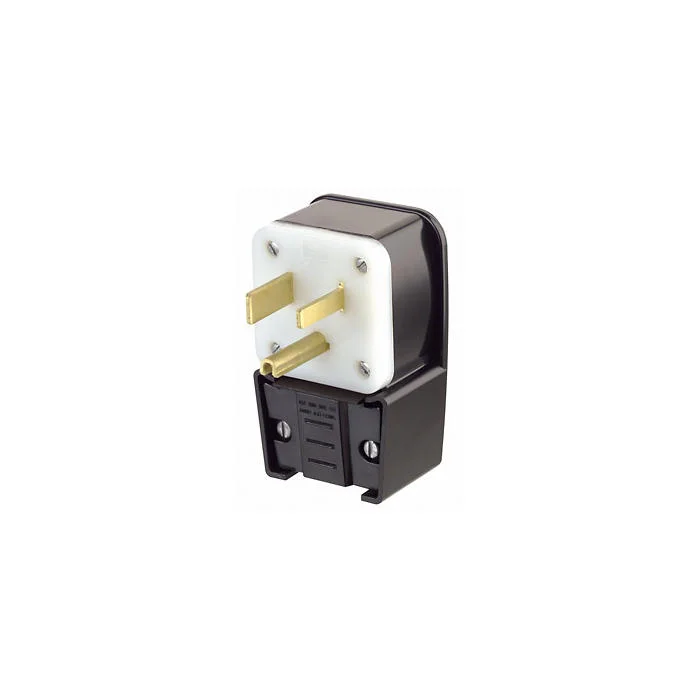

LEVITON 9650-P Angle Straight Blade Plug, 6-50P, 50 A, 250VAC, Black, 2 Poles | CR9JDP 792U70

LEVITON 9650-P Angled Straight Blade Power Plug, 250 VAC, 50 A, 2 Poles, 3 Wires, Black

Item: CR9JDPModel: 9650-PCross Ref: 792U70
7 In Stock

Ships within 2 days via

€138.77
5.00% off
€131.83 /unit
Add To Cart
Request a Quote

Payment

Product Specifications:

Item Straight Blade Plug
Ac Hp Ratings At Rated Voltage 3 hp
Amps 50A
Assembly Screws Finish Zinc Plated
Assembly Screws Material Steel
Blade Material Brass
Blades/contacts Solid Brass
Body Length 1 22/25"
Body Material Super Tough Nylon
Color Black
Connection Orientation Angled
Cord Range 0.625" to 1.375"
Current Limiting Full Rated Current
Current Rating 50A
Device Type Power Device
Dielectric Voltage Withstands 2000V Per UL498
Features Angled
For Maximum Cable Diameter 1 3/8"
For Minimum Cable Diameter 5/8"
Grade General Use
Grounding Grounded , Grounding
Housing Color Black
Housing Material Super Tough Nylon
Hp 3 hp
Insulation Material Nylon
Ip Rating Not Rated
Length 3 1/4"
Max. Operating Temp. 60°C
Max. Wire Size 4 AWG
Maximum Operating Temperature 140°F
Min. Operating Temp. -40°C
Min. Wire Size 6 AWG
Minimum Operating Temperature -40°F
Nema Enclosure Rating Not Rated
Nema Plug Configuration 6-50P
Nema Rating NEMA WD-6
No. Of Wires 3
Number Of Blades 3
Number Of Poles 2
Operating Temp. -40°C to +60°C
Overall Length 3.25"
Phase Single
Polarized Yes
Product Datasheet leviton-9650-p.pdf
Resistance Properties Chemical Resistant, Moisture Resistant, Shatter And Crack Resistant
Standards Ansi C73, Csa C22.2 No. 42 File E152105, Nema Wd-6, Nom 057 Certified, Rohs Compliant, Ul 498 File E13399
Temp. Rise Max. 30°C After 50 Cycles Ol At 150 Percent Rated Current
Terminal Accom. Up to 4 AWG
Terminal Id Brass Hot, Green Ground, Silver Neutral
Torque Range 16 lbs.-in. to 20 lbs.-in.
Ul 94 Flammability Rating V-2
Voltage 250V AC
Voltage Rating 250V AC
Wire Connection Type Screw Terminals
Wire Gauge 6 AWG to 4 AWG
Wiring Style Standard

Shipping Info:

Ship weight (kg) 0.03
Ship height (cm)22.54
Ship length (cm)27.62
Ship width (cm)8.89
Country of OriginMX

Documentation:

Datasheet

Product Variants

ProductModelNema Plug ConfigurationAmpsVoltageNumber Of PolesNumber Of BladesGroundingHpNema RatingPrice

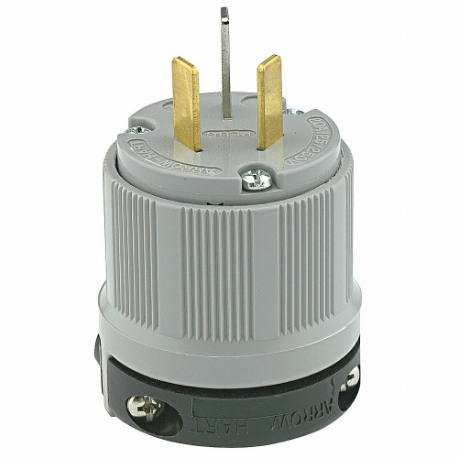

LEVITON 9151-N Straight Blade Plug, 10-20P, 20 A, 125/250VAC, Black, 3 Poles, Screw Terminals | CR9HJA 792U59 9151-N10-20P20A125/250V AC33Non Grounded2 hpNEMA 10-20P€143.78

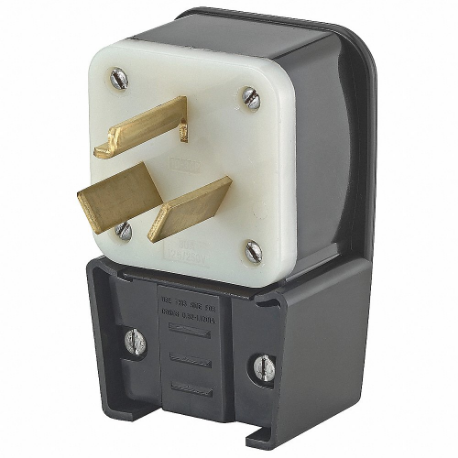

LEVITON 9332-P Angle Straight Blade Plug, 10-30P, 30 A, 125/250VAC, Black, 3 Poles, Screw Terminals | CR9JCX 792U61 9332-P10-30P30A125V AC33Non Grounded2 hpNEMA WD-6€73.86

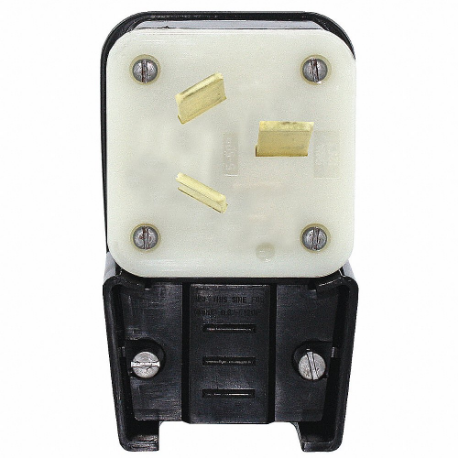

LEVITON 9450-P Angle Straight Blade Plug, 10-50P, 50 A, 125/250VAC, Black, 3 Poles, Screw Terminals | CR9JCY 792U63 9450-P10-50P50A125/250V AC33Non Grounded3 hpNEMA 10-50P€161.95

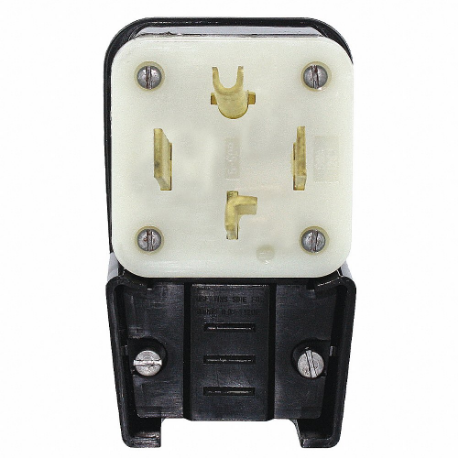

LEVITON 9432-P Angle Straight Blade Plug, 14-30P, 30 A, 125/250VAC, Black, 3 Poles, Screw Terminals | CR9JDA 792U62 9432-P14-30P30A125/250V AC34Grounded2 hpNEMA WD-6€125.57

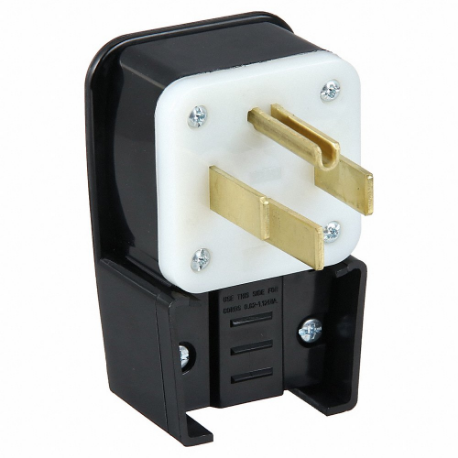

LEVITON 9452-P Angle Straight Blade Plug, 14-50P, 50 A, 125/250VAC, Black, 3 Poles | CR9JDB 792U64 9452-P14-50P50A125/250V AC34Grounded3 hpNEMA WD-6€160.39

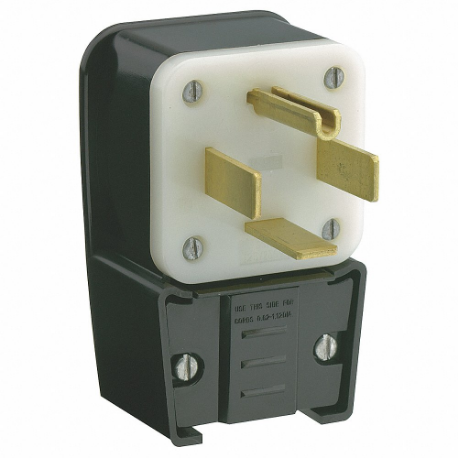

LEVITON 9462-P Angle Straight Blade Plug, 14-60P, 60 A, 125/250VAC, Black, 3 Poles | CR9JDC 792U66 9462-P14-60P60A125/250V AC34Grounded3 1/2 hpNEMA WD-6€211.53

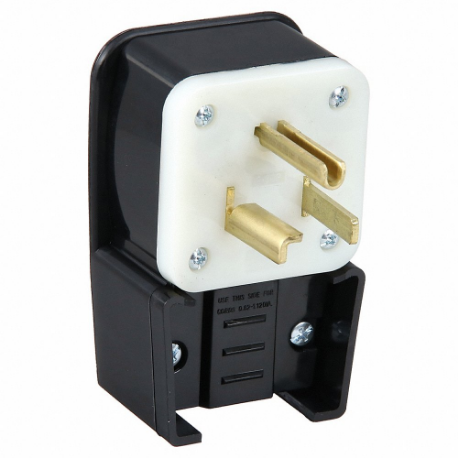

LEVITON 9530-P Angle Straight Blade Plug, 5-30P, 30 A, 125VAC, Black, 2 Poles, Screw Terminals | CR9JDM 792U67 9530-P5-30P30A125V AC23Grounded2 hp-€101.18
