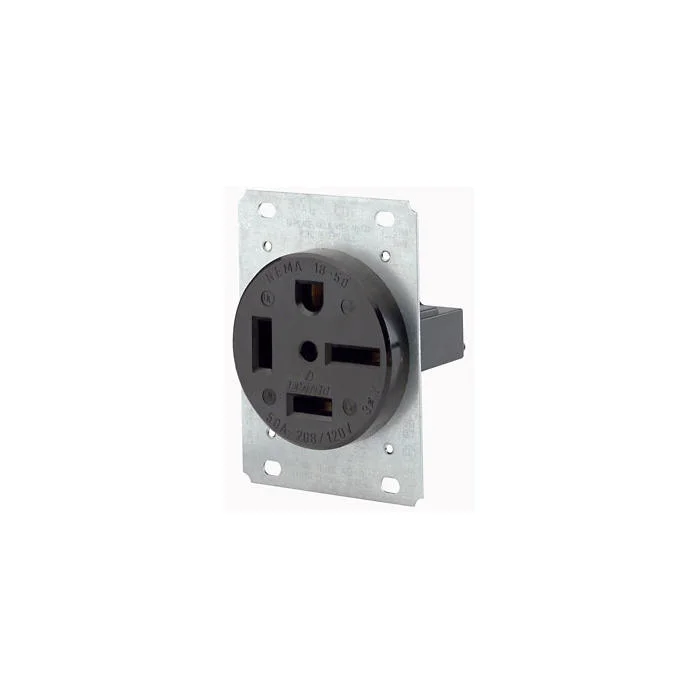

LEVITON 8460 Extra Heavy Duty Grounding Straight Blade Flush Mounting Receptacle, 250 VAC, 60 A, 3 Poles, 4 Wires
Item: CR9JBBModel: 8460Cross Ref: 792U56
7 In Stock
Ships within 2 days via
5.00% off
€186.96 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Receptacle |
| Ac Hp Ratings At Rated Voltage | 10 hp |
| Afci | No |
| Amps | 60A |
| Body Material | Nylon |
| Color | Black |
| Connection Orientation | Straight |
| Contact Material | Brass |
| Cover Type | No Cover |
| Current Limiting | Full Rated Current |
| Current Rating | 60A |
| Device Type | Straight Blade Receptacle |
| Dielectric Voltage | Withstands 2000V Per UL498 |
| Face Material | Nylon |
| Features | 3 Phase |
| Flange Shape | Rectangular |
| Gfci | No |
| Grade | Federal Specification |
| Grounding | Grounded , Grounding |
| Housing Color | Black |
| Housing Material | Nylon |
| Hp | 10 hp |
| Ip Rating | Not Rated |
| Line Contacts Material | Brass |
| Line Contacts Style | Double Wipe |
| Maximum Operating Temperature | 140°F |
| Min. Operating Temp. | -40°C |
| Min. Wire Size | 4 AWG |
| Minimum Operating Temperature | -40°F |
| Mounting Type | Recessed |
| Nema Enclosure Rating | Not Rated |
| Nema Rating | NEMA 15-60R |
| Nema Receptacle Configuration | NEMA 15-60R |
| Number Of Gangs | 1 |
| Number Of Outlets | 1 |
| Number Of Poles | 3 |
| Number Of Wires | 4 |
| Operating Temp. | -40°C to +60°C |
| Phase | Three |
| Polarized | Yes |
| Receptacle Type | Single |
| Special Resistance | Tamper Resistant |
| Strap Finish | Galvanized |
| Strap Material | Steel |
| Surge Protection | No |
| Temp. Rise | Max. 30°C After 50 Cycles Ol At 150 Percent Rated Current |
| Terminal Accom. | Up to 4 AWG |
| Terminal Id | Brass Hot, Green Ground, Silver Neutral |
| Torque Range | 25 lbs.-in. |
| Ul 94 Flammability Rating | V-2 |
| Voltage | 250V AC |
| Voltage Rating | 250V AC |
| Wire | 4 |
| Wire Connection Location | Side |
| Wire Connection Type | Screw Terminals |
Shipping Info:
| Ship weight (kg) | 0.14 |
| Ship height (cm) | 15.56 |
| Ship length (cm) | 30.8 |
| Ship width (cm) | 5.79 |
| Country of Origin | MX |
Product Variants
| Product | Model | Receptacle Type | Wire Connection Type | Number Of Poles | Number Of Wires | Housing Color | Wire Connection Location | Phase | Current Rating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
15379-C | Single | Screw Terminals | 2 | 3 | White | Back | Single | 20A | €62.36 | |
 |
GFWR1-E | Decorator Duplex | Screw Terminals | 2 | 3 | Black | Back, Side | Single | 15A | €73.60 | |
 |
GFNT1 | Decorator Duplex | Screw Terminals | 2 | 3 | Brown | Side | Single | 15A | €45.43 | |
 |
GFNT1-T | Decorator Duplex | Screw Terminals | 2 | 3 | Light Almond | Back, Side | Single | 15A | €50.06 | |
 |
GFWR1-W | Decorator Duplex | Screw Terminals | 2 | 3 | White | Back, Side | Single | 15A | €69.27 | |
 |
GFWR2-E | Decorator Duplex | Screw Terminals | 2 | 3 | Black | Back, Side | Single | 20A | €75.21 | |
 |
GFNT2 | Decorator Duplex | Screw Terminals | 2 | 3 | Brown | Back, Side | Single | 20A | €42.47 |
