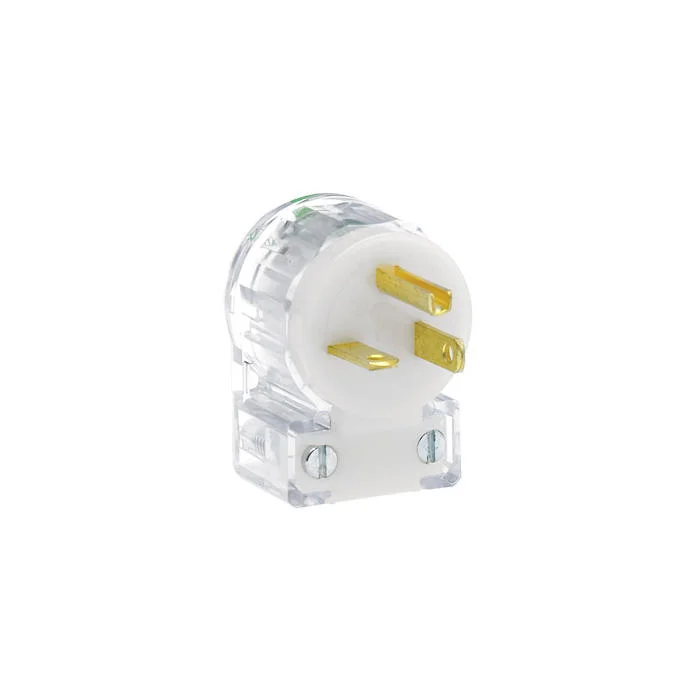

LEVITON 8315-CAT Angled Cable Mount Grounding Straight Blade Plug, 125 VAC, 20 A, 2 Poles, 3 Wires, Transparent
Item: CR9JDLModel: 8315-CATCross Ref: 792U41
7 In Stock
Ships within 2 days via
5.00% off
€45.61 /unit
This product can only be shipped in multiples of 50Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Straight Blade Plug |
| Amps | 20A |
| Assembly Screws Finish | Zinc Plated |
| Assembly Screws Material | Steel |
| Blade Material | Brass |
| Blades/contacts | Solid Brass |
| Body Material | Super Tough Nylon |
| Color | Black And White |
| Connection Orientation | Angled |
| Cord Range | 0.245" to 0.7" |
| Current Rating | 20A |
| Device Type | Straight Blade Plug |
| Environment | Dry |
| Features | Angled |
| For Environment | Dry |
| For Maximum Cable Diameter | 0.7" |
| For Minimum Cable Diameter | 0.245" |
| Grade | Hospital Grade |
| Grounding | Grounded , Grounding |
| Housing Color | Clear |
| Housing Material | Super Tough Nylon |
| Hp | 1 hp |
| Insulation Material | Nylon |
| Ip Rating | Not Rated |
| Maximum Wire Size | 10 AWG |
| Min. Wire Size | 18 AWG |
| Nema Enclosure Rating | Not Rated |
| Nema Plug Configuration | 5-20P |
| Nema Rating | NEMA 5-20P |
| No. Of Wires | 3 |
| Number Of Blades | 3 |
| Number Of Poles | 2 |
| Phase | Single |
| Polarized | Yes |
| Resistance Properties | Chemical Resistant, Moisture Resistant, Shatter And Crack Resistant |
| Torque Range | 10 lbs.-in. to 14 lbs.-in. |
| Ul 94 Flammability Rating | V-2 |
| Voltage | 125V AC |
| Voltage Rating | 125V AC |
| Wire Connection Type | Screw Terminals |
| Wire Gauge | 18 AWG to 10 AWG |
| Wiring Style | Standard |
Shipping Info:
| Ship weight (kg) | 0.73 |
| Ship height (cm) | 31.12 |
| Ship length (cm) | 37.47 |
| Ship width (cm) | 15.24 |
| Country of Origin | MX |
Product Variants
| Product | Model | Nema Plug Configuration | Amps | Voltage | Wiring Style | Grade | Connection Orientation | Housing Color | Housing Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
8215-C | 5-15P | 15A | 125V AC | Standard | Hospital Grade | Straight | Black, White | Impact Modified Nylon | €26.18 | |
 |
8215-PLC | 5-15P | 15A | 125V AC | Standard | Hospital Grade | Straight | Clear | Super Tough Nylon | €42.54 | |
 |
8215-CT | 5-15P | 15A | 125V AC | Standard | Hospital Grade | Straight | Clear | Super Tough Nylon | €40.70 | |
 |
8315-C | 5-20P | 20A | 125V AC | Standard | Hospital Grade | Straight | Black, White | Impact Modified Nylon | €38.60 | |
 |
8315-PLC | 5-20P | 20A | 125V AC | Standard | Hospital | Straight | Clear | Super Tough Nylon | €49.13 | |
 |
8315-CT | 5-20P | 20A | 125V AC | Standard | Hospital Grade | Straight | Clear | Super Tough Nylon | €37.78 | |
 |
8656-V | 6-15P | 15A | 250V AC | Hinged | Hospital Grade | Straight | White | Super Tough Nylon | €34.85 |
