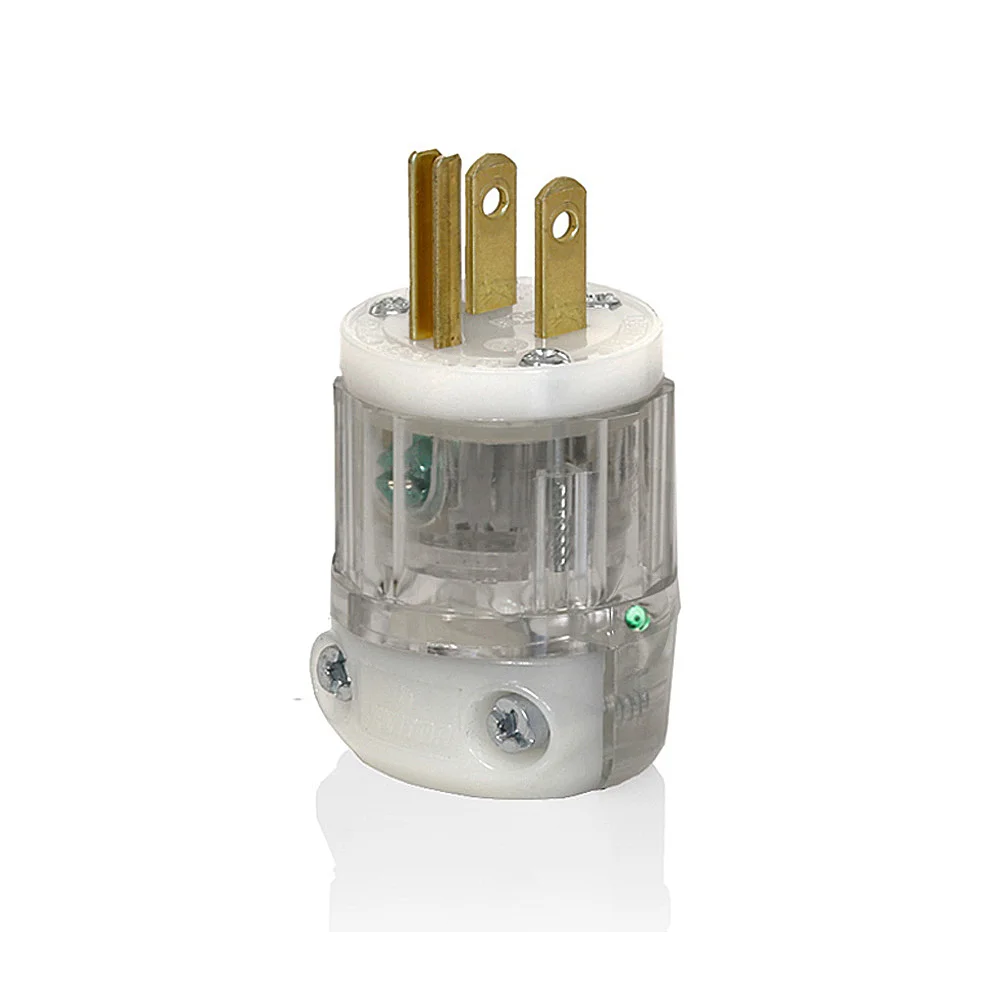

LEVITON 8215-PLC Straight Blade Plug, 5-15P, 15 A, 125VAC, Clear, 2 Poles Terminals, Hospital Grade
Item: CR9HJRModel: 8215-PLCCross Ref: 792U11
7 In Stock
Ships within 2 days via
10.00% off
€38.28 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Plug |
| Amps | 15A |
| Blade Material | Brass |
| Body Length | 1.98" |
| Color | Transparent |
| Connection Orientation | Straight |
| Current Rating | 15A |
| Environment | Dry |
| Face Dia. | 1.39" |
| For Environment | Dry |
| For Maximum Cable Diameter | 0.7" |
| For Minimum Cable Diameter | 1/4" |
| Grade | Hospital Grade |
| Grounding | Grounded |
| Housing Color | Clear |
| Housing Material | Super Tough Nylon |
| Hp | 1/2 hp |
| Insulation Material | Nylon |
| Ip Rating | Not Rated |
| Maximum Operating Temperature | 140°F |
| Maximum Wire Size | 10 AWG |
| Min. Operating Temp. | -40°C |
| Min. Wire Size | 18 AWG |
| Minimum Operating Temperature | -40°F |
| Nema Enclosure Rating | Not Rated |
| Nema Plug Configuration | 5-15P |
| No. Of Wires | 3 |
| Number Of Blades | 3 |
| Number Of Poles | 2 |
| Outside Dia. | 1.53" |
| Phase | Single |
| Polarized | Yes |
| Power Indicating Light | Yes |
| Resistance Properties | Chemical Resistant, Corrosion Resistant, Impact Resistant, Moisture Resistant, Weather Resistant |
| Standards | Ansi C73, Csa C22.2 No. 42 File Lr-406, Nema Wd-6, Nom 057 Certified, Rohs Compliant, Ul 498 File E13399, Ul Federal Specification Wc-596 File E13393 |
| Ul 94 Flammability Rating | V-2 |
| Voltage | 125V AC |
| Voltage Rating | 125V AC |
| Wire Connection Type | Screw Terminals |
| Wiring Style | Standard |
Shipping Info:
| Ship weight (kg) | 0.07 |
| Ship height (cm) | 5.03 |
| Ship length (cm) | 3.89 |
| Ship width (cm) | 2.54 |
| Country of Origin | MX |
Product Variants
| Product | Model | Nema Plug Configuration | Amps | Voltage | Wiring Style | Grade | Connection Orientation | Housing Color | Housing Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

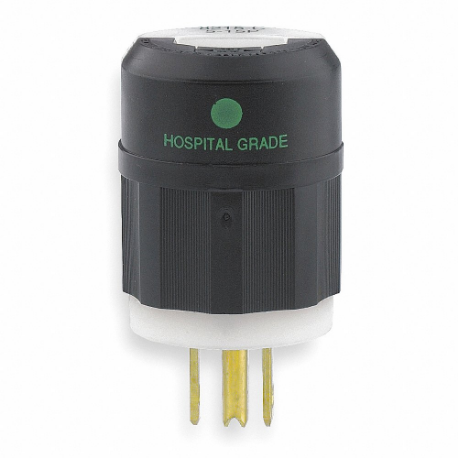

8215-C | 5-15P | 15A | 125V AC | Standard | Hospital Grade | Straight | Black, White | Impact Modified Nylon | €26.18 | |
 |

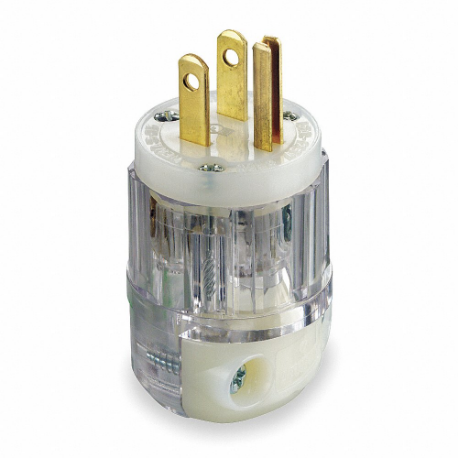

8215-CT | 5-15P | 15A | 125V AC | Standard | Hospital Grade | Straight | Clear | Super Tough Nylon | €40.70 | |
 |

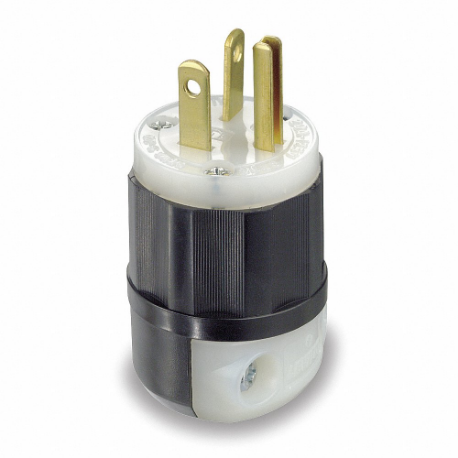

8315-C | 5-20P | 20A | 125V AC | Standard | Hospital Grade | Straight | Black, White | Impact Modified Nylon | €38.60 | |
 |

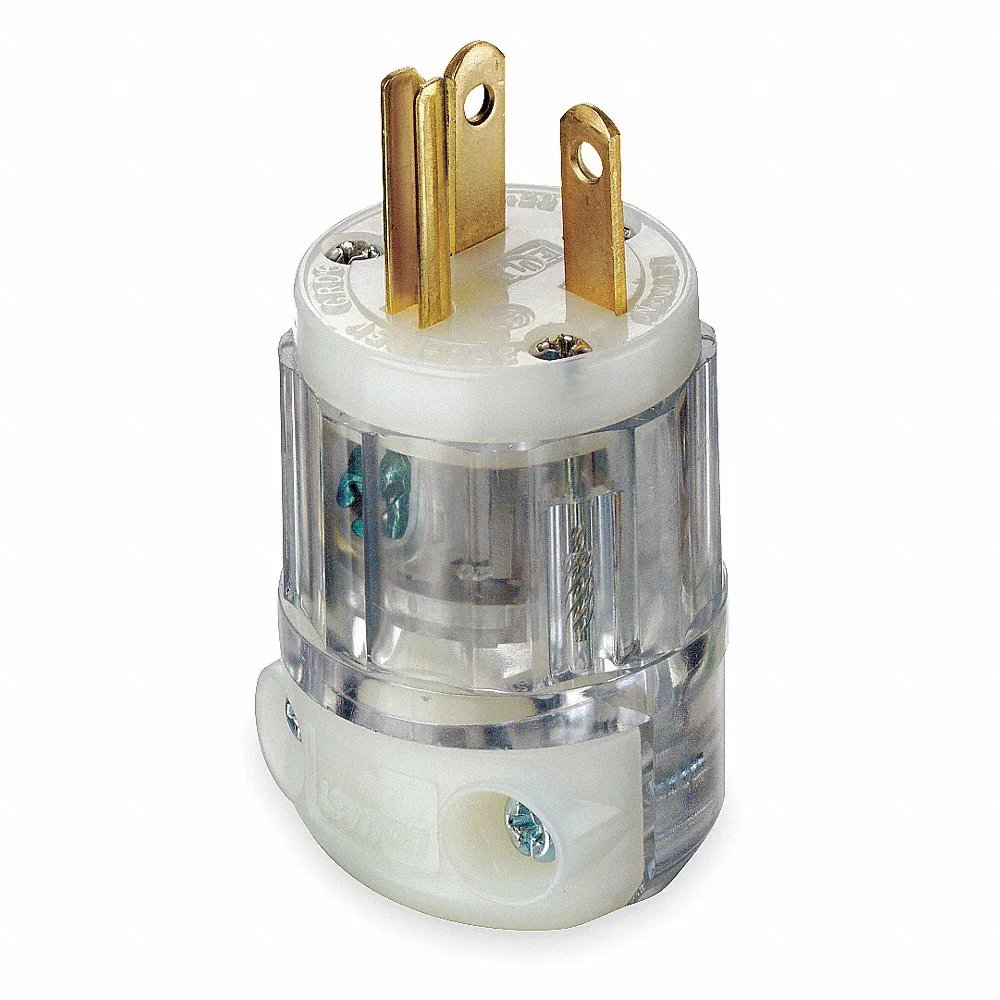

8315-PLC | 5-20P | 20A | 125V AC | Standard | Hospital | Straight | Clear | Super Tough Nylon | €49.13 | |
 |

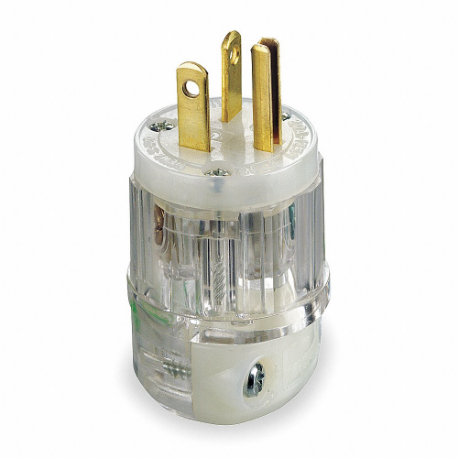

8315-CT | 5-20P | 20A | 125V AC | Standard | Hospital Grade | Straight | Clear | Super Tough Nylon | €37.78 | |
 |

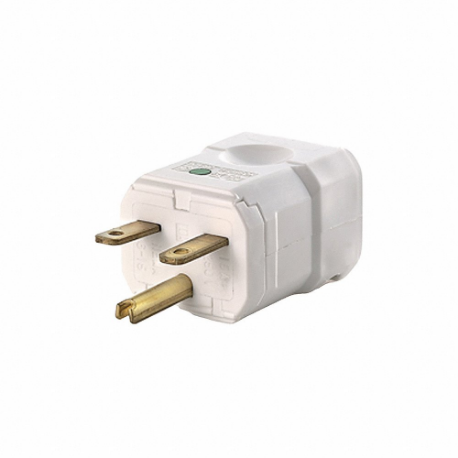

8656-V | 6-15P | 15A | 250V AC | Hinged | Hospital Grade | Straight | White | Super Tough Nylon | €34.85 | |
 |

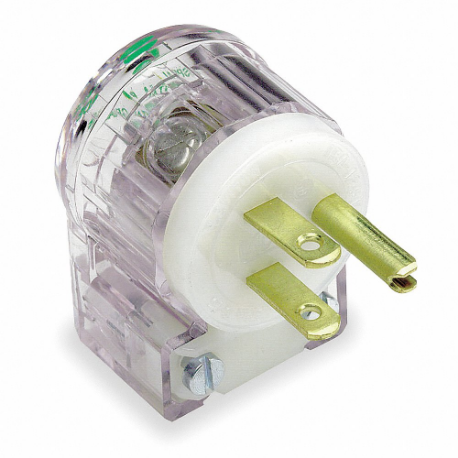

8215-CAT | 5-15P | 15A | 125V AC | Standard | Hospital Grade | Angled | Clear | Super Tough Nylon | €37.13 |
