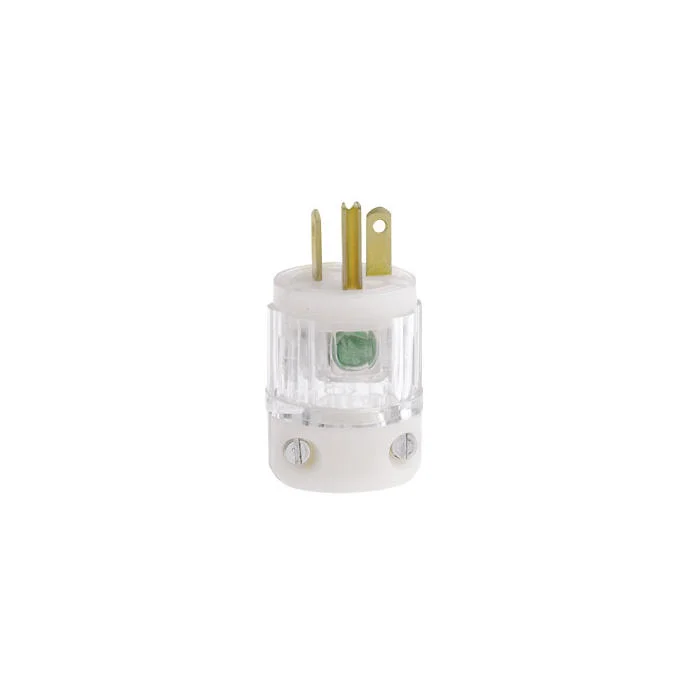

LEVITON 8315-CT Straight Blade Plug, 5-20P, 20 A, 125VAC, Clear, 2 Poles Terminals, Hospital Grade | CR9HKA 792U42

LEVITON 8315-CT Straight Blade Plug, 125 VAC, 20 A, 2 Poles, 3 Wires, Clear, Super Tough Nylon

Item: CR9HKAModel: 8315-CTCross Ref: 792U42
7 In Stock

Ships within 2 days via

€37.78
5.00% off
€35.89 /unit
Add To Cart
Request a Quote

Payment

Product Specifications:

Item Plug
Amps 20A
Amps Interrupting Certified For Current Interrupting At Full Rated Current
Assembly Screws Finish Zinc Plated
Assembly Screws Material Steel
Back Cover Thermoplastic
Blade Material Brass
Blades/contacts Solid Brass
Body Length 1.98"
Body Material Super Tough Nylon
Clamp Insert Material Nylon
Color Transparent
Connection Orientation Straight
Cord Range 0.245" to 0.7"
Cord-clamp Nylon
Device Type Straight Blade Plug
Dielectric Voltage Withstands 2000V Per UL498
Environment Dry
Face Dia. 1.39"
For Environment Dry
For Max. Cable Dia. 0.7"
For Min. Cable Dia. 0.245"
Grade Hospital Grade
Grounding Grounded , Grounding
Housing Color Clear
Housing Material Super Tough Nylon
Hp 1 hp
Insulation Material Nylon
Ip Rating Not Rated
Max. Operating Temp. 140°F
Max. Wire Size 10 AWG
Min. Operating Temp. -40°C , -40°F
Min. Wire Size 18 AWG
Nema Enclosure Rating Not Rated
Nema Plug Configuration 5-20P
Nema Rating NEMA WD-6
No. Of Blades 3
No. Of Poles 2
No. Of Wires 3
Operating Temp. -40°C to +60°C
Outside Dia. 1.53"
Phase 1
Polarized Yes
Product Datasheet leviton-8315-ct.pdf
Resistance Properties Chemical Resistant, Moisture Resistant, Shatter And Crack Resistant
Temp. Rise Max. 30°C After 250 Cycles Ol At 200 Percent Rated Current
Terminal Accom. 18 AWG to 10 AWG
Terminal Inside Dia. Black Hot, Green Ground, White Neutral
Terminal Screws Brass
Torque 10 lbs.-in. to 14 lbs.-in.
Ul 94 Flammability Rating V-2
Voltage 125V AC
Wire Connection Type Screw Terminal
Wire Module Nylon
Wiring Style Standard

Shipping Info:

Ship weight (kg) 0.07
Ship height (cm)31.12
Ship length (cm)37.47
Ship width (cm)15.24
Country of OriginMX

Documentation:

Datasheet

Product Variants

ProductModelVoltageAmpsHousing ColorColorConnection OrientationHousing MaterialFor Max. Cable Dia.HpPrice
LEVITON 8215-C Straight Blade Plug, 5-15P, 15 A, 125VAC, Black/White, 2 Poles Terminals | CR9HJN 792U08 8215-C125V AC15ABlack, WhiteBlack And WhiteStraightImpact Modified Nylon0.685"1/2 hp€26.18
LEVITON 8215-PLC Straight Blade Plug, 5-15P, 15 A, 125VAC, Clear, 2 Poles Terminals, Hospital Grade | CR9HJR 792U11 8215-PLC125V AC15AClearTransparentStraightSuper Tough Nylon0.7"1/2 hp€42.54
LEVITON 8215-CT Straight Blade Plug, 5-15P, 15 A, 125VAC, Clear, 2 Poles Terminals, Hospital Grade | CR9HJT 792U10 8215-CT125V AC15AClearTransparentStraightSuper Tough Nylon0.7"1/2 hp€40.70
LEVITON 8315-C Straight Blade Plug, 5-20P, 20 A, 125VAC, Black/White, 2 Poles Terminals | CR9HJX 792U40 8315-C125V AC20ABlack, WhiteBlack And WhiteStraightImpact Modified Nylon0.7"1 hp€38.60
LEVITON 8315-PLC Straight Blade Plug, 5-20P, 20 A, 125VAC, Clear, 2 Poles Terminals, Hospital Grade | CR9HJZ 792U43 8315-PLC125V AC20AClear-StraightSuper Tough Nylon0.7"1 hp€49.13
LEVITON 8656-V Straight Blade Plug, 6-15P, 15 A, 250VAC, White, 2 Poles Terminals, Hospital Grade | CR9HKF 792U58 8656-V250V AC15AWhiteWhiteStraightSuper Tough Nylon0.7"1 1/2 hp€34.85
LEVITON 8215-CAT Angle Straight Blade Plug, 5-15P, 15 A, 125VAC, Clear, 2 Poles | CR9JDK 792U09 8215-CAT125V AC15AClearTransparentAngledSuper Tough Nylon0.7"1/2 hp€37.13
