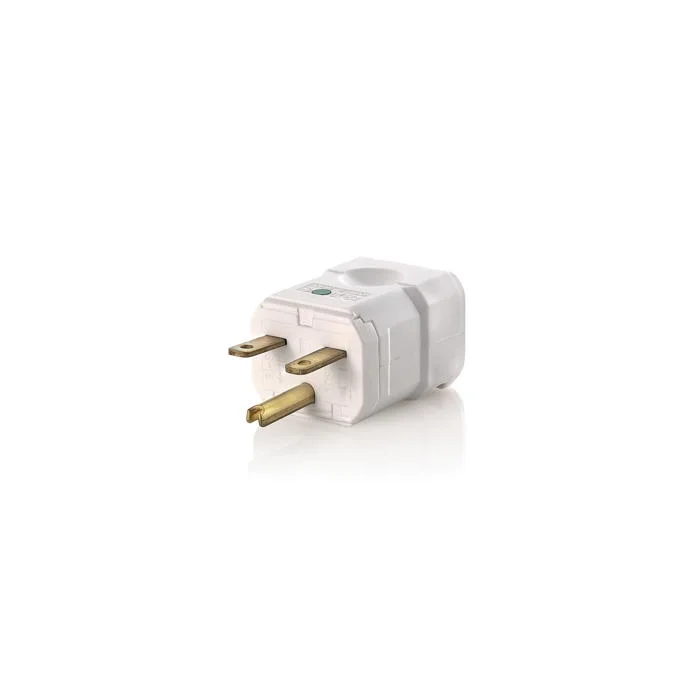

LEVITON 8656-V Cable Mount Grounding Straight Blade Plug, 250 VAC, 15 A, 2 Poles, 3 Wires, White
Item: CR9HKFModel: 8656-VCross Ref: 792U58
7 In Stock
Ships within 2 days via
5.00% off
€33.11 /unit
This product can only be shipped in multiples of 50Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Plug |
| Amps | 15A |
| Amps Interrupting | Certified For Current Interrupting At Full Rated Current |
| Assembly Screws Finish | Zinc Plated |
| Assembly Screws Material | Steel |
| Back Cover | Thermoplastic |
| Blade Material | Brass |
| Blades/contacts | Solid Brass |
| Body Length | 1.81" |
| Body Material | Super Tough Nylon |
| Clamp Insert Material | Nylon |
| Color | White |
| Connection Orientation | Straight |
| Cord Range | 0.245" to 0.7" |
| Cord-clamp | Nylon |
| Device Type | Straight Blade Plug |
| Dielectric Voltage | Withstands 2000V Per UL498 |
| Environment | Dry |
| For Environment | Dry |
| For Max. Cable Dia. | 0.7" |
| For Min. Cable Dia. | 0.245" |
| Grade | Hospital Grade |
| Grounding | Grounded , Grounding |
| Housing Color | White |
| Housing Material | Super Tough Nylon |
| Hp | 1 1/2 hp |
| Insulation Material | Nylon |
| Ip Rating | Not Rated |
| Max. Operating Temp. | 140°F |
| Max. Wire Size | 10 AWG |
| Min. Operating Temp. | -40°C , -40°F |
| Min. Wire Size | 18 AWG |
| Nema Enclosure Rating | Not Rated |
| Nema Plug Configuration | 6-15P |
| Nema Rating | NEMA WD-6 |
| No. Of Blades | 3 |
| No. Of Poles | 2 |
| No. Of Wires | 3 |
| Operating Temp. | -40°C to +60°C |
| Phase | 1 |
| Polarized | Yes |
| Resistance Properties | Chemical Resistant, Moisture Resistant, Shatter And Crack Resistant |
| Temp. Rise | Max. 30°C After 250 Cycles Ol At 200 Percent Rated Current |
| Terminal Accom. | 18 AWG to 10 AWG |
| Terminal Inside Dia. | Brass Hot, Green Ground, White Neutral |
| Terminal Screws | Brass |
| Ul 94 Flammability Rating | V-2 |
| Voltage | 250V AC |
| Wire Connection Type | Screw Terminal |
| Wire Module | Nylon |
| Wiring Style | Hinged |
Shipping Info:
| Ship weight (kg) | 0.81 |
| Ship height (cm) | 22.86 |
| Ship length (cm) | 23.81 |
| Ship width (cm) | 7.62 |
| Country of Origin | MX |
Product Variants
| Product | Model | Voltage | Amps | Housing Color | Color | Connection Orientation | Housing Material | For Max. Cable Dia. | Hp | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
8215-C | 125V AC | 15A | Black, White | Black And White | Straight | Impact Modified Nylon | 0.685" | 1/2 hp | €26.18 | |
 |
8215-PLC | 125V AC | 15A | Clear | Transparent | Straight | Super Tough Nylon | 0.7" | 1/2 hp | €42.54 | |
 |
8215-CT | 125V AC | 15A | Clear | Transparent | Straight | Super Tough Nylon | 0.7" | 1/2 hp | €40.70 | |
 |
8315-C | 125V AC | 20A | Black, White | Black And White | Straight | Impact Modified Nylon | 0.7" | 1 hp | €38.60 | |
 |
8315-PLC | 125V AC | 20A | Clear | - | Straight | Super Tough Nylon | 0.7" | 1 hp | €49.13 | |
 |
8315-CT | 125V AC | 20A | Clear | Transparent | Straight | Super Tough Nylon | 0.7" | 1 hp | €37.78 | |
 |
8215-CAT | 125V AC | 15A | Clear | Transparent | Angled | Super Tough Nylon | 0.7" | 1/2 hp | €37.13 |
