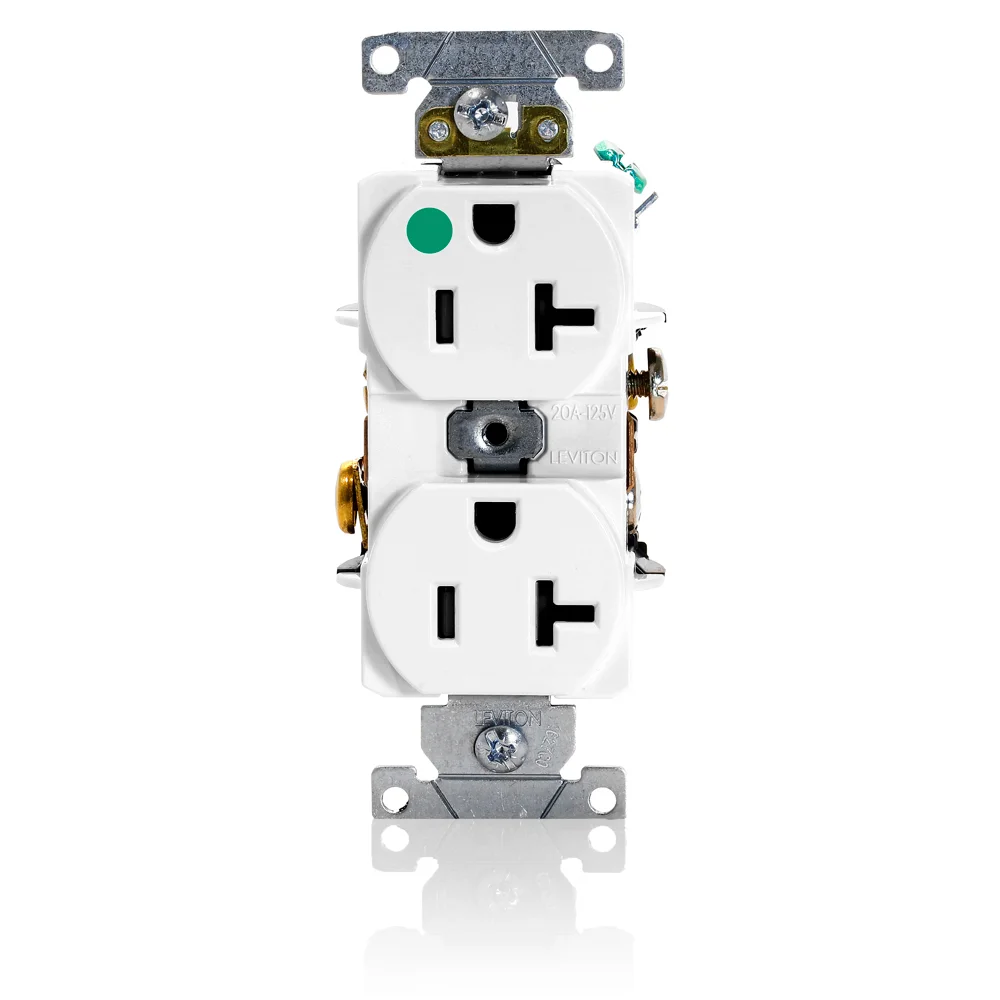

LEVITON 8300-HW Receptacle, Duplex, 5-20R, 20 A, 125V AC, White, 2 Pole / 3 Wire Poles & Wires
Item: CR9HXUModel: 8300-HWCross Ref: 792U22
7 In Stock
Ships within 2 days via
5.00% off
€20.72 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Receptacle |
| Amps | 20A |
| Body Material | Nylon |
| Clamp Nuts Finish | Zinc Plated |
| Clamp Nuts Material | Steel |
| Color | White |
| Connection Orientation | Straight |
| Cover Type | No Cover |
| Current Limiting | Full Rated Current |
| Current Rating | 20A |
| Device Type | Duplex Receptacle Outlet |
| Dielectric Voltage | Withstands 2000V Per UL498 |
| Face Material | Nylon |
| Face Plate Height | 2 4/5" |
| Features | Smooth Face |
| Flammability | Rated V-2 Per UL94 |
| Gfci | No |
| Grade | Heavy Duty Hospital Grade , Hospital Grade Fed. Spec. |
| Ground Clips Material | Brass |
| Grounding | Grounded , Self Grounding |
| Grounding Screw Material | Brass |
| Housing Color | White |
| Hp Rating | 1 hp |
| Includes Mounting Hardware | Yes |
| Line Contacts Material | Phosphor Bronze |
| Mount Hole Center-to-center Height | 3.3" |
| Mounting Hardware Included | Yes |
| Mounting Type | Flush |
| Nema Rating | NEMA WD-6 |
| Nema Receptacle Configuration | NEMA 5-20R |
| Number Of Outlets | 2 |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Operating Temp. | -40°C to +60°C |
| Phase | Single |
| Polarized | Yes |
| Receptacle Type | Duplex |
| Resistance Property | General Purpose |
| Screw Terminal Torque | 14 lbs.-in. to 18 lbs.-in. |
| Standards | Ansi C73, Csa C22.2 No. 42 File E152105, Nema Wd-6, Rohs Compliant, Ul 498Hg File E13399, Ul Federal Specification Wc-596 File E13399 |
| Strap Finish | Galvanized |
| Strap Material | Steel With Riveted Ground Contacts |
| Temp. Rise | Max. 30°C After 250 Cycles Ol At 200 Percent Rated Current |
| Terminal Accom. | 14 AWG to 10 AWG |
| Terminal Id | Brass Hot, Green Ground, Silver Neutral |
| Terminal Screws Material | Brass |
| Termination | Back Or Side Wire |
| Torque Range | 14 lbs.-in. to 16 lbs.-in. |
| Voltage | 125V AC |
| Voltage Rating | 125V AC |
| Wire Connection Location | Back, Side |
| Wire Connection Type | Screw Terminals |
Shipping Info:
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 21.59 |
| Ship length (cm) | 32.39 |
| Ship width (cm) | 3.84 |
| Country of Origin | MX |
Product Variants
| Product | Model | Receptacle Type | Housing Color | Grade | Color | Nema Rating | Grounding | Current Rating | Voltage Rating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

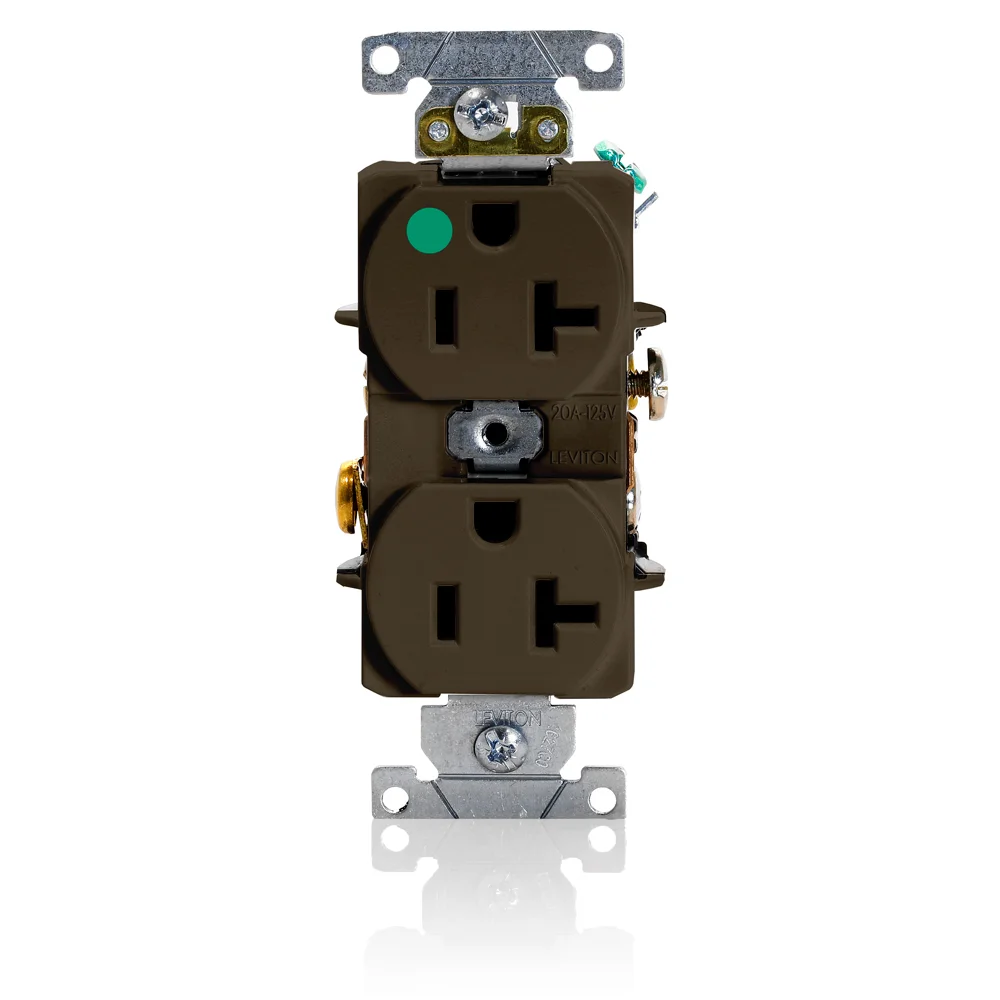

8300-H | Duplex | Brown | Hospital Grade Fed. Spec. | Brown | NEMA WD-6 | Grounded | 20A | 125V AC | €21.65 | |
 |

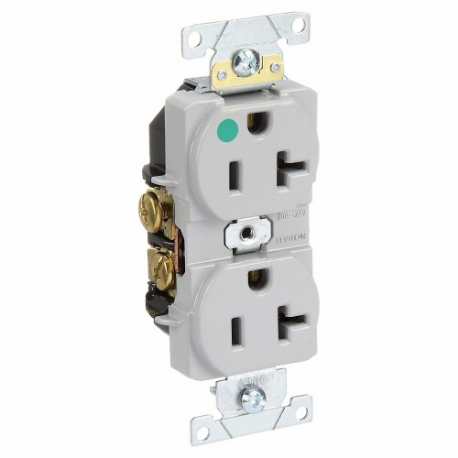

8300-HGY | Duplex | Gray | Hospital Grade Fed. Spec. | Gray | NEMA WD-6 | Grounded | 20A | 125V AC | €24.95 | |
 |

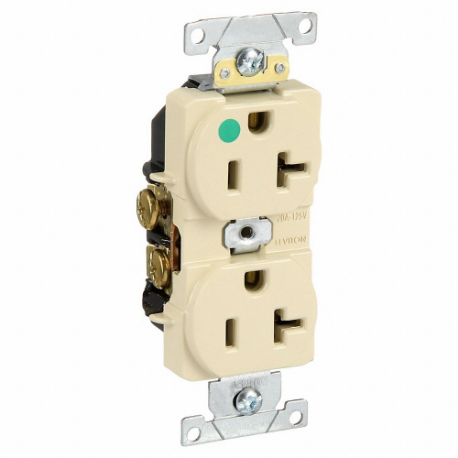

8300-HI | Duplex | Ivory | Hospital Grade Fed. Spec. | Ivory | NEMA WD-1 And NEMA WD-6 | Grounded | 20A | 125V AC | €21.23 | |
 |
8300-HR | Duplex | Red | Hospital Grade Fed. Spec. | Red | NEMA WD-6 | Grounded | 20A | 125V AC | €20.52 | |
 |

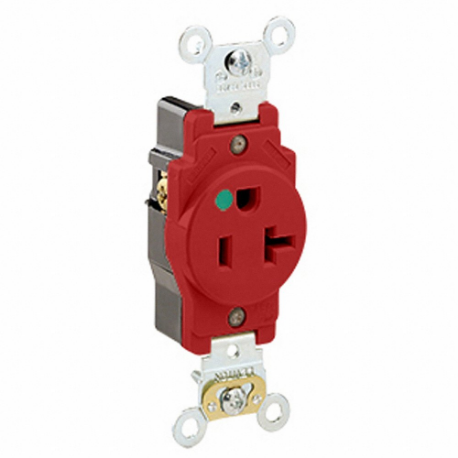

8310-R | Single | Red | Hospital Grade Fed. Spec. | Red | NEMA WD-6 | Grounded | 20A | 125V AC | €47.88 |
