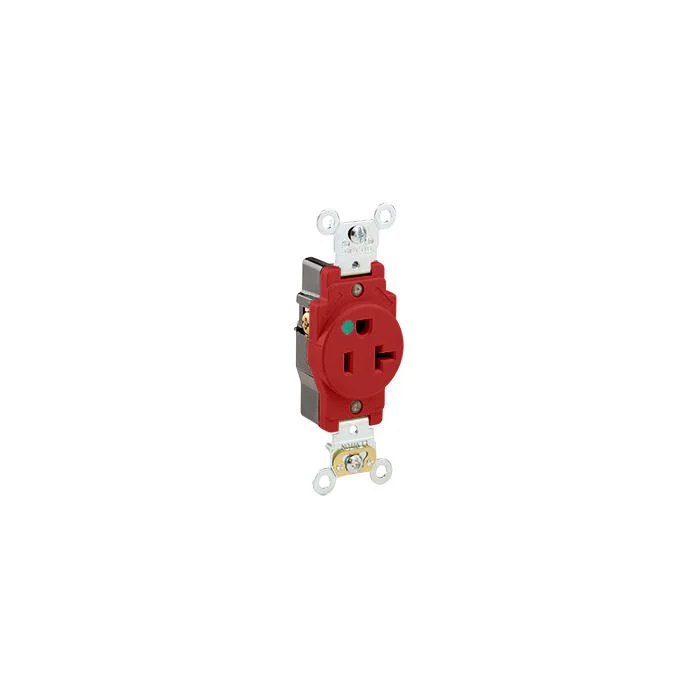

LEVITON 8310-R Receptacle, Single, 5-20R, 20 A, 125V AC, Red, 2 Poles, Screw Terminals | CR9HZT 792U39

LEVITON 8310-R Extra Heavy Duty Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Red, Thermoplastic

Item: CR9HZTModel: 8310-RCross Ref: 792U39
7 In Stock

Ships within 2 days via

€47.88
5.00% off
€45.48 /unit
This product can only be shipped in multiples of 50
Add To Cart
Request a Quote

Payment

Product Specifications:

Item Receptacle
Amps 20A
Body Material Nylon
Clamp Nuts Finish Zinc Plated
Clamp Nuts Material Steel
Color Red
Connection Orientation Straight
Cover Type No Cover
Current Limiting Full Rated Current
Current Rating 20A
Device Type Single Receptacle Outlet
Dielectric Voltage Withstands 2000V Per UL498
Face Material Nylon
Features Smooth Face
Flammability Rated V-2 Per UL94
Gfci No
Grade Heavy Duty Hospital Grade , Hospital Grade Fed. Spec.
Ground Clips Material Brass
Grounding Grounded , Self Grounding
Grounding Screw Finish Plated
Grounding Screw Material Steel
Housing Color Red
Hp Rating 1 hp
Line Contacts Material Phosphor Bronze
Mounting Type Flush
Nema Rating NEMA WD-6
Nema Receptacle Configuration NEMA 5-20R
Number Of Outlets 2
Number Of Poles 2
Number Of Wires 3
Operating Temp. -40°C to +60°C
Phase Single
Polarized Yes
Product Datasheet leviton-8310-r.pdf
Receptacle Type Single
Resistance Property General Purpose
Screw Terminal Torque 14 lbs.-in. to 18 lbs.-in.
Standards Ansi C73, Csa C22.2 No. 42 File E152105, Rohs Compliant, Ul 498Hg File E13399, Ul Federal Specification Wc-596 File E13399
Strap Finish Zinc Plated
Strap Material Steel
Temp. Rise Max. 30°C After 250 Cycles Ol At 200 Percent Rated Current
Terminal Accom. 14 AWG to 10 AWG
Terminal Id Brass Hot, Green Ground, Silver Neutral
Terminal Screws Finish Plated
Terminal Screws Material Brass
Termination Back Or Side Wire
Torque Range 14 lbs.-in. to 16 lbs.-in.
Voltage 125V AC
Voltage Rating 125V AC
Wire Connection Location Back, Side
Wire Connection Type Screw Terminals

Shipping Info:

Ship weight (kg) 0.45
Ship height (cm)22.23
Ship length (cm)31.12
Ship width (cm)3.33
Country of OriginMX

Documentation:

Datasheet

Product Variants

ProductModelReceptacle TypeHousing ColorGradeColorNema RatingGroundingCurrent RatingVoltage RatingPrice
LEVITON 8300-H Receptacle, Duplex, 5-20R, 20 A, 125V AC, Brown, 2 Poles, Screw Terminals | CR9HVW 792U15 8300-HDuplexBrownHospital Grade Fed. Spec.BrownNEMA WD-6Grounded20A125V AC€21.65
LEVITON 8300-HGY Receptacle, Duplex, 5-20R, 20 A, 125V AC, Gray, 2 Poles, Screw Terminals | CR9HWE 792U16 8300-HGYDuplexGrayHospital Grade Fed. Spec.GrayNEMA WD-6Grounded20A125V AC€24.95
LEVITON 8300-HI Receptacle, Duplex, 5-20R, 20 A, 125V AC, Ivory, 2 Poles, Screw Terminals | CR9HWQ 792U17 8300-HIDuplexIvoryHospital Grade Fed. Spec.IvoryNEMA WD-1 And NEMA WD-6Grounded20A125V AC€21.23
LEVITON 8300-HR Receptacle, Duplex, 5-20R, 20 A, 125V AC, Red, 2 Poles, Screw Terminals | CR9HXK 792U21 8300-HRDuplexRedHospital Grade Fed. Spec.RedNEMA WD-6Grounded20A125V AC€20.52
LEVITON 8300-HW Receptacle, Duplex, 5-20R, 20 A, 125V AC, White, 2 Poles, Screw Terminals | CR9HXU 792U22 8300-HWDuplexWhiteHospital Grade Fed. Spec.WhiteNEMA WD-6Grounded20A125V AC€21.81
