LEVITON 8300-H Receptacle, Duplex, 5-20R, 20 A, 125V AC, Brown, 2 Poles, Screw Terminals | CR9HVW 792U15

LEVITON 8300-H Heavy Duty Slim Body Straight Blade Duplex Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Brown

Item: CR9HVWModel: 8300-HCross Ref: 792U15
7 In Stock
Color

Ships within 2 days via

€21.65
5.00% off
€20.57 /unit
Add To Cart
Request a Quote

Payment

Product Specifications:

Item Receptacle
Ac Hp Ratings At Rated Voltage 1 hp
Amps 20A
Body Material Nylon
Clamp Nuts Finish Zinc Plated
Clamp Nuts Material Steel
Color Brown
Connection Orientation Straight
Cover Type No Cover
Current Limiting Full Rated Current
Current Rating 20A
Device Type Duplex Receptacle Outlet
Dielectric Voltage Withstands 2000V Per UL498
Face Material Nylon
Face Plate Height 2 4/5"
Features Smooth Face
Flammability Rated V-2 Per UL94
Gfci No
Grade Heavy Duty Hospital Grade , Hospital Grade Fed. Spec.
Ground Clips Material Brass
Grounding Grounded , Self Grounding
Grounding Screw Material Brass
Grounding Screw Size #8-32
Housing Color Brown
Line Contacts Material Brass
Line Contacts Style Triple Wipe
Mount Hole Center-to-center Height 3.3"
Mounting Type Flush
Nema Rating NEMA WD-6
Nema Receptacle Configuration NEMA 5-20R
Number Of Outlets 2
Number Of Poles 2
Number Of Wires 3
Operating Temp. -40°C to +60°C
Phase Single
Polarized Yes
Receptacle Type Duplex
Resistance Property General Purpose
Screw Terminal Torque 14 lbs.-in. to 18 lbs.-in.
Series 8300-H Series
Standards Ansi C73, Csa C22.2 No. 42 File E152105, Csa Certified, Nema Wd-6, Ul 498Hg File E13399, Ul Federal Specification Wc-596 File E13399, Ul Listed
Strap Material Steel
Temp. Rise Max. 30°C After 250 Cycles Ol At 200 Percent Rated Current
Terminal Accom. 14 AWG to 10 AWG
Terminal Id Brass Hot, Green Ground, White Neutral
Terminal Screws Brass 10-32
Termination Back Or Side Wire
Ul 94 Flammability Rating V-2
Voltage 125V AC
Voltage Rating 125V AC
Wire Connection Location Back, Side
Wire Connection Type Screw Terminals
Yoke Finish Zinc Plated
Yoke Material Steel

Shipping Info:

Ship weight (kg) 0.09
Ship height (cm)21.59
Ship length (cm)32.39
Ship width (cm)3.84
Country of OriginMX

Product Variants

ProductModelReceptacle TypeHousing ColorGradeColorNema RatingGroundingCurrent RatingVoltage RatingPrice
LEVITON 8300-HGY Receptacle, Duplex, 5-20R, 20 A, 125V AC, Gray, 2 Poles, Screw Terminals | CR9HWE 792U16 8300-HGYDuplexGrayHospital Grade Fed. Spec.GrayNEMA WD-6Grounded20A125V AC€24.95
LEVITON 8300-HI Receptacle, Duplex, 5-20R, 20 A, 125V AC, Ivory, 2 Poles, Screw Terminals | CR9HWQ 792U17 8300-HIDuplexIvoryHospital Grade Fed. Spec.IvoryNEMA WD-1 And NEMA WD-6Grounded20A125V AC€21.23
LEVITON 8300-HR Receptacle, Duplex, 5-20R, 20 A, 125V AC, Red, 2 Poles, Screw Terminals | CR9HXK 792U21 8300-HRDuplexRedHospital Grade Fed. Spec.RedNEMA WD-6Grounded20A125V AC€20.52

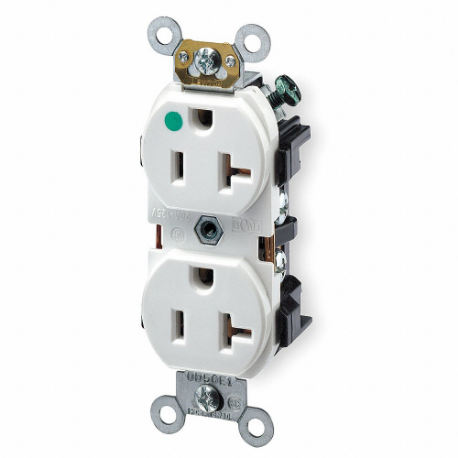

LEVITON 8300-HW Receptacle, Duplex, 5-20R, 20 A, 125V AC, White, 2 Poles, Screw Terminals | CR9HXU 792U22 8300-HWDuplexWhiteHospital Grade Fed. Spec.WhiteNEMA WD-6Grounded20A125V AC€21.81
LEVITON 8310-R Receptacle, Single, 5-20R, 20 A, 125V AC, Red, 2 Poles, Screw Terminals | CR9HZT 792U39 8310-RSingleRedHospital Grade Fed. Spec.RedNEMA WD-6Grounded20A125V AC€47.88
