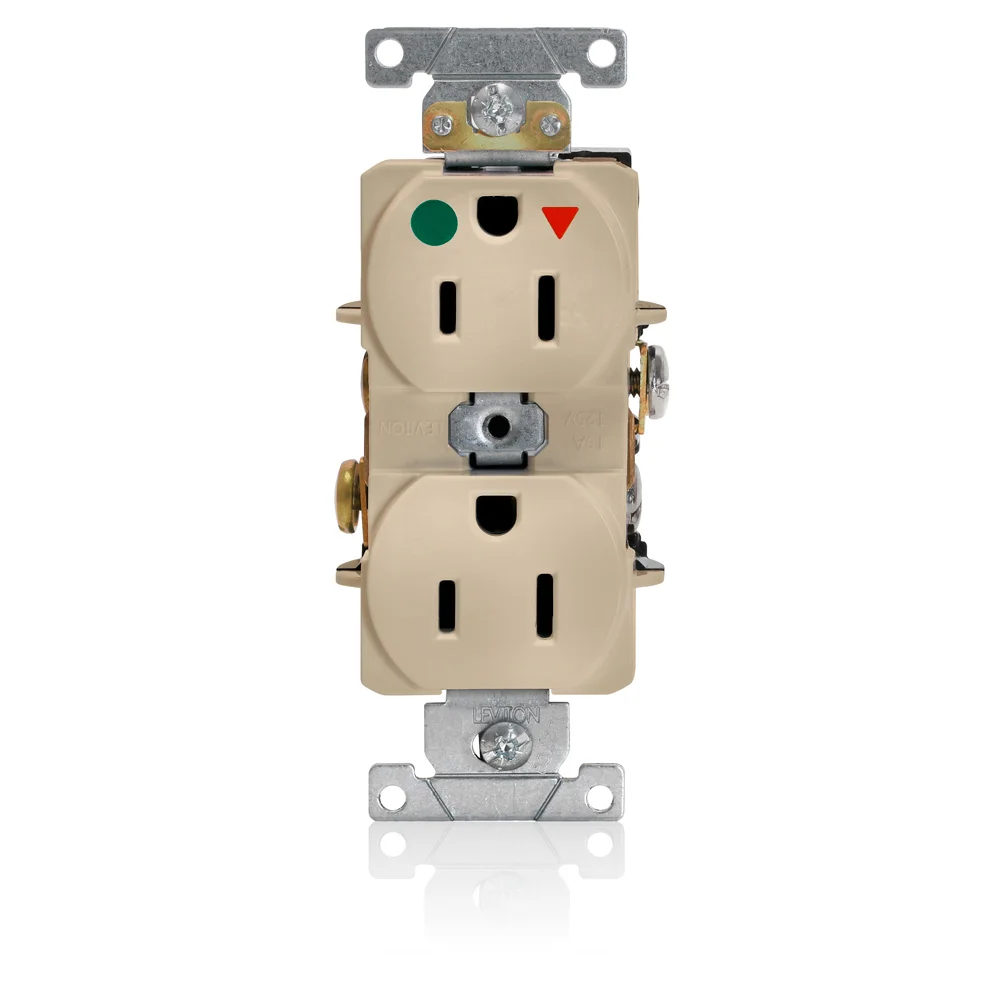

LEVITON 8200-IGI Heavy Duty Isolated Ground Narrow Body Duplex Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Ivory

Item: CR9JAVModel: 8200-IGICross Ref: 792TZ7

7 In Stock

Color

Ships within 2 days via

~~€53.80~~

5.00% off

€51.10 /unit

This product can only be shipped in multiples of 50

Add To Cart

Request a Quote

Payment

Product Specifications:

Item	Receptacle
Ac Hp @ Rated Voltage	1/2 hp
Amps	15A
Amps Limiting	Full Rated Current
Body Material	PBT Polyester Blend
Clamp Nuts Material	Brass
Clamp Nuts Size	0.03"
Color	Ivory
Connection Orientation	Straight
Cover Type	No Cover
Device Type	Duplex Receptacle Outlet
Dielectric Voltage	Withstands 3000V Minimum
Face Material	PBT Polyester Blend
Face Plate Height	2 4/5"
Features	Smooth Face
Flammability	Rated V-2 Per UL 94
Function	Isolated Ground
Gfci	No
Grade	Heavy Duty Hospital Grade , Hospital Grade Fed. Spec
Ground Clips Material	Brass
Ground Contacts Material	Brass
Grounding	Isolated Ground , Self Grounding
Grounding Screw	#8 Hex Head, Triple Drive Bass
Housing Color	Ivory
Included Mounting Hardware	Yes
Line Contacts Material	Phosphor Bronze
Line Contacts Thickness	0.03"
Mount Hole Center To Center Height	3.3"
Mounting Hardware Included	Yes
Mounting Screws Finish	Triple Drive Plated
Mounting Screws Material	Steel
Mounting Type	Flush
Nema Rating	NEMA WD-6
Nema Receptacle Configuration	NEMA 5-15R
No. Of Outlets	2
No. Of Poles	2
No. Of Wires	3
Operating Temp.	-40°C to +60°C
Phase	1
Polarized	Yes
Receptacle Type	Duplex
Resistance Property	General Purpose
Screw Terminal Torque	14 lbs.-in. to 18 lbs.-in.
Shutter Mechanism	Acetal
Strap Finish	Galvanized
Strap Grade	Grade G60
Strap Material	Steel
Temp. Rise	Max. 30°C Temperature Rise At Full Rated Current
Terminal Accom.	14 AWG to 10 AWG
Terminal Clamp Material	Brass
Terminal Inside Dia.	Brass Hot, Green Ground, Silver Neutral
Terminal Screws	#8 Triple Drive Brass
Termination	Back Or Side Wire
Ul 94 Flammability Rating	V-2
Voltage	125V AC
Wire Connection Location	Back, Side
Wire Connection Type	Screw Terminal
Wire Type	Stranded Or Solid

Shipping Info:

Ship weight (kg)	0.11
Ship height (cm)	21.59
Ship length (cm)	32.39
Ship width (cm)	3.94
Country of Origin	MX

Product Variants

Model	Amps	Housing Color	Grade	Color	Nema Receptacle Configuration	Grounding	Face Material	Line Contacts Material	Price
8200-IGB	15A	Brown	Heavy Duty Hospital Grade	Brown	NEMA 5-15R	Isolated Ground	PBT Polyester Blend	Phosphor Bronze	€53.80
8200-IGG	15A	Gray	Heavy Duty Hospital Grade	Gray	NEMA 5-15R	Isolated Ground	PBT Polyester Blend	Phosphor Bronze	€53.80
8200-IG	15A	Orange	Heavy Duty Hospital Grade	-	NEMA 5-15R	Isolated Ground	PBT Polyester Blend	Phosphor Bronze	€56.57
8200-IGR	15A	Red	Heavy Duty Hospital Grade	Red	NEMA 5-15R	Isolated Ground	PBT Polyester Blend	Phosphor Bronze	€60.58
8200-IGW	15A	White	Heavy Duty Hospital Grade	White	NEMA 5-15R	Isolated Ground	PBT Polyester Blend	Phosphor Bronze	€59.43
8300-IGB	20A	Brown	Heavy Duty Hospital Grade	Brown	NEMA 5-20R	Isolated Ground	PBT Polyester Blend	Phosphor Bronze	€82.96
8300-IGG	20A	Gray	Heavy Duty Hospital Grade	Gray	NEMA 5-20R	Isolated Ground	Nylon	Brass	€82.96
