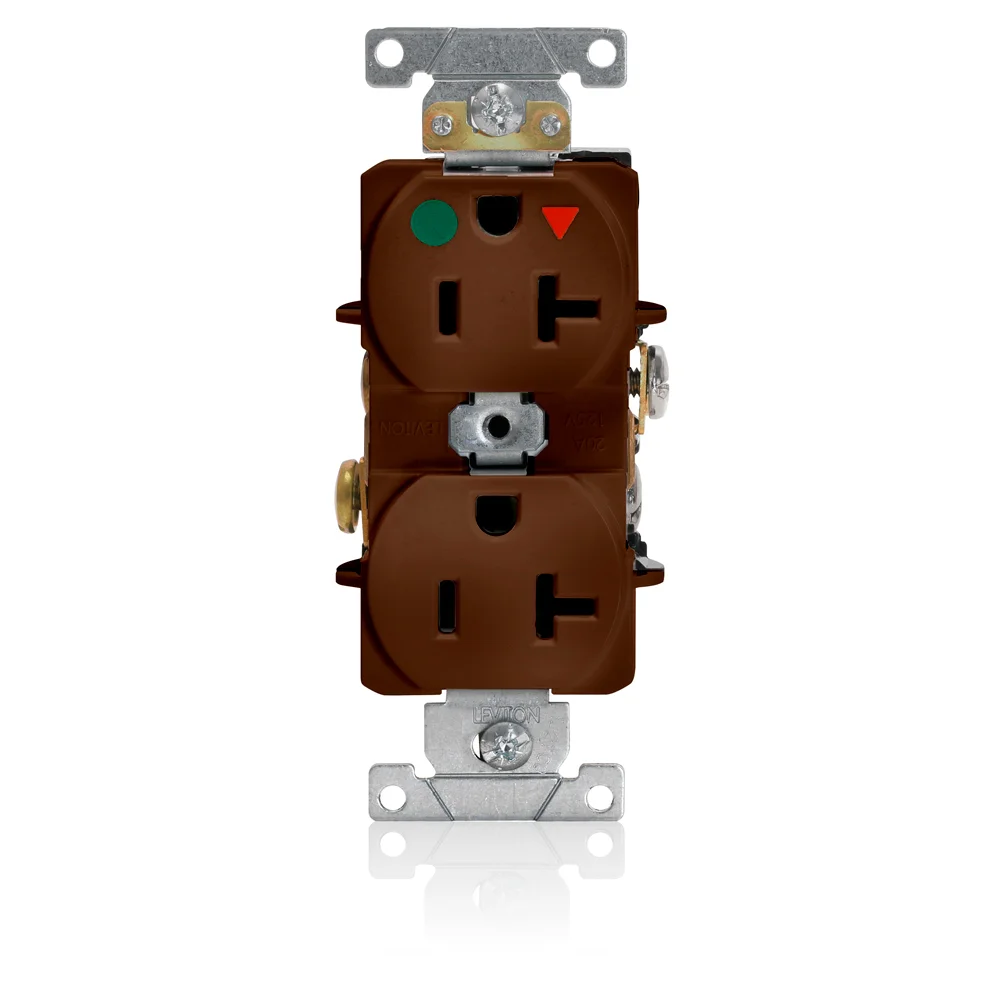

LEVITON 8300-IGB Duplex Heavy Duty Isolated Grounding Straight Blade Receptacle, 1 Phase, 250 VAC, 20 A, 2 Poles, 3 Wires, Brown
Item: CR9HVYModel: 8300-IGBCross Ref: 792U24
7 In Stock
Ships within 2 days via
5.00% off
€78.81 /unit
This product can only be shipped in multiples of 50Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Receptacle |
| Ac Hp Ratings At Rated Voltage | 1 hp |
| Amps | 20A |
| Body Material | PBT Polyester Blend |
| Clamp Nuts Material | Brass |
| Clamp Nuts Size | 0.03" |
| Color | Brown |
| Connection Orientation | Straight |
| Cover Type | No Cover |
| Current Limiting | Full Rated Current |
| Current Rating | 20A |
| Device Type | Duplex Receptacle Outlet |
| Dielectric Voltage | Withstands 3000V Minimum |
| Face Material | PBT Polyester Blend |
| Face Plate Height | 2 4/5" |
| Features | Smooth Face |
| Flammability | Rated V-2 Per UL94 |
| Function | Isolated Ground |
| Gfci | No |
| Grade | Heavy Duty Hospital Grade , Hospital Grade Fed. Spec. |
| Ground Clips Material | Brass |
| Ground Contacts Material | Brass |
| Grounding | Isolated Ground , Self Grounding |
| Grounding Screw | #8 Hex Head, Triple Drive Bass |
| Housing Color | Brown |
| Includes Mounting Hardware | Yes |
| Line Contacts Material | Phosphor Bronze |
| Line Contacts Thickness | 0.03" |
| Mount Hole Center-to-center Height | 3.3" |
| Mounting Hardware Included | Yes |
| Mounting Screws Finish | Triple Drive Plated |
| Mounting Screws Material | Steel |
| Mounting Type | Flush |
| Nema Rating | NEMA WD-6 |
| Nema Receptacle Configuration | NEMA 5-20R |
| Number Of Outlets | 2 |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Operating Temp. | -40°C to +60°C |
| Phase | Single |
| Polarized | Yes |
| Receptacle Type | Duplex |
| Resistance Property | General Purpose |
| Screw Terminal Torque | 14 lbs.-in. to 18 lbs.-in. |
| Shutter Mechanism | Acetal |
| Standards | Ansi C73, Csa C22.2 No. 42 File E152105, Culus Nom-Ance, Nema Wd-6, Rohs Compliant, Ul 498 Federal Specification W-C-569 Csa C22.2 No. 42, Ul 498Hg File E13399, Ul Federal Specification Wc-596 File E13399 |
| Strap Finish | Galvanized |
| Strap Grade | Grade G60 |
| Strap Material | Steel |
| Temp. Rise | Max. 30°C Temperature Rise At Full Rated Current |
| Terminal Accom. | 14 AWG to 10 AWG |
| Terminal Clamp Material | Brass |
| Terminal Id | Brass Hot, Green Ground, Silver Neutral |
| Terminal Screws | #8 Triple Drive Brass |
| Termination | Back Or Side Wire |
| Ul 94 Flammability Rating | V-2 |
| Voltage | 125V AC |
| Voltage Rating | 125V AC |
| Wire Connection Location | Back, Side |
| Wire Connection Type | Screw Terminals |
| Wire Type | Stranded Or Solid |
Shipping Info:
| Ship weight (kg) | 0.45 |
| Ship height (cm) | 21.59 |
| Ship length (cm) | 32.39 |
| Ship width (cm) | 3.94 |
| Country of Origin | MX |
Product Variants
| Product | Model | Current Rating | Housing Color | Grade | Nema Receptacle Configuration | Grounding | Amps | Body Material | Color | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
8200-IGB | 15A | Brown | Hospital Grade Fed. Spec. | NEMA 5-15R | Isolated Ground | 15A | PBT Polyester Blend | Brown | €53.80 | |
 |

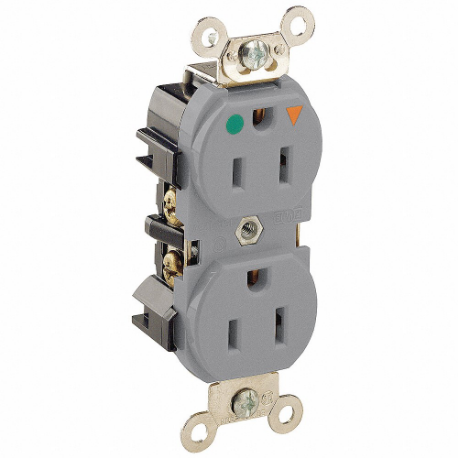

8200-IGG | 15A | Gray | Hospital Grade Fed. Spec. | NEMA 5-15R | Isolated Ground | 15A | PBT Polyester Blend | Gray | €53.80 | |
 |
8200-IG | 15A | Orange | Hospital Grade Fed. Spec. | NEMA 5-15R | Isolated Ground | 15A | PBT Polyester Blend | - | €56.57 | |
 |
8200-IGR | 15A | Red | Hospital Grade Fed. Spec. | NEMA 5-15R | Isolated Ground | 15A | PBT Polyester Blend | Red | €60.58 | |
 |
8200-IGW | 15A | White | Hospital Grade Fed. Spec. | NEMA 5-15R | Isolated Ground | 15A | PBT Polyester Blend | White | €59.43 | |
 |
8300-IGG | 20A | Gray | Hospital Grade Fed. Spec. | NEMA 5-20R | Isolated Ground | 20A | Nylon | Gray | €82.96 | |
 |
8300-IGI | 20A | Ivory | Hospital Grade Fed. Spec. | NEMA 5-20R | Isolated Ground | 20A | - | - | €73.56 |
