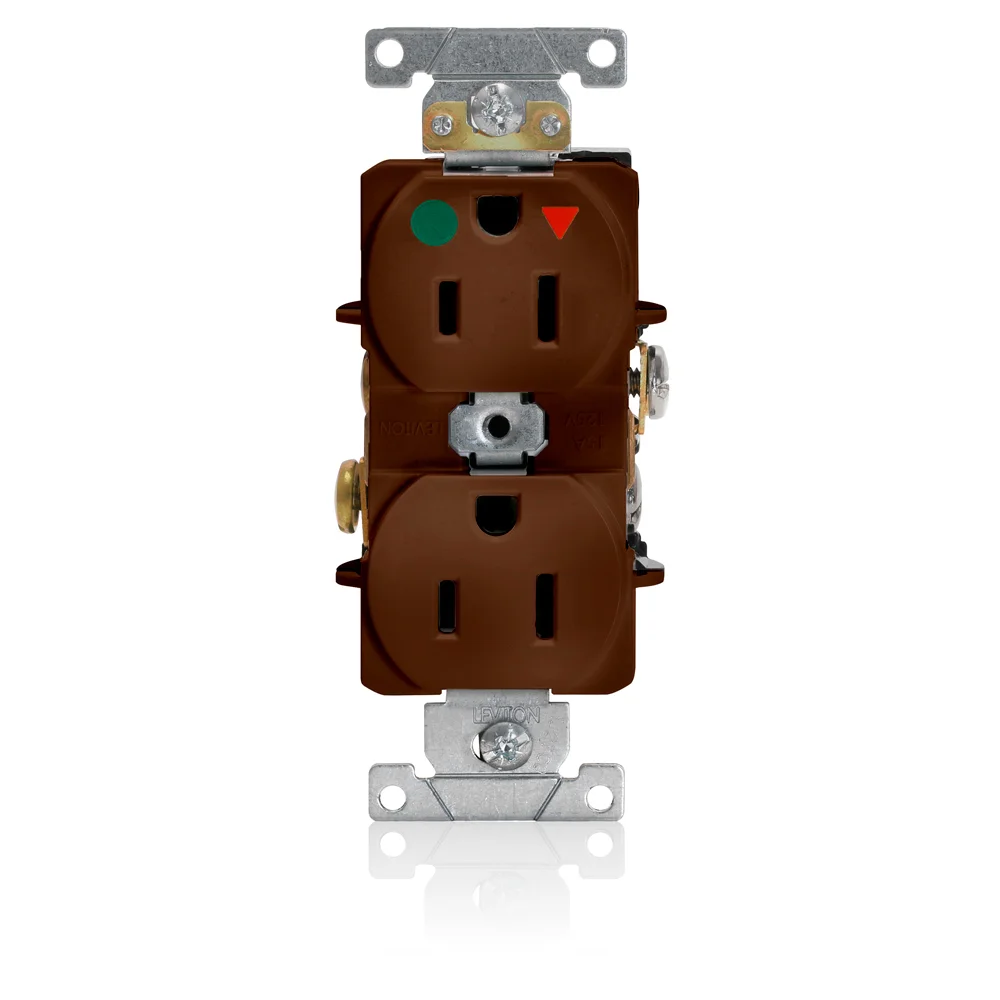

LEVITON 8200-IGB Receptacle, Duplex, 5-15R, 15 A, 125V AC, Brown, 2 Poles, Screw Terminals
Item: CR9HTXModel: 8200-IGBCross Ref: 792TZ5
7 In Stock
Ships within 2 days via
10.00% off
€48.42 /unit
This product can only be shipped in multiples of 50Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Receptacle |
| Amps | 15A |
| Color | Brown |
| Connection Orientation | Straight |
| Cover Type | No Cover |
| Current Rating | 15A |
| Face Plate Height | 2 4/5" |
| Gfci | No |
| Grade | Hospital Grade Fed. Spec. |
| Grounding | Isolated Ground |
| Housing Color | Brown |
| Includes Mounting Hardware | Yes |
| Mounting Hardware Included | Yes |
| Mounting Type | Flush |
| Nema Receptacle Configuration | NEMA 5-15R |
| Number Of Outlets | 2 |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Phase | Single |
| Polarized | Yes |
| Receptacle Type | Duplex |
| Resistance Property | General Purpose |
| Standards | Ansi C73, Culus Nom-Ance, Nema Wd-6, Rohs Compliant, Ul 498 Federal Specification W-C-569 Csa C22.2 No. 42 Csa C22.2 No. 42 File E152105, Ul 498Hg File E13399, Ul Federal Specification Wc-596 File E13399 |
| Ul 94 Flammability Rating | V-2 |
| Voltage | 125V AC |
| Voltage Rating | 125V AC |
| Wire Connection Location | Back, Side |
| Wire Connection Type | Screw Terminals |
Shipping Info:
| Ship weight (kg) | 0.11 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.82 |
| Ship width (cm) | 2.54 |
| Country of Origin | MX |
Product Variants
| Product | Model | Current Rating | Housing Color | Grade | Nema Receptacle Configuration | Grounding | Amps | Body Material | Color | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
8200-IGG | 15A | Gray | Hospital Grade Fed. Spec. | NEMA 5-15R | Isolated Ground | 15A | PBT Polyester Blend | Gray | €53.80 | |
 |
8200-IG | 15A | Orange | Hospital Grade Fed. Spec. | NEMA 5-15R | Isolated Ground | 15A | PBT Polyester Blend | - | €56.57 | |
 |
8200-IGR | 15A | Red | Hospital Grade Fed. Spec. | NEMA 5-15R | Isolated Ground | 15A | PBT Polyester Blend | Red | €60.58 | |
 |
8200-IGW | 15A | White | Hospital Grade Fed. Spec. | NEMA 5-15R | Isolated Ground | 15A | PBT Polyester Blend | White | €59.43 | |
 |
8300-IGB | 20A | Brown | Hospital Grade Fed. Spec. | NEMA 5-20R | Isolated Ground | 20A | PBT Polyester Blend | Brown | €82.96 | |
 |
8300-IGG | 20A | Gray | Hospital Grade Fed. Spec. | NEMA 5-20R | Isolated Ground | 20A | Nylon | Gray | €82.96 | |
 |
8300-IGI | 20A | Ivory | Hospital Grade Fed. Spec. | NEMA 5-20R | Isolated Ground | 20A | - | - | €73.56 |
