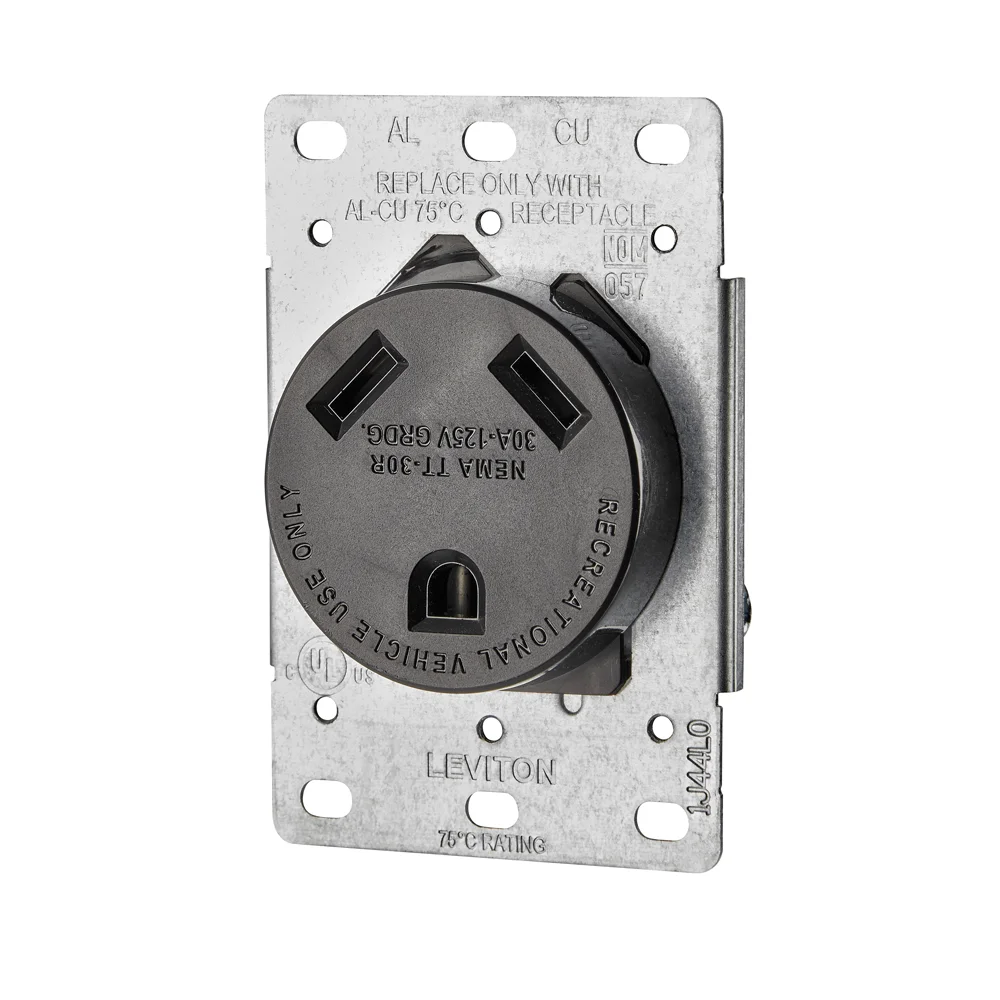

LEVITON 7313-S00 Straight Blade Receptacle, 125 VAC, 30 A, 2 Poles, 3 Wires, Black
Item: CR9JAFModel: 7313-S00Cross Ref: 792TY1
7 In Stock
Ships within 2 days via
5.00% off
€26.05 /unit
This product can only be shipped in multiples of 10Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Receptacle |
| Ac Hp Ratings At Rated Voltage | 2 hp |
| Amps | 30A |
| Body Material | Polypropylene |
| Color | Black |
| Connection Orientation | Straight |
| Contact Material | Copper Alloy |
| Cover Type | No Cover |
| Current Limiting | Full Rated Current |
| Current Rating | 30A |
| Dielectric Voltage | Withstands 2000V Per UL498 |
| Face Material | Polypropylene |
| Flammability | Rated V-2 Per UL 94 |
| Gfci | No |
| Grade | Federal Specification |
| Grounding | Grounded , Grounding |
| Housing Color | Black |
| Housing Material | Thermoplastic |
| Hp | 2 hp |
| Includes Mounting Hardware | Yes |
| Line Contacts Material | Brass |
| Line Contacts Style | Double Wipe |
| Max. Operating Temp. | 60°C |
| Maximum Operating Temperature | 140°F |
| Min. Operating Temp. | -40°C |
| Minimum Operating Temperature | -40°F |
| Mounting Hardware Included | Yes |
| Mounting Type | Flush |
| Nema Enclosure Rating | Not Rated |
| Nema Rating | NEMA WD-6 |
| Nema Receptacle Configuration | NEMA TT-30R |
| Number Of Outlets | 1 |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Operating Temp. | -40°C to +60°C |
| Phase | Single |
| Polarized | Yes |
| Product Datasheet | leviton-7313-s00.pdf |
| Receptacle Type | Single |
| Standards | Ansi C73, C22.2 No. 14, C22.2 No. 65, File E13399, Csa C22.2 No. 42, Nema Wd-6, Ul 486E, Ul 498 |
| Strap Finish | Galvanized |
| Strap Material | Steel |
| Temp. Rise | Max. 30°C After 50 Cycles Ol At 150 Percent Rated Current |
| Terminal Accom. | 4 AWG |
| Terminal Id | X (Brass Screw Or Black Screw)-Hot- Y (Brass Screw or Black Screw)-Hot- White (Silver Screw)-Neutral- Green (Green Screw)-Ground |
| Torque Range | 40 lbs.-in. |
| Ul 94 Flammability Rating | V-2 |
| Voltage | 125V AC |
| Voltage Rating | 125V AC |
| Wire Connection Location | Back |
| Wire Connection Type | Screw Terminals |
Shipping Info:
| Ship weight (kg) | 0.11 |
| Ship height (cm) | 13.34 |
| Ship length (cm) | 26.04 |
| Ship width (cm) | 2.54 |
| Country of Origin | MX |
Documentation:
Product Variants
| Product | Model | Receptacle Type | Wire Connection Type | Number Of Poles | Number Of Wires | Housing Color | Wire Connection Location | Phase | Current Rating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
15379-C | Single | Screw Terminals | 2 | 3 | White | Back | Single | 20A | €62.36 | |
 |
GFWR1-E | Decorator Duplex | Screw Terminals | 2 | 3 | Black | Back, Side | Single | 15A | €73.60 | |
 |
GFNT1 | Decorator Duplex | Screw Terminals | 2 | 3 | Brown | Side | Single | 15A | €45.43 | |
 |
GFNT1-T | Decorator Duplex | Screw Terminals | 2 | 3 | Light Almond | Back, Side | Single | 15A | €50.06 | |
 |
GFWR1-W | Decorator Duplex | Screw Terminals | 2 | 3 | White | Back, Side | Single | 15A | €69.27 | |
 |
GFWR2-E | Decorator Duplex | Screw Terminals | 2 | 3 | Black | Back, Side | Single | 20A | €75.21 | |
 |
GFNT2 | Decorator Duplex | Screw Terminals | 2 | 3 | Brown | Back, Side | Single | 20A | €42.47 |
