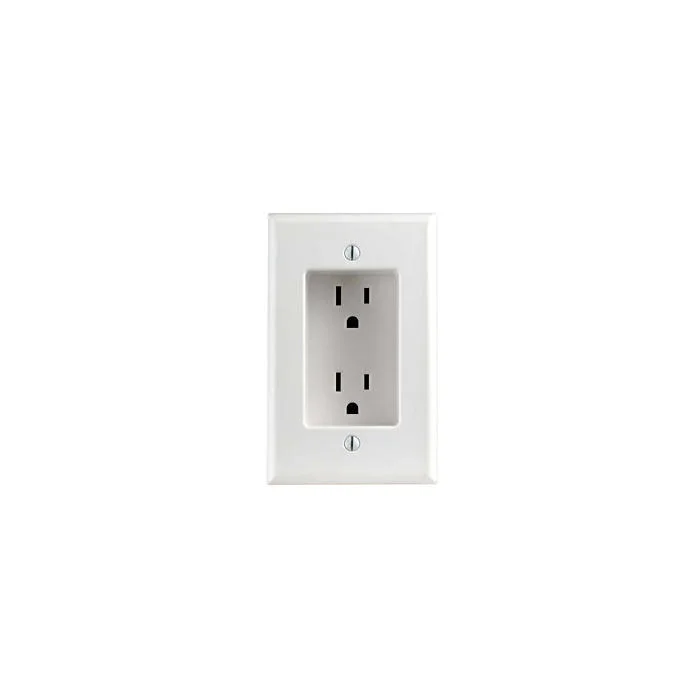

LEVITON 689-W Recessed Duplex Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, White
Item: CR9HUUModel: 689-WCross Ref: 792TX5
7 In Stock
Ships within 2 days via
5.00% off
€29.16 /unit
This product can only be shipped in multiples of 10Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Receptacle |
| Amps | 15A |
| Body Material | Thermoplastic |
| Color | White |
| Connection Orientation | Straight |
| Cover Type | No Cover |
| Gfci | No |
| Grade | General Use |
| Grounding | Non Grounded |
| Housing Color | White |
| Included Mounting Hardware | Yes |
| Mounting Hardware Included | Yes |
| Mounting Location | Panel Mount |
| Mounting Type | Recessed |
| Nema Enclosure Rating | Not Rated |
| Nema Receptacle Configuration | NEMA 5-15R |
| No. Of Gangs | 1 |
| No. Of Outlets | 2 |
| No. Of Poles | 2 |
| No. Of Wires | 3 |
| Phase | 1 |
| Polarized | No |
| Product Datasheet | leviton-689-w.pdf |
| Receptacle Type | Duplex |
| Standards | Culus Listed, Nom 057 Certified, Ul Listed |
| Torque | 14 lbs.-in. to 18 lbs.-in. |
| Voltage | 125V AC |
| Wire Connection Location | Back |
| Wire Connection Type | Screw Terminal |
Shipping Info:
| Ship weight (kg) | 0.12 |
| Ship height (cm) | 16.19 |
| Ship length (cm) | 26.35 |
| Ship width (cm) | 5.08 |
| Country of Origin | CN |
Documentation:
Product Variants
| Product | Model | Receptacle Type | Wire Connection Type | Housing Color | Wire Connection Location | Phase | Surge Protection | Voltage | Mounting Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
15379-C | Single | Screw Terminal | White | Back | 1 | - | 125V AC | Flush | €62.36 | |
 |
GFWR1-E | Decorator Duplex | Screw Terminal | Black | Back, Side | 1 | Yes | 125V AC | Flush | €73.60 | |
 |
GFNT1 | Decorator Duplex | Screw Terminal | Brown | Side | 1 | Yes | 125V AC | Flush | €45.43 | |
 |
GFNT1-T | Decorator Duplex | Screw Terminal | Light Almond | Back, Side | 1 | No | 125V AC | Flush | €50.06 | |
 |
GFWR1-W | Decorator Duplex | Screw Terminal | White | Back, Side | 1 | No | 125V AC | Flush | €69.27 | |
 |
GFWR2-E | Decorator Duplex | Screw Terminal | Black | Back, Side | 1 | No | 125V AC | Flush | €75.21 | |
 |
GFNT2 | Decorator Duplex | Screw Terminal | Brown | Back, Side | 1 | No | 125V AC | Flush | €42.47 |
