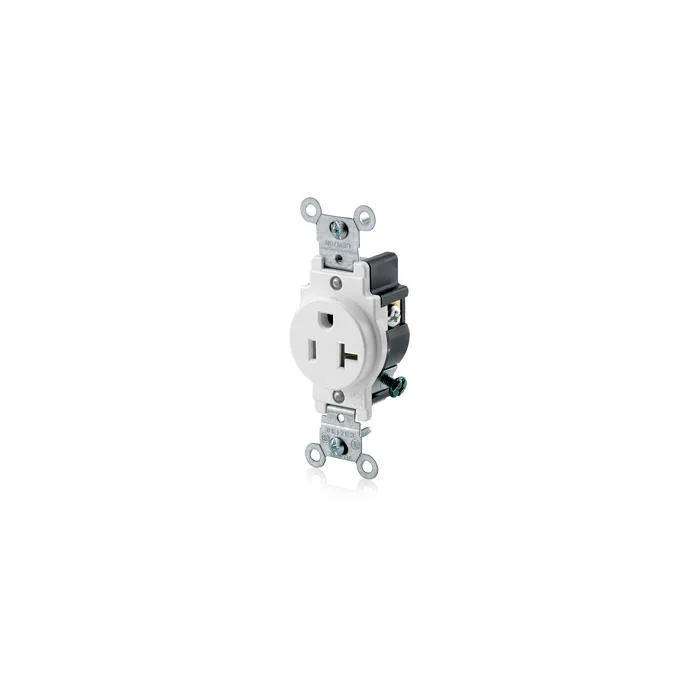

LEVITON 5801-W Receptacle, Single, 5-20R, 20 A, 125V AC, White, 2 Poles, Screw Terminals, Std Resist
Item: CR9JCQModel: 5801-WCross Ref: 792TW2
7 In Stock
Ships within 2 days via
10.00% off
€12.20 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Receptacle |
| Amps | 20A |
| Body Material | Nylon |
| Color | White |
| Connection Orientation | Straight |
| Contact Material | Brass |
| Cover Type | No Cover |
| Current Rating | 20A |
| Depth | 1.06" |
| Face Plate Height | 2.4" |
| Face Plate Width | 1.4" |
| Gfci | No |
| Grounding | Grounded |
| Housing Color | White |
| Housing Material | Nylon |
| Hp | 1 hp |
| Includes Mounting Hardware | Yes |
| Max. Operating Temp. | 60°C |
| Maximum Operating Temperature | 140°F |
| Maximum Wire Size | 10 AWG |
| Min. Operating Temp. | -40°C |
| Min. Wire Size | 14 AWG |
| Minimum Operating Temperature | -40°F |
| Mount Hole Center-to-center Height | 3.3" |
| Mounting Hardware Included | Yes |
| Mounting Type | Flush |
| Nema Enclosure Rating | Not Rated |
| Nema Receptacle Configuration | NEMA 5-20R |
| Number Of Outlets | 1 |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Overall Depth | 1.1" |
| Phase | Single |
| Polarized | Yes |
| Receptacle Type | Single |
| Ul 94 Flammability Rating | V-2 |
| Voltage | 125V AC |
| Voltage Rating | 125V AC |
| Wire Connection Location | Side |
| Wire Connection Type | Screw Terminals |
Shipping Info:
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 116.84 |
| Ship length (cm) | 40.64 |
| Ship width (cm) | 2.54 |
| Country of Origin | MX |
Product Variants
| Product | Model | Housing Color | Current Rating | Color | Nema Receptacle Configuration | Grounding | Face Plate Height | Mount Hole Center-to-center Height | Amps | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
5015-I | Ivory | - | Ivory | NEMA 5-15R | Grounded | 2 9/25" | 3 7/25" | 15A | €11.98 | |
 |

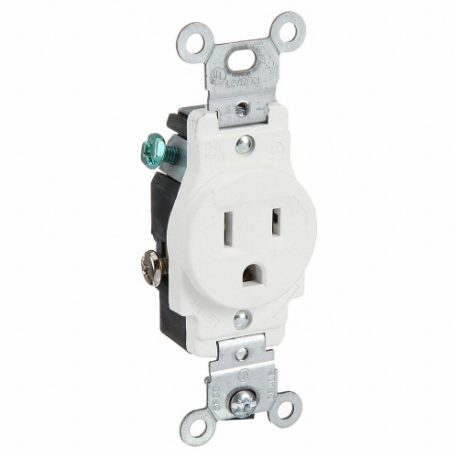

5015-W | White | 15A | White | NEMA 5-15R | Grounded | 2.4" | 3.3" | 15A | €11.47 | |
 |

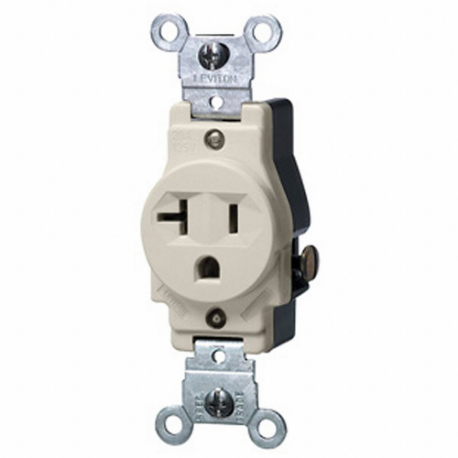

5801-T | Light Almond | - | Light Almond | NEMA 5-20R | Grounded | 2 9/25" | 3 7/25" | 20A | €12.51 | |
 |
5801-I | Ivory | 20A | Ivory | NEMA 5-20R | Grounded | 2.4" | 3.3" | 20A | €11.94 |
