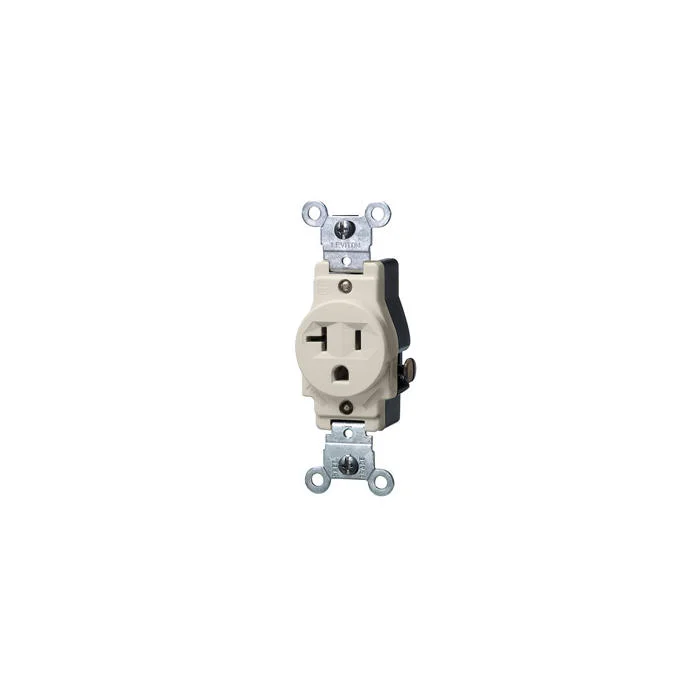

LEVITON 5801-T Straight Blade Single Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Light Almond, Nylon
Item: CR9HZQModel: 5801-TCross Ref: 792TW1
7 In Stock
Ships within 2 days via
5.00% off
€11.89 /unit
This product can only be shipped in multiples of 100Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Receptacle |
| Ac Hp Ratings At Rated Voltage | 1 hp |
| Amps | 20A |
| Body Material | Nylon |
| Color | Light Almond |
| Connection Orientation | Straight |
| Contact Material | Brass |
| Cover Type | No Cover |
| Current Limiting | Full Rated Current |
| Depth | 1.06" |
| Device Type | Single Receptacle Outlet |
| Dielectric Voltage | Withstands 2000V Per UL498 |
| Face Material | Nylon |
| Face Plate Height | 2 9/25" |
| Face Plate Width | 1.38" |
| Features | Smooth Face |
| Flammability | Rated V-2 Per UL 94 |
| Gfci | No |
| Grade | Commercial |
| Grounding | Grounded , Grounding |
| Grounding Screw Material | Brass |
| Grounding Screw Size | #8-32 |
| Housing Color | Light Almond |
| Hp | 1 hp |
| Line Contacts Material | Brass |
| Line Contacts Style | Double Wipe |
| Line Contacts Thickness | 0.031" |
| Max. Operating Temp. | 60°C |
| Min. Operating Temp. | -40°C |
| Min. Wire Size | 14 AWG |
| Mount Hole Center-to-center Height | 3 7/25" |
| Mounting Hardware Included | Yes |
| Mounting Type | Flush |
| Nema Rating | NEMA WD-2, NEMA WD-6 |
| Nema Receptacle Configuration | NEMA 5-20R |
| Number Of Outlets | 1 |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Operating Temp. | -40°C to +60°C |
| Polarized | Yes |
| Product Datasheet | leviton-5801-t.pdf |
| Receptacle Type | Single |
| Screw Terminal Torque | 14 lbs.-in. to 18 lbs.-in. |
| Strap Finish | Zinc Plated |
| Strap Material | Steel |
| Temp. Rise | Max. 30°C After 100 Cycles Ol At 150 Percent Rated Current |
| Terminal Accom. | 14 AWG to 10 AWG |
| Terminal Id | Brass Hot, Green Ground, Silver Neutral |
| Terminal Screws | Brass 8-32 |
| Termination | Side Wire |
| Voltage | 125V AC |
| Wire Connection Location | Side |
| Wire Connection Type | Screw Terminals |
Shipping Info:
| Ship weight (kg) | 0.06 |
| Ship height (cm) | 21.91 |
| Ship length (cm) | 30.8 |
| Ship width (cm) | 3.51 |
| Country of Origin | MX |
Documentation:
Product Variants
| Product | Model | Housing Color | Current Rating | Color | Nema Receptacle Configuration | Grounding | Face Plate Height | Mount Hole Center-to-center Height | Amps | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
5015-I | Ivory | - | Ivory | NEMA 5-15R | Grounded | 2 9/25" | 3 7/25" | 15A | €11.98 | |
 |
5015-W | White | 15A | White | NEMA 5-15R | Grounded | 2.4" | 3.3" | 15A | €11.47 | |
 |
5801-I | Ivory | 20A | Ivory | NEMA 5-20R | Grounded | 2.4" | 3.3" | 20A | €11.94 | |
 |

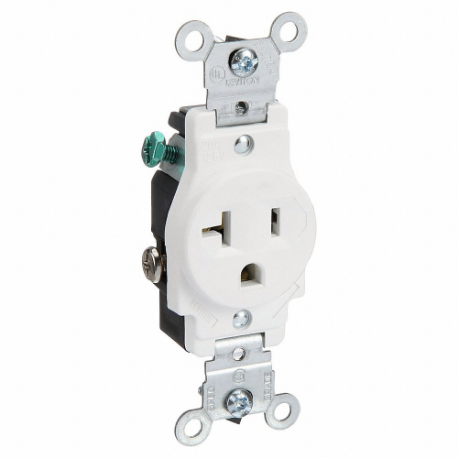

5801-W | White | 20A | White | NEMA 5-20R | Grounded | 2.4" | 3.3" | 20A | €13.55 |
